SSL-LXA228 Series

Manufacturer: Lumex Opto/Components Inc.

Catalog

LED RED CLR AXIAL SMD BOTTOM ENT

Part	Height (Max) [z]	Configuration	Lens Style	Voltage - Forward (Vf) (Typ)	Viewing Angle	Color	Lens Transparency	Wavelength - Peak	Supplier Device Package	Package / Case	Millicandela Rating	Lens Size [diameter]	Mounting Type	Current - Test	Lens Color	Size / Dimension [x]	Size / Dimension [y]	Height (Max) [z]	Height (Max) [Max] [z]

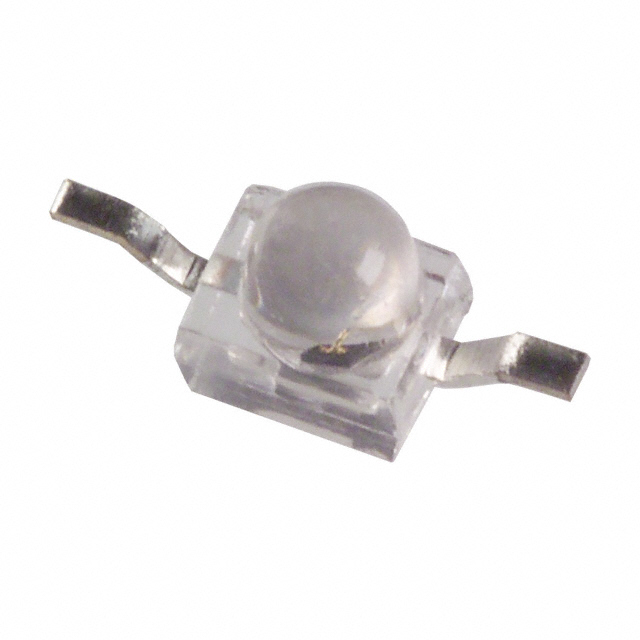

Lumex Opto/Components Inc. SSL-LXA228SRC-TR31	2.9 mm	Standard	Round with Domed Top	2 V	25 °	Red	Clear	660 nm	Axial	2-SMD Z-Bend	350 mcd	1.9 mm Dia	Surface Mount Bottom Entry	20 mA	Colorless	2.5 mm	2 mm
Lumex Opto/Components Inc. SSL-LXA228YC-TR21	2.9 mm	Standard	Round with Domed Top	2 V	25 °	Yellow	Clear	585 nm	Axial	2-SMD Yoke Bend	30 mcd	1.9 mm Dia	Surface Mount Bottom Entry	20 mA	Colorless	2.5 mm	2 mm

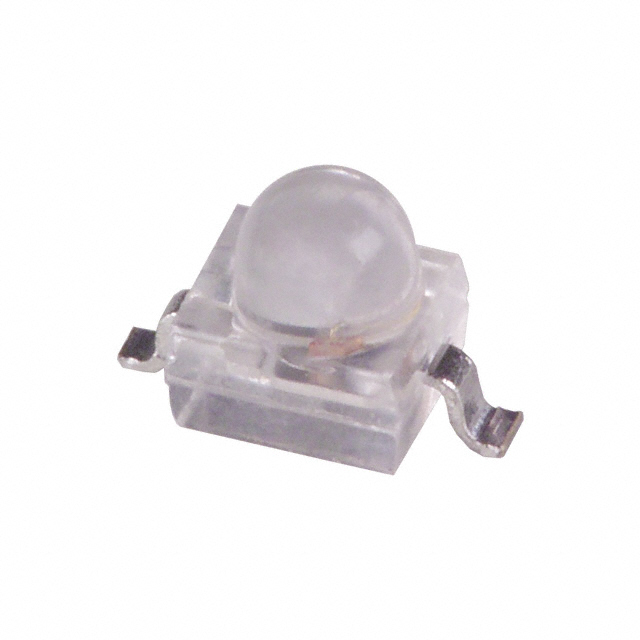

Lumex Opto/Components Inc. SSL-LXA228YC-TR11		Standard	Round with Domed Top	2.1 V	25 °	Yellow	Clear	585 nm	Axial	2-SMD Gull Wing	30 mcd	1.9 mm Dia	Surface Mount	20 mA	Colorless	2.5 mm	2 mm	3 mm
Lumex Opto/Components Inc. SSL-LXA228SYC-TR31	2.83 mm		Round with Domed Top	2.1 V	25 °	Yellow	Clear	590 nm		2-SMD Z-Bend	250 mcd	1.9 mm Dia	Surface Mount	20 mA	Colorless	2.5 mm	2 mm
Lumex Opto/Components Inc. SSL-LXA228SUGCTR11		Standard	Round with Domed Top	2.2 V	25 °	Green	Clear		Axial	2-SMD Gull Wing	200 mcd	1.9 mm Dia	Surface Mount	20 mA	Colorless	2.5 mm	2 mm	3 mm
Lumex Opto/Components Inc. SSL-LXA228GC-TR31	2.9 mm	Standard	Round with Domed Top	2.1 V	25 °	Green	Clear	565 nm	Z-Bend	2-SMD Z-Bend	30 mcd	1.9 mm Dia	Surface Mount Bottom Entry	20 mA	Colorless	2.5 mm	2 mm
Lumex Opto/Components Inc. SSL-LXA228USBCTR11		Standard	Round with Domed Top	3.5 V	25 °	Blue	Clear	470 nm	Axial	2-SMD Gull Wing	250 mcd	1.9 mm Dia	Surface Mount	20 mA	Colorless	2.5 mm	2 mm	3 mm

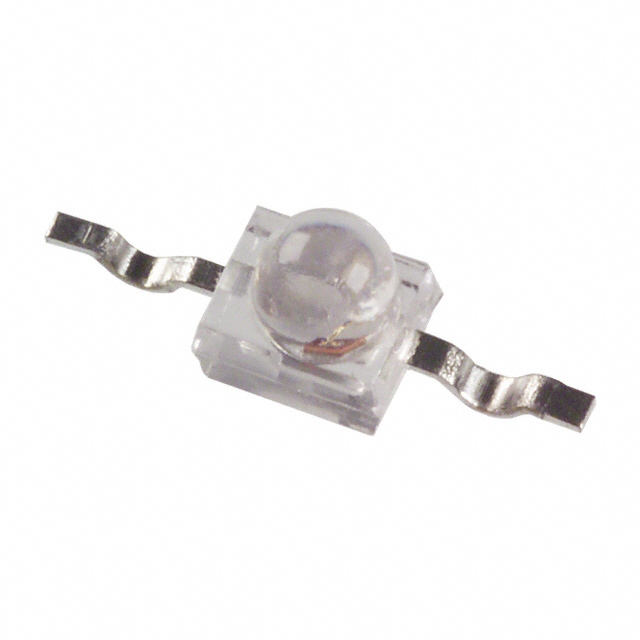

Lumex Opto/Components Inc. SSL-LXA228SRC-TR21	2.9 mm	Standard	Round with Domed Top	1.7 V	25 °	Red	Clear	660 nm	Axial	2-SMD Yoke Bend	600 mcd	1.9 mm Dia	Surface Mount Bottom Entry	20 mA	Colorless	2.5 mm	2 mm

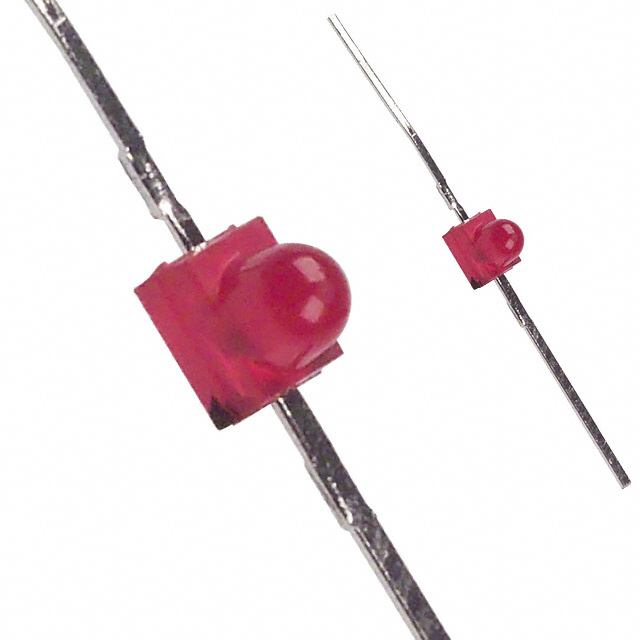

Lumex Opto/Components Inc. SSL-LXA228SRD	2.8 mm	Standard	Round with Domed Top	1.7 V	50 °	Red	Diffused	660 nm	Axial	Axial Flat Leads	150 mcd	1.9 mm Dia	Axial Through Hole	20 mA	Red	2.5 mm	2 mm
Lumex Opto/Components Inc. SSL-LXA228GC-FR5			Round with Domed Top	2.2 V	25 °	Green	Clear	565 nm	Axial	Axial	30 mcd	1.9 mm Dia	Through Hole	20 mA	Colorless	2.5 mm	2 mm		3.05 mm
