R4BBLKBL Series

Manufacturer: E-Switch

Catalog

SWITCH ROCKER SPST 20A 125V

Part	Electrical Life	Mechanical Life	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Actuator Type	Mounting Type	Illumination Voltage (Nominal)	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Color - Actuator/Cap	Termination Style	Switch Function	Actuator Marking	Circuit	Illumination Type, Color	Current Rating (Amps)	Illumination Type, Color [custom]	Illumination Type, Color [custom]
E-Switch R4BBLKBLKGRNFF3	6000 Cycles	30000 Steps	30.1 mm	11.1 mm	Concave (Curved) - Illuminated	Panel Mount Snap-In	12 VDC	125 V	55 °C	-20 ░C	UL	Black	Quick Connect - 0.250" (6.3mm)	On-Off	O -	SPST	Green Incandescent	20 A
E-Switch R4BBLKBLKYELEF4	6000 Cycles	30000 Steps	30.1 mm	11.1 mm	Concave (Curved) - Illuminated	Panel Mount Snap-In	24 V	125 V	55 °C	-20 ░C	UL	Black	Quick Connect - 0.250" (6.3mm)	On-Off	No Marking	SPST	Incandescent Yellow	20 A

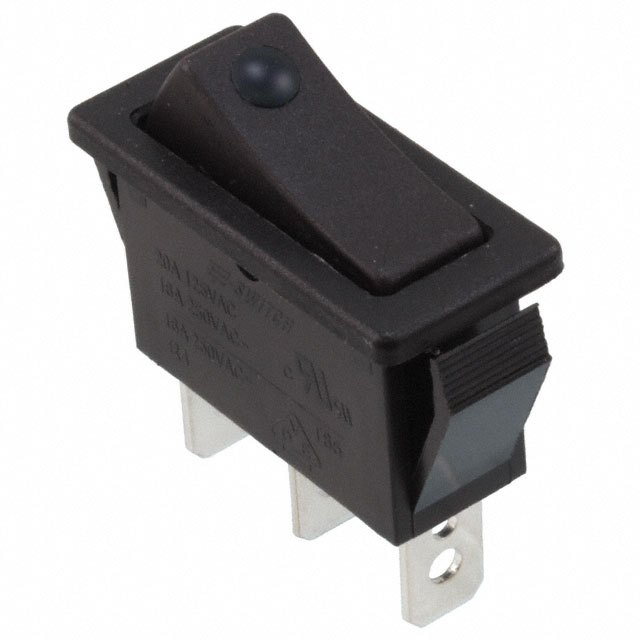

E-Switch R4BBLKBLKGRNEF1	6000 Cycles	30000 Steps	30.1 mm	11.1 mm	Concave (Curved) - Illuminated	Panel Mount Snap-In	125 VAC	125 V	55 °C	-20 ░C	UL	Black	Quick Connect - 0.250" (6.3mm)	On-Off	No Marking	SPST		20 A	Neon	Green

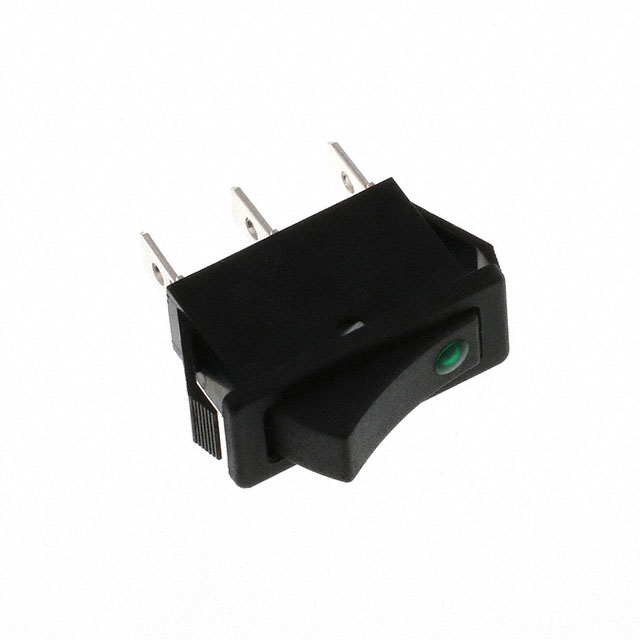

E-Switch R4BBLKBLKGRNEF3	6000 Cycles	30000 Steps	30.1 mm	11.1 mm	Concave (Curved) - Illuminated	Panel Mount Snap-In	12 VDC	125 V	55 °C	-20 ░C	UL	Black	Quick Connect - 0.250" (6.3mm)	On-Off	No Marking	SPST	Green Incandescent	20 A

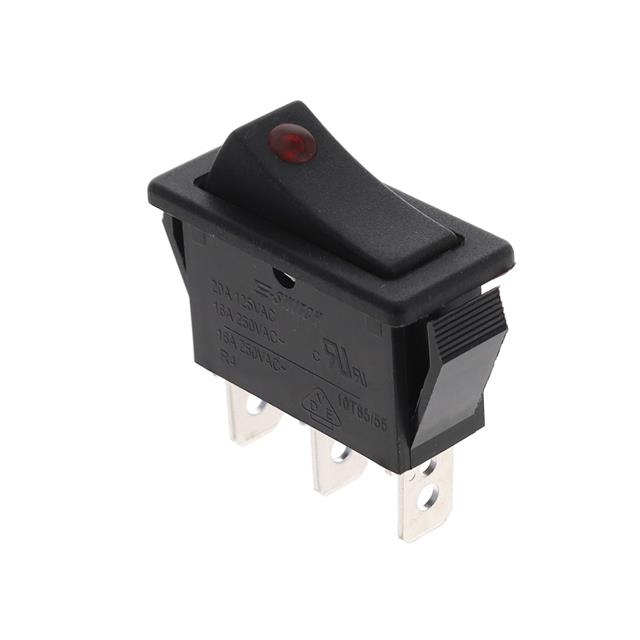

E-Switch R4BBLKBLKREDEF4	6000 Cycles	30000 Steps	30.1 mm	11.1 mm	Concave (Curved) - Illuminated	Panel Mount Snap-In	24 V	125 V	55 °C	-20 ░C	UL	Black	Quick Connect - 0.250" (6.3mm)	On-Off	Dot	SPST	Incandescent Red	20 A
E-Switch R4BBLKBLKGRNEF2	6000 Cycles	30000 Steps	30.1 mm	11.1 mm	Concave (Curved) - Illuminated	Panel Mount Snap-In	250 VAC	125 V	55 °C	-20 ░C	UL	Black	Quick Connect - 0.250" (6.3mm)	On-Off	No Marking	SPST		20 A	Neon	Green
