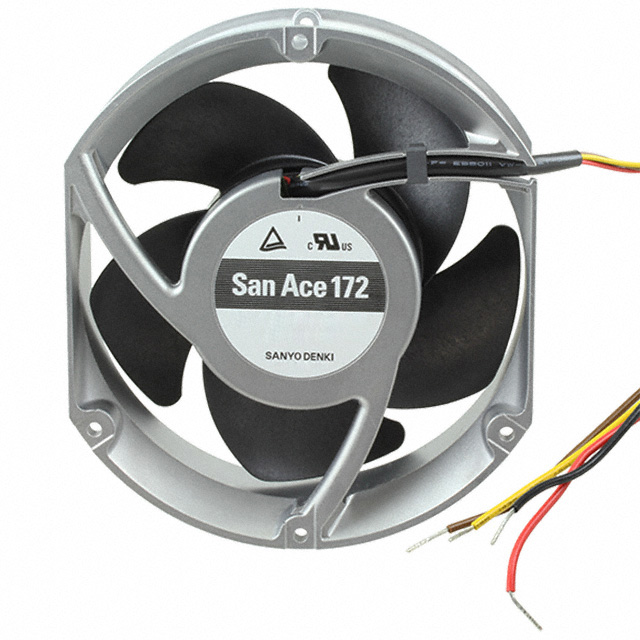

9SG5748 Series

Catalog

FAN AXIAL 172X51MM 48VDC WIRE

Part	Material - Frame	Material - Blade	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.	Air Flow	Air Flow	Voltage - Rated	Width [x]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	RPM	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Weight	Weight	Fan Type	Features	Power (Watts)	Termination	Approval Agency	Noise	Static Pressure	Static Pressure	Bearing Type
Sanyo Denki America Inc. 9SG5748P5G01	Aluminum	Plastic	2.91 A	72 VDC	36 VDC	40000 Hrs	15.29 m³/min	546 CFM	48 VDC	51 mm	60 °C	60 °C	-4 °F	-20 ░C	8600 RPM	Rectangular/Rounded	150 mm	172 mm	1.7 lbs	760 g	Tubeaxial	Locked Rotor Protection PWM Control Speed Sensor (Tach)	140 W	4 Wire Leads	cURus TUV	78 dB(A)	4.02 in H2O	1001.3 Pa	Ball

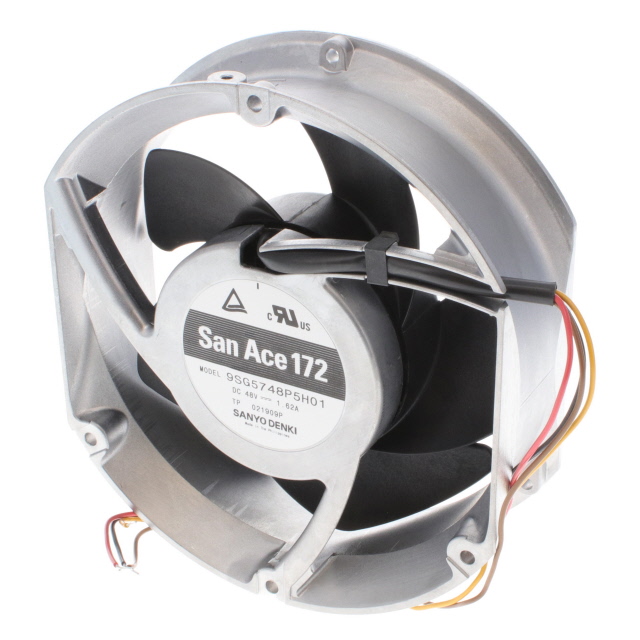

Sanyo Denki America Inc. 9SG5748P5H01	Aluminum	Plastic	1.62 A	72 VDC	36 VDC	40000 Hrs	11.48 m³/min	410 CFM	48 VDC	51 mm	60 °C	60 °C	-4 °F	-20 ░C	6500 RPM	Rectangular/Rounded	150 mm	172 mm	1.7 lbs	760 g	Tubeaxial	Locked Rotor Protection PWM Control Speed Sensor (Tach)	1.62 W	4 Wire Leads	cURus TUV	71 dB(A)	3.09 in H2O	769.7 Pa	Ball
