M4206 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

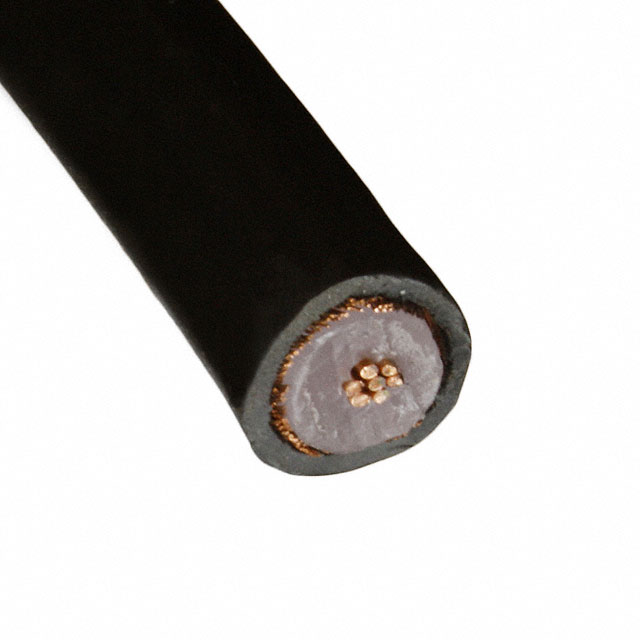

CABLE COAXIAL RG-8A 11AWG 1000'
| Part | Shield Material | Conductor Material | VoP, Velocity of Propagation | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Coverage | Shield Type | Wire Gauge | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Length [x] | Length [x] | Cable Type | Conductor Strand | Impedance | Jacket (Insulation) Material | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Bare | Copper Bare | 78 | 80 °C | -40 C | 0.285 in | 7.24 mm | 96 % | Braid | 11 | 4.6 mm² | 0.403 in | 10.24 mm | Black | 304.8 m | 1000 ft | Coaxial | 7 Strands 19 AWG | 50 Ohms | Poly-Vinyl Chloride (PVC) | RG-8A |
