SFB0412 Series

Catalog

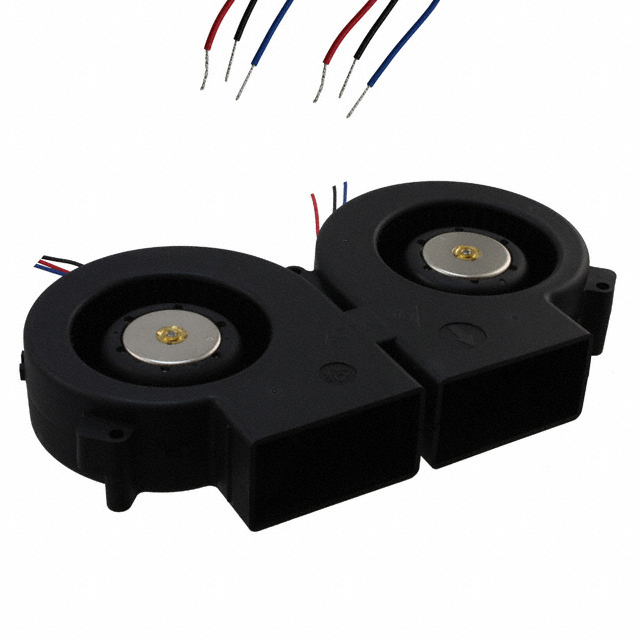

FAN BLOWER CF 196X33MM 12VDC

Part	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Current Rating (Amps)	Material - Blade	Lifetime @ Temp.	Noise	Fan Type	Static Pressure	Static Pressure	Termination	Bearing Type	Power (Watts)	Voltage - Rated	RPM	Width	Size / Dimension [x]	Size / Dimension	Size / Dimension [y]	Weight	Weight	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Air Flow	Air Flow	Features
Delta Electronics SFB0412VH	Plastic	7 V	12.6 VDC	4.6 A	Plastic	40 °C 50000 Hrs	67 dB	Blower Centrifugal (Dual)	671.1 Pa	2.694 in H2O	2 Wire Leads	Ball	55.2 W	12 VDC	5300 RPM	33 mm	196 mm	Rectangular/Rounded	109 mm	385.1 g	0.849 lb	CE CSA UL VDE	-10 °C	60 °C	91 CFM	2.55 m³/min
Delta Electronics SFB0412VH-F00	Plastic	7 V	12.6 VDC	4.6 A	Plastic	40 °C 50000 Hrs	67 dB	Blower Centrifugal (Dual)	671.1 Pa	2.694 in H2O	3 Wire Leads	Ball	55.2 W	12 VDC	5300 RPM	33 mm	196 mm	Rectangular/Rounded	109 mm	385.1 g	0.849 lb	CE CSA UL VDE	-10 °C	60 °C	91 CFM	2.55 m³/min	Speed Sensor (Tach)
