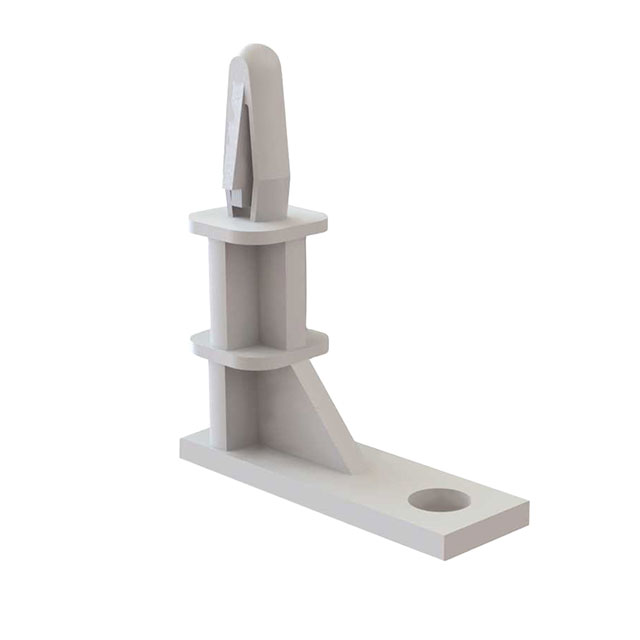

LCBS-L Series

Catalog

CBS LOCKING "L" TYPE 1/2"

Part	Material	Mounting Type	Holding Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Between Board Height	Between Board Height	Between Board Height	Support Hole Diameter	Support Hole Diameter	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness
Essentra Components LCBS-L-8-01	Nylon	Screw Mount	Snap Lock	3.5 mm	0.138 "	12.7 mm	0.5 in	0.5 in	0.126 in	3.2 mm	1.57 mm	0.062 in	0.0625 in
Essentra Components LCBS-L-5-01	Nylon	Screw Mount	Snap Lock	3.5 mm	0.138 "	7.62 mm		0.3 in	0.126 in	3.2 mm	1.57 mm	0.062 in	0.0625 in
Essentra Components LCBS-L-6-01	Nylon	Screw Mount	Snap Lock	3.5 mm	0.138 "	9.5 mm		0.374 in	0.126 in	3.2 mm	1.57 mm	0.062 in	0.0625 in
Essentra Components LCBS-L-9-01	Nylon	Screw Mount	Snap Lock	3.5 mm	0.138 "	14.3 mm	9 "	0.563 in	0.126 in	3.2 mm	1.57 mm	0.062 in	0.0625 in

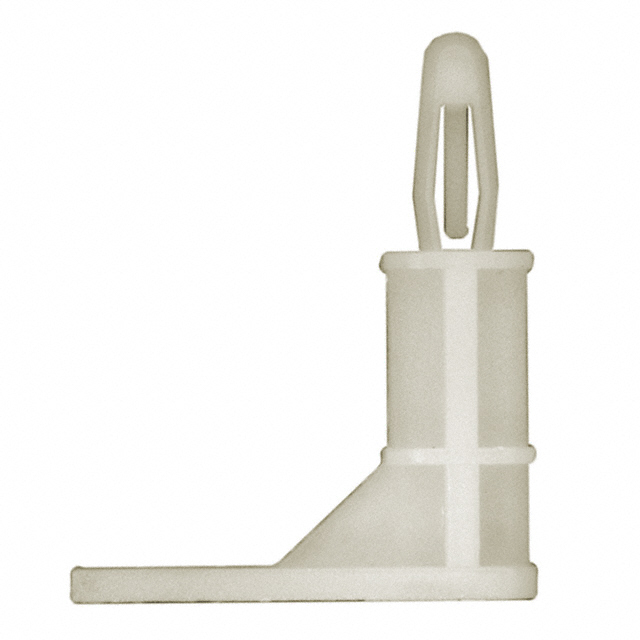

Essentra Components LCBS-L-10-01	Nylon	Screw Mount	Snap Lock	3.5 mm	0.138 "	15.88 mm	5 8	0.625 in	0.126 in	3.2 mm	1.57 mm	0.062 in	0.0625 in
