FGN.2M Series

Manufacturer: LEMO

Catalog

CONN PLUG MALE 10POS GOLD CRIMP

Part	Shell Finish	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Finish - Mating	Contact Material	Applications	Number of Positions	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Shell Material	Shielding	Shell Size - Insert	Fastening Type	Orientation	Primary Material	Ingress Protection	Features	Color	Cable Opening	Cable Opening	Mounting Type	Current Rating (Amps)	Termination	Insert Material	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]
LEMO FGN.2M.310.XLCT	Nickel	200 °C	-55 C	Plug Male Pins	Gold	Brass	Aerospace Automotive Aviation Military	10	39.4 µin	1 µm	Aluminum Alloy	Shielded	310	Threaded	N (Normal)	Metal	IP68 - Dust Tight Waterproof	Coupling Nut	Gray	13 mm	0.512 in	Free Hanging (In-Line)	8 A	Crimp	Polyetheretherketone (PEEK)
LEMO FGN.2M.308.XRCT6	Nickel	200 °C	-55 C	Plug Male Pins	Gold	Brass	Aerospace Automotive Aviation Military	8	39.4 µin	1 µm	Aluminum Alloy	Shielded	308	Threaded	N (Normal)	Metal	IP68 - Dust Tight Waterproof	Coupling Nut	Gray			Free Hanging (In-Line)	7 A 23 A	Crimp	Polyetheretherketone (PEEK)	0.256 in	13 mm	6.5 mm	0.512 in
LEMO FGN.2M.306.XRCT3	Nickel	200 °C	-55 C	Plug Male Pins	Gold	Brass	Aerospace Automotive Aviation Military	6	39.4 µin	1 µm	Aluminum Alloy	Shielded	306	Threaded	N (Normal)	Metal	IP68 - Dust Tight Waterproof	Coupling Nut	Gray			Free Hanging (In-Line)	10.5 A 18 A	Crimp	Polyetheretherketone (PEEK)	0.256 in	13 mm	6.5 mm	0.512 in
LEMO FGN.2M.310.XRC8	Nickel	200 °C	-55 C	Plug Male Pins	Gold	Brass	Aerospace Automotive Aviation Military	10	39.4 µin	1 µm	Aluminum Alloy	Shielded	310	Threaded	N (Normal)	Metal	IP68 - Dust Tight Waterproof	Coupling Nut	Gray			Free Hanging (In-Line)	6 A 23 A	Crimp	Polyetheretherketone (PEEK)	0.256 in	13 mm	6.5 mm	0.512 in
LEMO FGN.2M.310.XLCM	Nickel	200 °C	-55 C	Plug Male Pins	Gold	Brass	Aerospace Automotive Aviation Military	10	39.4 µin	1 µm	Aluminum Alloy	Shielded	310	Threaded	N (Normal)	Metal	IP68 - Dust Tight Waterproof	Coupling Nut	Gray			Free Hanging (In-Line)	8 A	Crimp	Polyetheretherketone (PEEK)
LEMO FGN.2M.312.XLCM	Nickel	200 °C	-55 C	Plug Male Pins	Gold	Brass	Aerospace Automotive Aviation Military	12	39.4 µin	1 µm	Aluminum Alloy	Shielded	312	Threaded	N (Normal)	Metal	IP68 - Dust Tight Waterproof	Coupling Nut	Gray			Free Hanging (In-Line)	7 A	Crimp	Polyetheretherketone (PEEK)
LEMO FGN.2M.319.XLC	Nickel	200 °C	-55 C	Plug Male Pins	Gold	Brass	Aerospace Automotive Aviation Military	19	39.4 µin	1 µm	Aluminum Alloy	Shielded	319	Threaded	N (Normal)	Metal	IP68 - Dust Tight Waterproof	Coupling Nut	Gray	13 mm	0.512 in	Free Hanging (In-Line)	4 A	Crimp	Polyetheretherketone (PEEK)

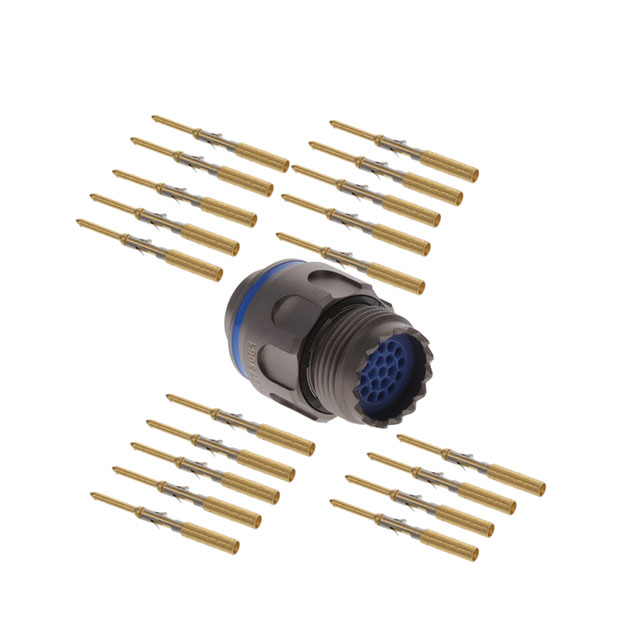

LEMO FGN.2M.319.XLCM	Nickel	200 °C	-55 C	Plug Male Pins	Gold	Brass	Aerospace Automotive Aviation Military	19	39.4 µin	1 µm	Aluminum Alloy	Shielded	319	Threaded	N (Normal)	Metal	IP68 - Dust Tight Waterproof	Coupling Nut	Gray			Free Hanging (In-Line)	4 A	Crimp	Polyetheretherketone (PEEK)

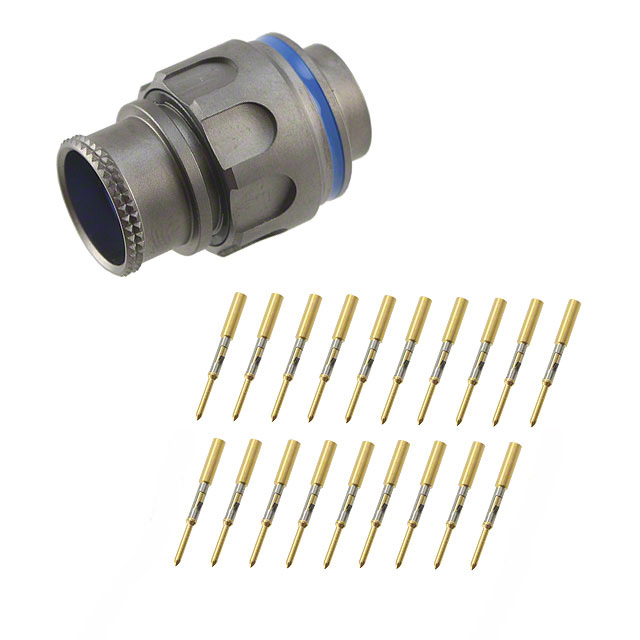

LEMO FGN.2M.319.XLCT	Nickel	200 °C	-55 C	Plug Male Pins	Gold	Brass	Aerospace Automotive Aviation Military	19	39.4 µin	1 µm	Aluminum Alloy	Shielded	319	Threaded	N (Normal)	Metal	IP68 - Dust Tight Waterproof	Coupling Nut	Gray	13 mm	0.512 in	Free Hanging (In-Line)	4 A	Crimp	Polyetheretherketone (PEEK)

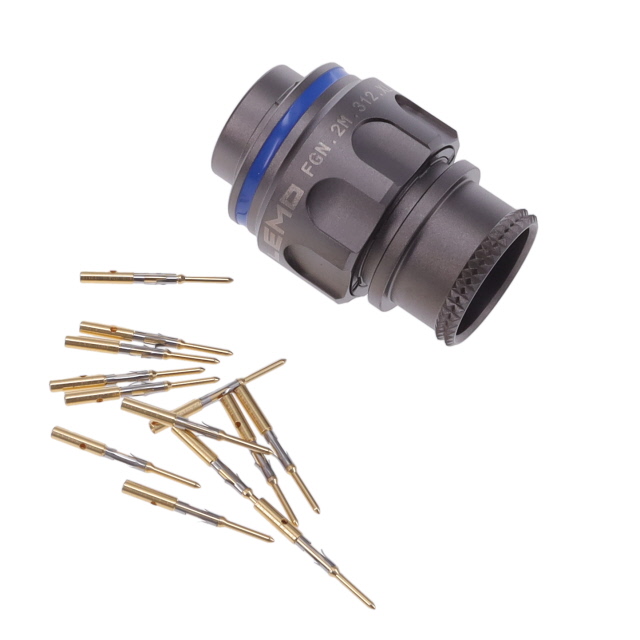

LEMO FGN.2M.312.XLCT	Nickel	200 °C	-55 C	Plug Male Pins	Gold	Brass	Aerospace Automotive Aviation Military	12	39.4 µin	1 µm	Aluminum Alloy	Shielded	312	Threaded	N (Normal)	Metal	IP68 - Dust Tight Waterproof	Coupling Nut	Gray	13 mm	0.512 in	Free Hanging (In-Line)	7 A	Crimp	Polyetheretherketone (PEEK)
