MT3S113 Series
Manufacturer: Toshiba Semiconductor and Storage
Beta
⌘K
RF TRANS NPN 5.3V 12.5GHZ SMINI
| Part | Mounting Type | Voltage - Collector Emitter Breakdown (Max) [Max] | Current - Collector (Ic) (Max) [Max] | DC Current Gain (hFE) (Min) @ Ic, Vce [Min] | Supplier Device Package | Operating Temperature | Noise Figure (dB Typ @ f) | Transistor Type | Frequency - Transition | Package / Case | Power - Max [Max] | Gain |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Toshiba Semiconductor and Storage | Surface Mount | 5.3 V | 100 mA | 200 | S-Mini | 150 °C | 1.45 dB | NPN | 12.5 GHz | SC-59 SOT-23-3 TO-236-3 | 800 mW | 11.8 dB |

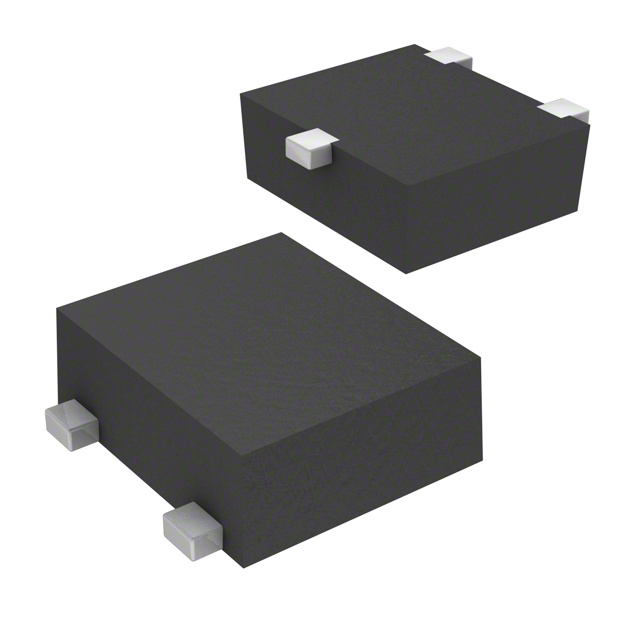

 Toshiba Semiconductor and Storage | Surface Mount | 5.3 V | 100 mA | 200 | UFM | 150 °C | 1.45 dB | NPN | 11.2 GHz | 900 mW | 12.5 dBi |
