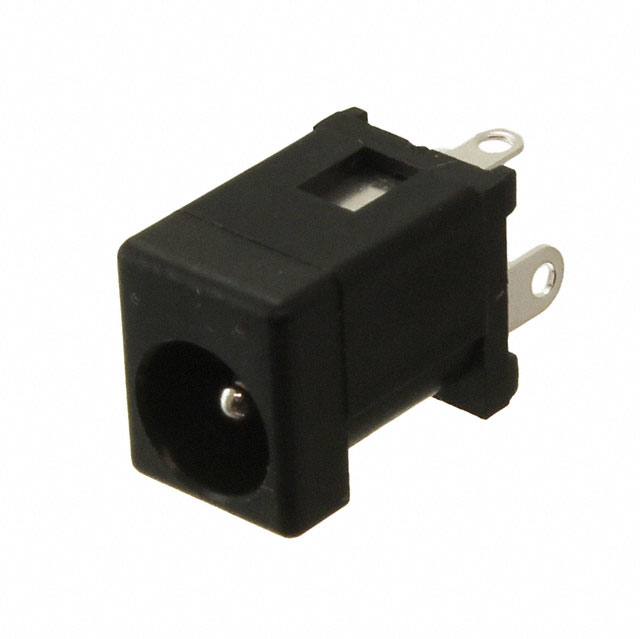

ADC-H-010 Series
Manufacturer: Adam Tech
Beta
⌘K
DC POWER JACK
| Part | Contact Material - Plating | Body Color | Contact Material | Housing Material | Current Rating (Amps) | Mounting Type | Actual Diameter [diameter] | Actual Diameter [diameter] | Insulation Color | Shielding | Internal Switch(s) | Industry Recognized Mating Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Gender | Termination | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Mating Length/Depth | Mating Length/Depth | Voltage - Rated | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Silver | Black | Copper Alloy | Polybutylene Terephthalate (PBT) | 5 A | Through Hole | 0.118 in 0.252 in | 3 mm 6.4 mm | Black | Unshielded | Single Switch Normally Closed | 0.118 in 0.217 in 3 mm 5.5 mm | -20 ░C | 70 °C | Jack | Male | Solder Eyelet(s) | 2 | 3 | 7.5 mm | 0.295 in | 12 VDC | UL94 V-0 |
