6364 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

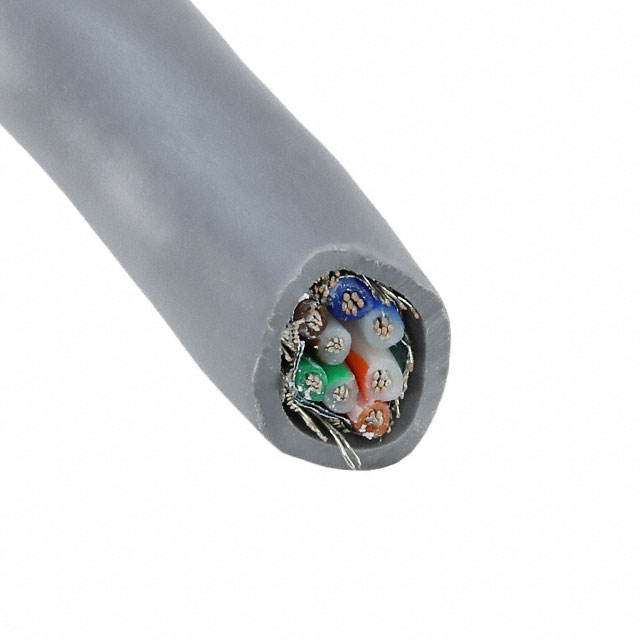

MULTIPAIR CABLE, COMMUNICATION, SHIELDED, 4 PAIR, 24 AWG, 0.23 MM², 100 FT, 30.5 M
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Material | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Ratings | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Usage | Jacket Color | Conductor Material | Length [x] | Length [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Number of Conductors | Wire Gauge | Features | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | Poly-Vinyl Chloride (PVC) | Braid Foil | 7 | 32 AWG | 80 °C | -20 ░C | Multi-Pair | UL Style 2464 | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | Communication Control | Slate | Copper Tinned | 100 ft | 30.5 m | 6.73 mm | 0.265 in | 300 VDC | 8 | 24 AWG | Drain Wire | ||
ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | Poly-Vinyl Chloride (PVC) | Braid Foil | 7 | 32 AWG | 80 °C | -20 ░C | Multi-Pair | UL Style 2464 | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | Slate | Copper Tinned | 6.73 mm | 0.265 in | 300 VDC | 8 | 24 AWG | Drain Wire | 152.4 m | 500 ft |
