3312 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

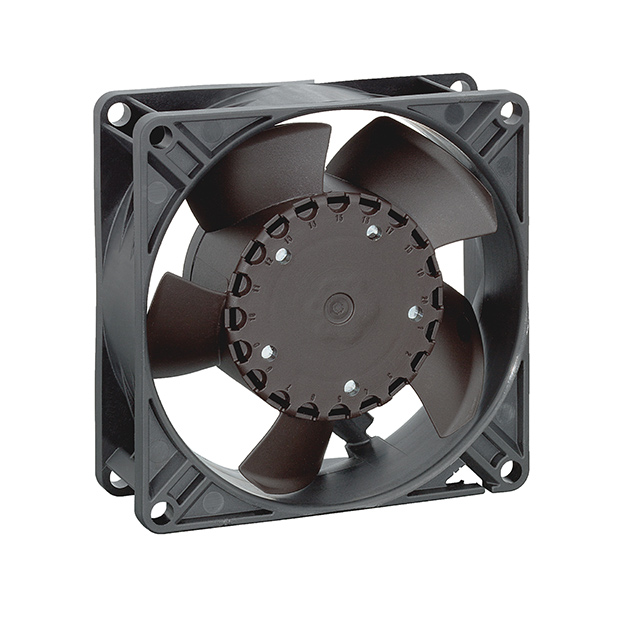

FAN AXIAL 92X32MM 12VDC WIRE
| Part | Air Flow | Air Flow | Material - Blade | Material - Frame | Voltage Range [Min] | Voltage Range [Max] | Lifetime @ Temp. | Operating Temperature [Min] | Operating Temperature [Max] | Fan Type | Noise | Bearing Type | Termination | Voltage - Rated | Approval Agency | Size / Dimension [y] | Size / Dimension [x] | Width [y] | Power (Watts) | Weight | Weight | Features | RPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 1.51 m³/min | 54 CFM | Polyamide (PA) Nylon Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 6 VDC | 15 V | 65000 Hrs | -4 °F | 167 °F | Tubeaxial | 38 dB(A) | Ball | 2 Wire Leads | 12 VDC | UL | 92 mm | 92 mm | 32 mm | 2.8 W | 190.06 g | 0.419 lb | ||
 ebm-papst Inc. | 1.32 m³/min | 47.1 CFM | Polyamide (PA) Nylon Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 6 VDC | 15 V | 70000 Hrs | -4 °F | 167 °F | Tubeaxial | 37 dB | Ball | 3 Wire Leads | 12 VDC | 92 mm | 92 mm | 32 mm | 2.4 W | Speed Sensor (Tach) | 3000 RPM |
