SHBC10 Series
Manufacturer: KEMET
Beta
⌘K

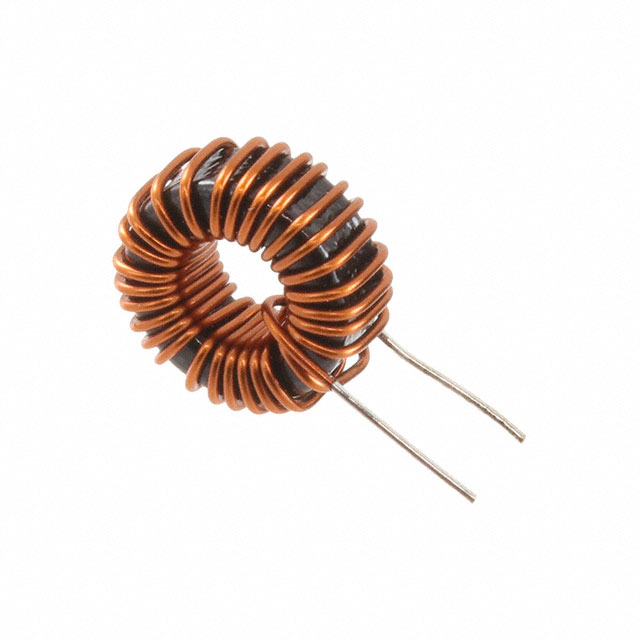

TOROIDAL INDUCTOR, SHBC SERIES, 107 µH, 3 A, 0.053 OHM, ± 20%
| Part | Supplier Device Package | Inductance Frequency - Test | DC Resistance (DCR) [Max] | Current Rating (Amps) | Height - Seated (Max) [Max] [custom] | Height - Seated (Max) [Max] [custom] | Mounting Type | Tolerance | Operating Temperature [Max] | Operating Temperature [Min] | Type | Material - Core | Package / Case | Inductance | Shielding | Size / Dimension [diameter] | Size / Dimension [diameter] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | Radial | 100 kHz | 53 mOhm | 3 A | 0.866 in | 22 mm | Through Hole | 20 % | 125 °C | -40 C | Toroidal | Alloy Powder | Radial Vertical (Open) | 107 µH | Unshielded | 0.866 " | 22 mm | ||
KEMET | Radial | 100 kHz | 42.3 mOhm | 3 A | Through Hole | 20 % | 125 °C | -40 C | Toroidal | Alloy Powder | Radial Vertical (Open) | 68 µH | Unshielded | 0.846 in | 21.5 mm | 0.846 " | 21.5 mm |
