96570 Series

Manufacturer: Pflitsch

Catalog

CABLE FEEDTHR 5.08-7.62MM M12

Part	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Panel Hole Size	Panel Hole Size	Material	Type	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Color	Ingress Protection	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Includes	Thread Length	Thread Length	Panel Hole Size [diameter]	Panel Hole Size [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max)

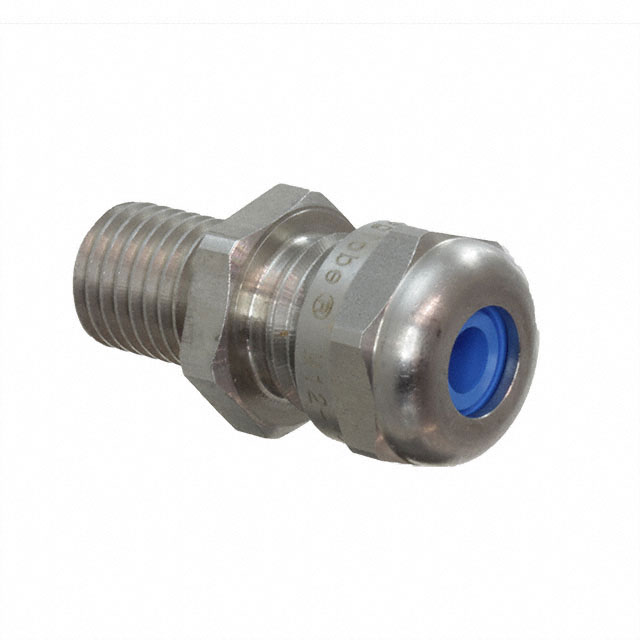

Pflitsch 96570.7/15	500 °C	-60 °C	M12x1.5	0.47 in	11.9 mm	Stainless Steel	Cable Feedthrough	7.62 mm	0.3 in	Silver	IP68 - Dust Tight Waterproof NEMA 4X	5.08 mm	0.2 in	Sealing Ring

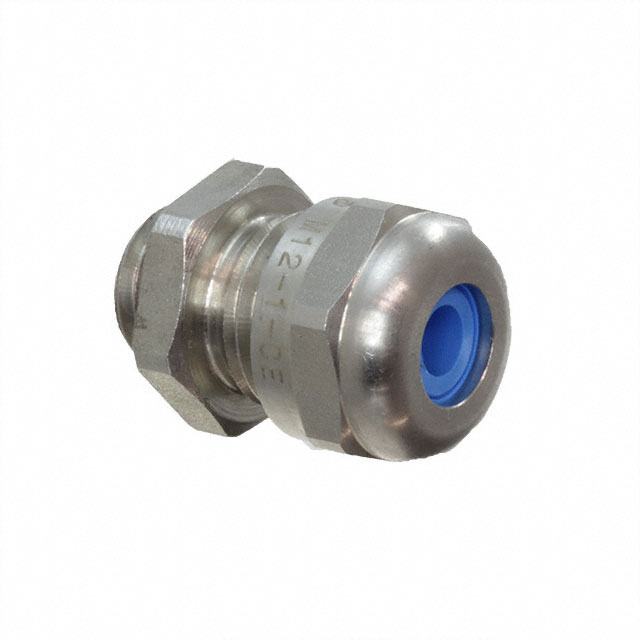

Pflitsch 96570.7	500 °C	-60 °C	M12x1.5	0.47 in	11.9 mm	Stainless Steel	Cable Feedthrough	7.62 mm	0.3 in	Silver	IP68 - Dust Tight Waterproof NEMA 4X	5.08 mm	0.2 in	Sealing Ring	5.08 mm	0.2 in
Pflitsch 96570.6	300 °C	-40 C	M12x1.5	0.47 in	11.9 mm	Brass Nickel Plated	Cable Feedthrough	7.62 mm	0.3 in	Silver	IP68 - Dust Tight Waterproof NEMA 4X	5.08 mm	0.2 in	Sealing Ring	5.08 mm	0.2 in

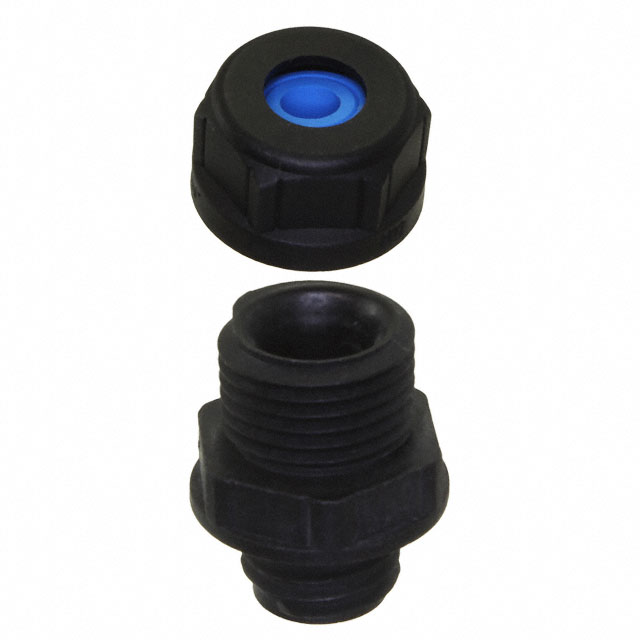

Pflitsch 96570.1	100 °C	-20 ░C	M12x1.5	0.47 in	11.9 mm	Polyamide (PA) Nylon	Cable Feedthrough	7.62 mm	0.3 in	Black	IP68 - Dust Tight Waterproof NEMA 4X	5.08 mm	0.2 in		5.08 mm	0.2 in
Pflitsch 96570.6/15	300 °C	-40 C	M12x1.5			Brass Nickel Plated	Cable Feedthrough			Silver		2 mm	0.079 in	Sealing Ring			12 mm	0.472 in	0.295 in	7.5 mm
