1969595 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

HSG,REC,FREE-HANGING,GWT,DUALROW,EP2.5

Part	Insulation Material	Mounting Type	Number of Positions	Connector Type	Number of Rows	Contact Type	Color	Row Spacing	Row Spacing	Note	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Contact Termination	Number of Positions
TE Connectivity Raychem Cable Protection 1-1969595-4	Nylon Polyamide (PA)	Panel Mount Snap-In	14	Receptacle	2	Male Pin	Natural	0.098 in	2.5 mm	Contacts Not Included	Latch Holder	105 ░C	-55 °C	0.098 in	2.5 mm	Crimp
TE Connectivity Raychem Cable Protection 3-1969595-6	Nylon Polyamide (PA)	Panel Mount Snap-In	36	Receptacle	2	Male Pin	Natural	0.098 in	2.5 mm	Contacts Not Included	Latch Holder	105 ░C	-55 °C	0.098 in	2.5 mm	Crimp

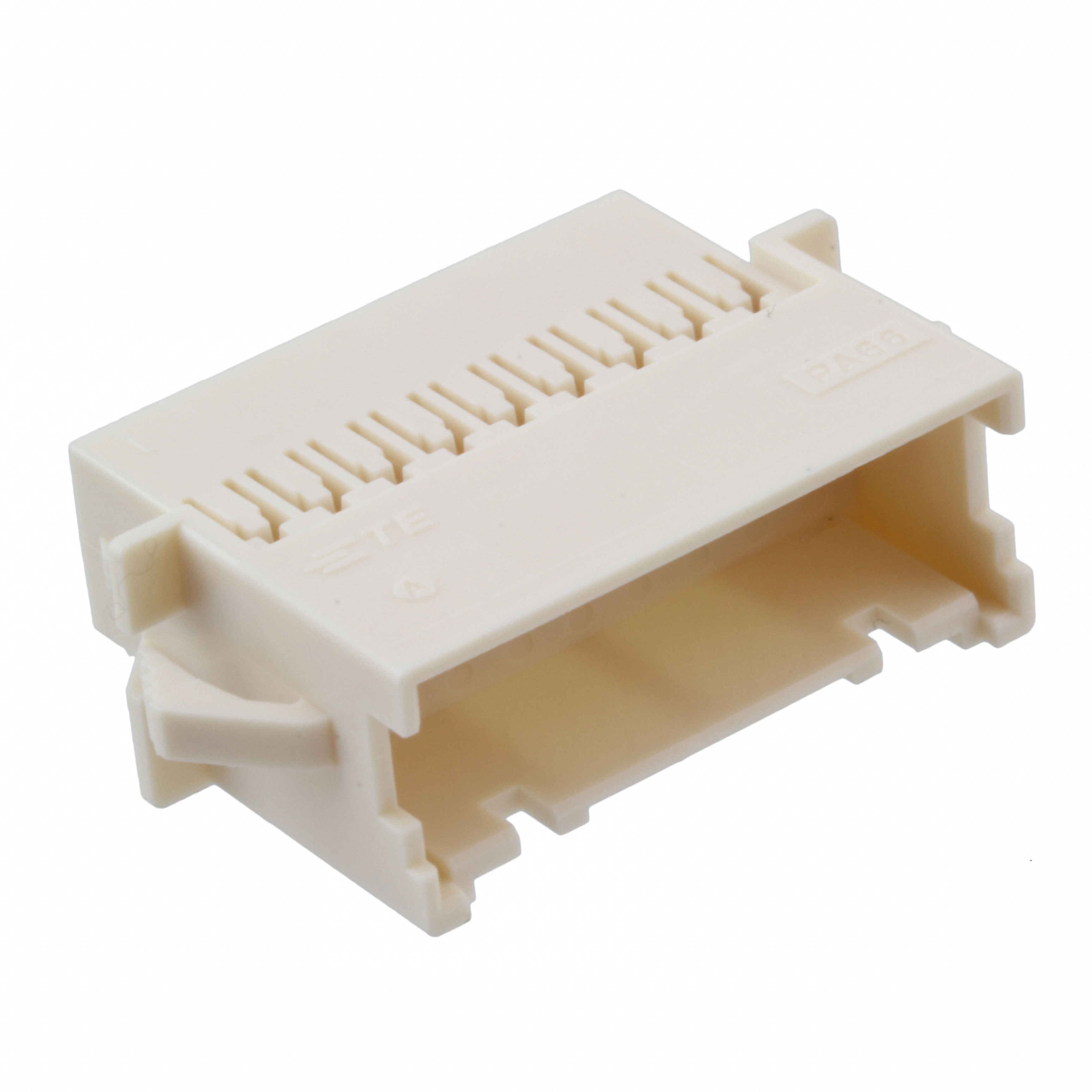

TE Connectivity Raychem Cable Protection 1-1969595-8	Nylon Polyamide (PA)	Panel Mount Snap-In	18	Receptacle	2	Male Pin	Natural	0.098 in	2.5 mm	Contacts Not Included	Latch Holder	105 ░C	-55 °C	0.098 in	2.5 mm	Crimp
TE Connectivity Raychem Cable Protection 1-1969595-6	Nylon Polyamide (PA)	Panel Mount Snap-In		Receptacle	2	Male Pin	Natural	0.098 in	2.5 mm	Contacts Not Included	Latch Holder	105 ░C	-55 °C	0.098 in	2.5 mm	Crimp	16

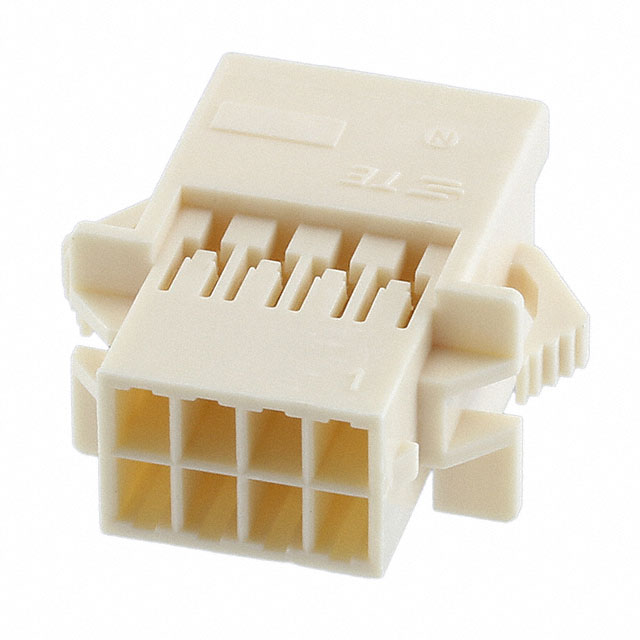

TE Connectivity Raychem Cable Protection 1969595-8	Nylon Polyamide (PA)	Panel Mount Snap-In	8	Receptacle	2	Male Pin	Natural	0.098 in	2.5 mm	Contacts Not Included	Latch Holder	105 ░C	-55 °C	0.098 in	2.5 mm	Crimp
TE Connectivity Raychem Cable Protection 3-1969595-2	Nylon Polyamide (PA)	Panel Mount Snap-In		Receptacle	2	Male Pin	Natural	0.098 in	2.5 mm	Contacts Not Included	Latch Holder	105 ░C	-55 °C	0.098 in	2.5 mm	Crimp
TE Connectivity Raychem Cable Protection 2-1969595-8	Nylon Polyamide (PA)	Panel Mount Snap-In	28	Receptacle	2	Male Pin	Natural	0.098 in	2.5 mm	Contacts Not Included	Latch Holder	105 ░C	-55 °C	0.098 in	2.5 mm	Crimp

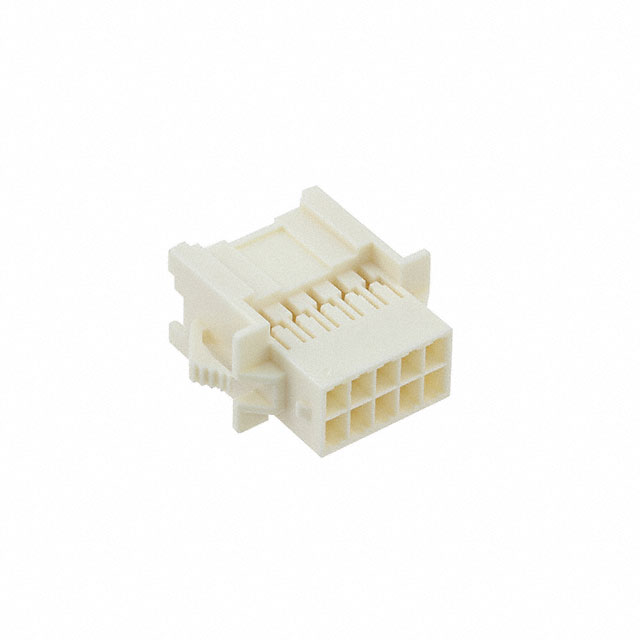

TE Connectivity Raychem Cable Protection 1-1969595-0	Nylon Polyamide (PA)	Panel Mount Snap-In	10	Receptacle	2	Male Pin	Natural	0.098 in	2.5 mm	Contacts Not Included	Latch Holder	105 ░C	-55 °C	0.098 in	2.5 mm	Crimp
