L77DC37 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

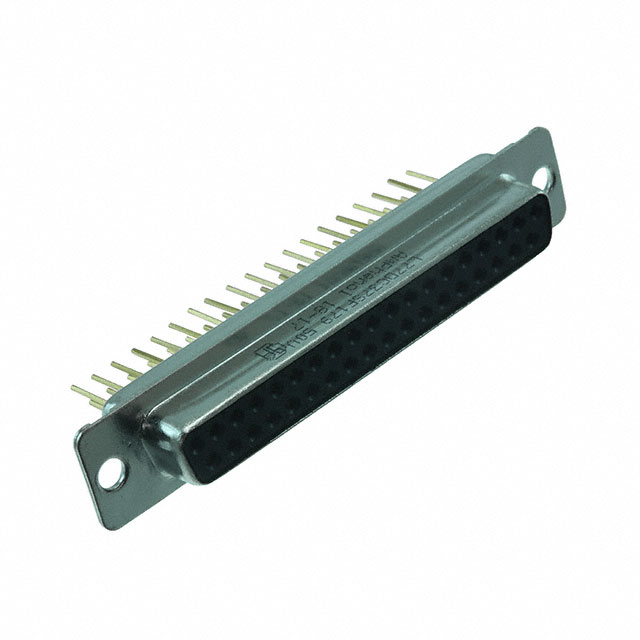

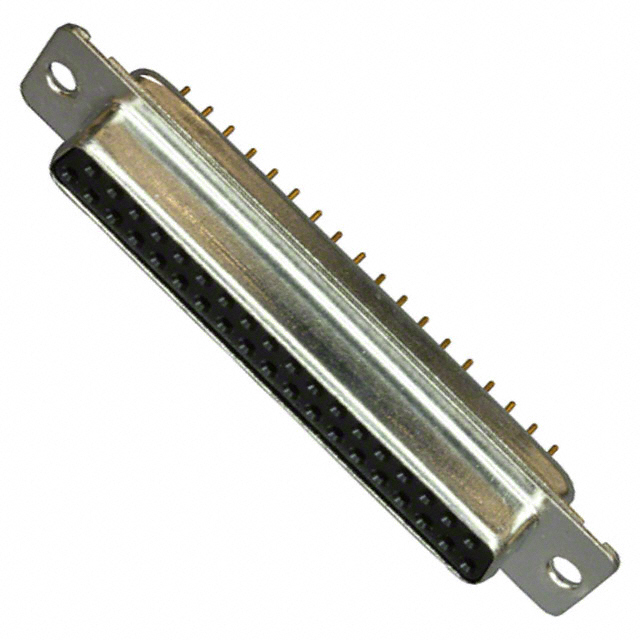

CONN D-SUB RCPT 37POS VERT SLDR
| Part | Contact Material | Color | Dielectric Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Current Rating (Amps) | Termination | Contact Finish | Mounting Type | Number of Positions | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Connector Style | Shell Size, Connector Layout | Shell Size, Connector Layout | Contact Type | Material Flammability Rating | Number of Rows [custom] | Backset Spacing | Backset Spacing | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Brass | Black | Thermoplastic Glass Filled | 300 VDC | -55 C | 125 °C | Housing/Shell (Unthreaded) | 7.5 A | Solder | Gold | Through Hole | 37 | Receptacle Female Sockets | 0.203 çm | 8 µin | D-Sub | 4 | DC C | Signal | UL94 V-0 | 2 | |||
 Amphenol ICC (Commercial Products) | Brass | Black | Thermoplastic Glass Filled | 300 VDC | -55 C | 125 °C | Housing/Shell (Unthreaded) | 7.5 A | Solder | Gold | Right Angle Through Hole | 37 | Receptacle Female Sockets | 0.203 çm | 8 µin | D-Sub | 4 | DC C | Signal | UL94 V-0 | 2 | 10.3 mm | 0.406 in | |
Amphenol ICC (Commercial Products) | Brass | Black | Thermoplastic Glass Filled | 300 VDC | -55 C | 125 °C | Housing/Shell (Unthreaded) | 7.5 A | Solder | Gold | Right Angle Through Hole | 37 | Receptacle Female Sockets | 0.203 çm | 8 µin | D-Sub | 4 | DC C | Signal | UL94 V-0 | 2 | 14.99 mm | 0.59 in | Mounting Brackets |
Amphenol ICC (Commercial Products) | Brass | Black | Thermoplastic Glass Filled | 300 VDC | -55 C | 125 °C | Housing/Shell (Unthreaded) | 7.5 A | Solder | Gold | Through Hole | 37 | Receptacle Female Sockets | 0.203 çm | 8 µin | D-Sub | 4 | DC C | Signal | UL94 V-0 | 2 | |||
Amphenol ICC (Commercial Products) | Brass | Black | Thermoplastic Glass Filled | 300 VDC | -55 C | 125 °C | 4-40 Mating Side Female Screwlock | 7.5 A | Solder | Gold | Through Hole | 37 | Receptacle Female Sockets | 0.203 çm | 8 µin | D-Sub | 4 | DC C | Signal | UL94 V-0 | 2 | |||
 Amphenol ICC (Commercial Products) | Brass | Black | Thermoplastic Glass Filled | 300 VDC | -55 C | 125 °C | Housing/Shell (Unthreaded) | 7.5 A | Solder | Gold | Through Hole | 37 | Receptacle Female Sockets | 0.203 çm | 8 µin | D-Sub | 4 | DC C | Signal | UL94 V-0 | 2 | |||
Amphenol ICC (Commercial Products) | Brass | Black | Thermoplastic Glass Filled | 300 VDC | -55 C | 125 °C | Housing/Shell (Unthreaded) | 7.5 A | Solder | Gold | Through Hole | 37 | Receptacle Female Sockets | 0.203 çm | 8 µin | D-Sub | 4 | DC C | Signal | UL94 V-0 | 2 | Board Lock | ||
 Amphenol ICC (Commercial Products) | Brass | Black | Thermoplastic Glass Filled | 300 VDC | -55 C | 125 °C | Housing/Shell (Unthreaded) | 7.5 A | Wire Wrap | Gold | Panel Mount Through Hole | 37 | Receptacle Female Sockets | 0.203 çm | 8 µin | D-Sub | 4 | DC C | Signal | UL94 V-0 | 2 | |||
 Amphenol ICC (Commercial Products) | Brass | Black | Thermoplastic Glass Filled | 300 VDC | -55 C | 125 °C | Housing/Shell (Unthreaded) | 7.5 A | Solder | Gold | Through Hole | 37 | Receptacle Female Sockets | 0.203 çm | 8 µin | D-Sub | 4 | DC C | Signal | UL94 V-0 | 2 | |||
Amphenol ICC (Commercial Products) | Brass | Black | Thermoplastic Glass Filled | 300 VDC | -55 C | 125 °C | Housing/Shell (Unthreaded) | 7.5 A | Solder | Gold | Right Angle Through Hole | 37 | Receptacle Female Sockets | 0.203 çm | 8 µin | D-Sub | 4 | DC C | Signal | UL94 V-0 | 2 | 10.3 mm | 0.406 in |
