R11472 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

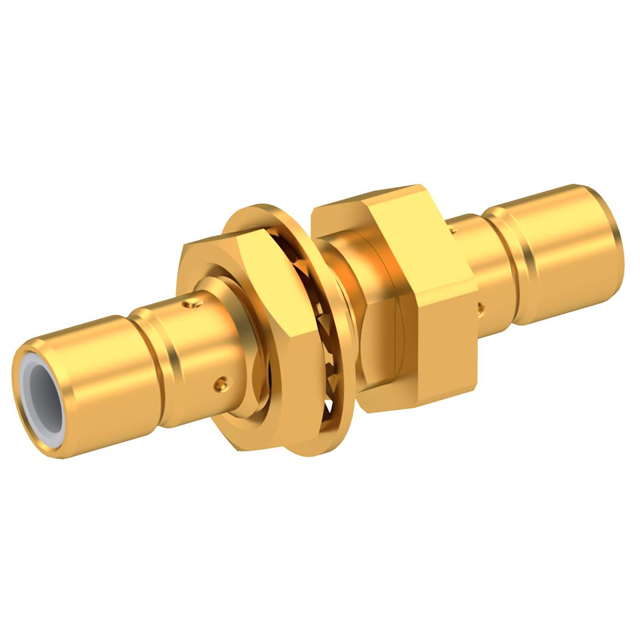

SMB / BULKHEAD MALE-MALE ADAPTER
| Part | Body Finish | Center Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Material | Mating Cycles | Frequency - Max [Max] | Adapter Type | Conversion Type | Fastening Type | Fastening Type | Convert To (Adapter End) | Impedance | Center Contact Plating | Adapter Series | Mounting Feature | Center Gender | Mounting Type | Convert From (Adapter End) | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Brass | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Brass | 500 | 4 GHz | Jack to Jack | Same Series | Snap-On | Snap-On | SMB Jack Male Pin | 50 Ohms | Gold | SMB to SMB | Bulkhead | Male to Male | Panel Mount | Male Pin SMB Jack | Straight |
 Radiall USA, Inc. | Gold | Brass | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Brass | 500 | 4 GHz | Jack to Jack | Same Series | Snap-On | Snap-On | SMB Jack Male Pin | 50 Ohms | Gold | SMB to SMB | Bulkhead | Male to Male | Panel Mount | Male Pin SMB Jack | Straight |
