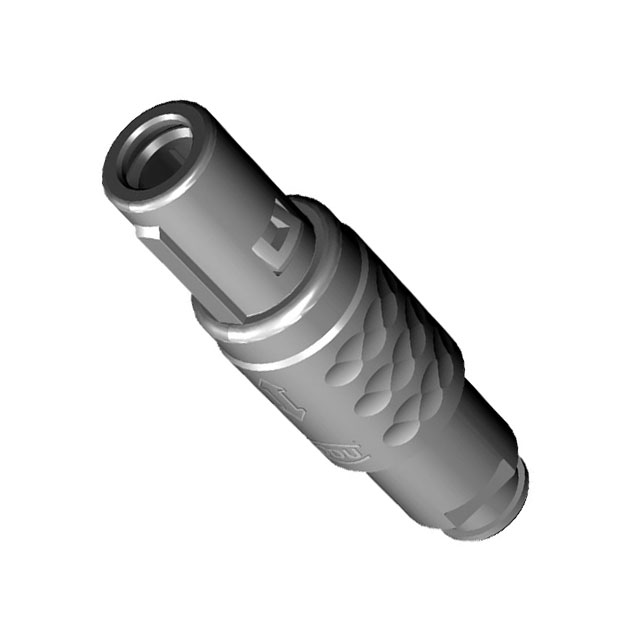

S21M07-P Series

Manufacturer: ODU

Catalog

CONN PLUG MALE 10P GOLD SLDR CUP

Part	Backshell Material, Plating	Shielding	Current Rating (Amps)	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material	Shell Size - Insert	Insert Material	Contact Material	Color	Fastening Type	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Applications	Ingress Protection	Mounting Type	Features	Contact Finish - Mating	Connector Type	Number of Positions	Cable Opening	Voltage Rating	Cable Opening [Max]	Material Flammability Rating
ODU S21M07-P10MCC0-657S	Polysulfone (PSU)	Unshielded	2.75 A	Plastic	120 °C	-50 °C	Polysulfone (PSU)	1	Polyetheretherketone (PEEK)	Brass	Gray	Push-Pull	6.5 mm	0.209 in	0.256 in	5.3 mm	Industrial Medical Testing Equipment & Measurement	IP50 - Dust Protected	Free Hanging (In-Line)	Backshell Strain Relief	Gold	Plug Male Pins	10
ODU S21M07-P10MCC0-527S	Polysulfone (PSU)	Unshielded	2.75 A	Plastic	120 °C	-50 °C	Polysulfone (PSU)	1	Polyetheretherketone (PEEK)	Brass	Gray	Push-Pull		0.157 in	0.205 in		Industrial Medical Testing Equipment & Measurement	IP50 - Dust Protected	Free Hanging (In-Line)	Backshell Strain Relief	Gold	Plug Male Pins	10	4 mm 5.2 mm
ODU S21M07-P07MFG0-527S	Polysulfone (PSU)	Unshielded	4.55 A	Plastic	120 °C	-50 °C	Polysulfone (PSU)	1	Polyetheretherketone (PEEK)	Brass	Gray	Push-Pull		0.157 in	0.205 in		Industrial Medical Military Testing Equipment & Measurement	IP50 - Dust Protected	Free Hanging (In-Line)	Backshell Strain Relief	Gold	Plug Male Pins	7	4 mm 5.2 mm
ODU S21M07-P07MFD0-657S	Polysulfone (PSU)	Unshielded	4.55 A	Plastic	120 °C	-50 °C	Polysulfone (PSU)	1	Polyetheretherketone (PEEK)	Brass	Gray	Push-Pull	6.5 mm	0.209 in	0.256 in	5.3 mm	Industrial Medical Military Testing Equipment & Measurement	IP50 - Dust Protected	Free Hanging (In-Line)	Backshell Strain Relief	Gold	Plug Male Pins	7
ODU S21M07-P14MCC0-657S	Polysulfone (PSU)	Unshielded	2.5 A	Plastic	120 °C	-50 °C	Polysulfone (PSU)	1	Polyetheretherketone (PEEK)	Brass	Gray	Push-Pull	6.5 mm	0.209 in	0.256 in	5.3 mm	Industrial Medical Testing Equipment & Measurement	IP50 - Dust Protected	Free Hanging (In-Line)	Backshell Strain Relief	Gold	Plug Male Pins	14
ODU S21M07-P02MPN0-397S	Polysulfone (PSU)	Unshielded	15 A	Plastic	120 °C	-50 °C	Polysulfone (PSU)	1	Polyetheretherketone (PEEK)	Brass	Gray	Push-Pull		0.106 in	0.154 in	2.7 mm	Industrial Medical Testing Equipment & Measurement	IP50 - Dust Protected	Free Hanging (In-Line)	Backshell Strain Relief	Gold	Plug Male Pins	2		38 V	3.9 mm	UL94 V-0
ODU S21M07-P03LJN0-657S	Polysulfone (PSU)	Unshielded	10 A	Plastic	120 °C	-50 °C	Polysulfone (PSU)	1	Polyetheretherketone (PEEK)	Brass	Gray	Push-Pull	6.5 mm	0.209 in	0.256 in	5.3 mm	Industrial Medical Testing Equipment & Measurement	IP50 - Dust Protected	Free Hanging (In-Line)	Backshell Strain Relief	Gold	Plug Male Pins			230 V		UL94 V-0
ODU S21M07-P14MCC0-527S	Polysulfone (PSU)	Unshielded	2.5 A	Plastic	120 °C	-50 °C	Polysulfone (PSU)	1	Polyetheretherketone (PEEK)	Brass	Gray	Push-Pull		0.157 in	0.205 in		Industrial Medical Testing Equipment & Measurement	IP50 - Dust Protected	Free Hanging (In-Line)	Backshell Strain Relief	Gold	Plug Male Pins	14	4 mm 5.2 mm
ODU S21M07-P04MJH0-527S	Polysulfone (PSU)	Unshielded	10 A	Plastic	120 °C	-50 °C	Polysulfone (PSU)	1	Polyetheretherketone (PEEK)	Brass	Gray	Push-Pull		0.157 in	0.205 in		Industrial Medical Testing Equipment & Measurement	IP50 - Dust Protected	Free Hanging (In-Line)	Backshell Strain Relief	Gold	Plug Male Pins	4	4 mm 5.2 mm	37 V		UL94 V-0
ODU S21M07-P06MFG0-527S	Polysulfone (PSU)	Unshielded	4.55 A	Plastic	120 °C	-50 °C	Polysulfone (PSU)	1	Polyetheretherketone (PEEK)	Brass	Gray	Push-Pull		0.157 in	0.205 in		Industrial Medical Military Testing Equipment & Measurement	IP50 - Dust Protected	Free Hanging (In-Line)	Backshell Strain Relief	Gold	Plug Male Pins	6	4 mm 5.2 mm
