GWCSHPM1.C Series

Catalog

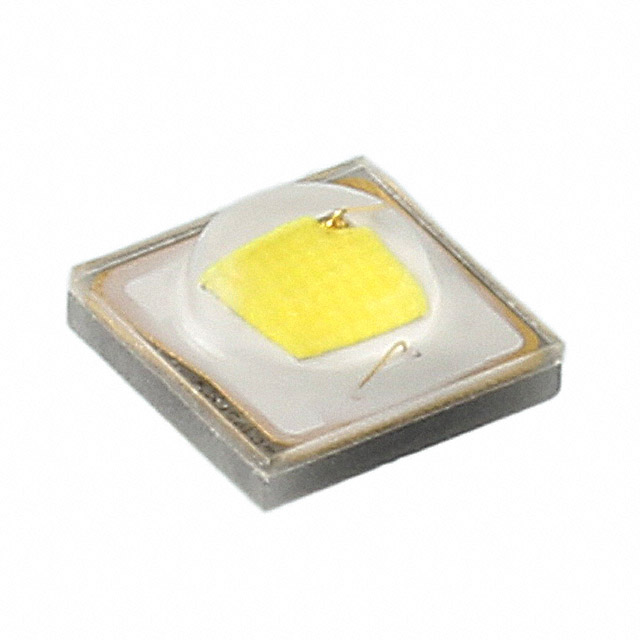

LED OSLON NEUTRAL WHT 4000K SMD

Part	Thermal Resistance of Package	Color	Current - Test	Supplier Device Package	Viewing Angle	CCT (K)	Voltage - Forward (Vf) (Typ)	Flux @ 85°C, Current - Test	Flux @ 85°C, Current - Test [Min]	Flux @ 85°C, Current - Test [Max]	Lumens/Watt @ Current - Test	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Package / Case	CRI (Color Rendering Index)	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
ams-OSRAM USA INC. GW CSHPM1.CM-KULQ-XX55-1-350-R18	5.25 °C/W	Neutral White	350 mA	SMD	150 °	4000 K	2.85 V	117 lm	104 lm	130 lm	117 lm/W	1.3 A	3 mm	0.118 in	3 mm	0.118 "	3030 Metric	1212	90	Surface Mount	1.58 mm	0.062 in
ams-OSRAM USA INC. GW CSHPM1.CM-KTLP-XX56-1-350-R18		Warm White	350 mA	SMD	150 °	3500 K	2.85 V		97 lm	121 lm	109 lm/W	1.3 A	3 mm	0.118 in	3 mm	0.118 "	3030 Metric	1212	90	Surface Mount	1.58 mm	0.062 in
ams-OSRAM USA INC. GW CSHPM1.CM-KTLP-XX57-1-350-R18	5.25 °C/W	Warm White	350 mA	SMD	150 °	3000 K	2.85 V		97 lm	121 lm	109 lm/W	1.3 A	3 mm	0.118 in	3 mm	0.118 "	3030 Metric	1212	90	Surface Mount	1.58 mm	0.062 in
ams-OSRAM USA INC. GW CSHPM1.CM-KSKU-XX58-1-350-R18	5.25 °C/W	Warm White	350 mA	SMD	150 °	2700 K	2.85 V		89 lm	112 lm	101 lm/W	1.3 A	3 mm	0.118 in	3 mm	0.118 "	3030 Metric	1212	90	Surface Mount	1.58 mm	0.062 in
