THS450 Series

Catalog

IC OPAMP DIFF 1 CIRCUIT 8VSSOP

Part	Current - Supply	Current - Input Bias	-3db Bandwidth	Slew Rate	Operating Temperature [Max]	Operating Temperature [Min]	Gain Bandwidth Product	Amplifier Type	Mounting Type	Voltage - Supply Span (Max) [Max]	Number of Circuits	Output Type	Voltage - Input Offset	Voltage - Supply Span (Min) [Min]	Package / Case	Package / Case [custom]	Package / Case	Supplier Device Package	Package / Case [y]	Package / Case [x]	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Current - Output / Channel	Utilized IC / Part	Board Type	Supplied Contents	Channels per IC	Current - Supply (Main IC)
Texas Instruments THS4505DGKR	16 mA	4 µA	260 MHz	1800 V/µs	85 °C	-40 °C	210 MHz	Differential	Surface Mount	15 V	1	Differential	4 mV	4.5 V	8-MSOP 8-TSSOP	0.118 in	3 mm
Texas Instruments THS4502CDR	23 mA	4 µA	370 MHz	2800 V/µs	70 °C	0 °C	300 MHz	Differential	Surface Mount	15 V	1	Differential	1 mV	4.5 V	8-SOIC			8-SOIC	3.9 mm	0.154 in
Texas Instruments THS4505EVM			260 MHz	1800 V/µs				Differential				Differential									-2.25 V 4.5 V	7.5 V 15 V	130 mA	THS4505	Fully Populated	Board(s)	1 - Single
Texas Instruments THS4503IDRG4	23 mA	4 µA	370 MHz	2800 V/µs	85 °C	-40 °C	300 MHz	Differential	Surface Mount	15 V	1	Differential	1 mV	4.5 V	8-SOIC			8-SOIC	3.9 mm	0.154 in
Texas Instruments THS4503IDGKRG4	23 mA	4 µA	370 MHz	2800 V/µs	85 °C	-40 °C	300 MHz	Differential	Surface Mount	15 V	1	Differential	1 mV	4.5 V	8-MSOP 8-TSSOP	0.118 in	3 mm
Texas Instruments THS4501IDGKR	23 mA	4 µA	370 MHz	2800 V/µs	85 °C	-40 °C	300 MHz	Differential	Surface Mount	15 V	1	Differential	4 mV	4.5 V	8-MSOP 8-TSSOP	0.118 in	3 mm

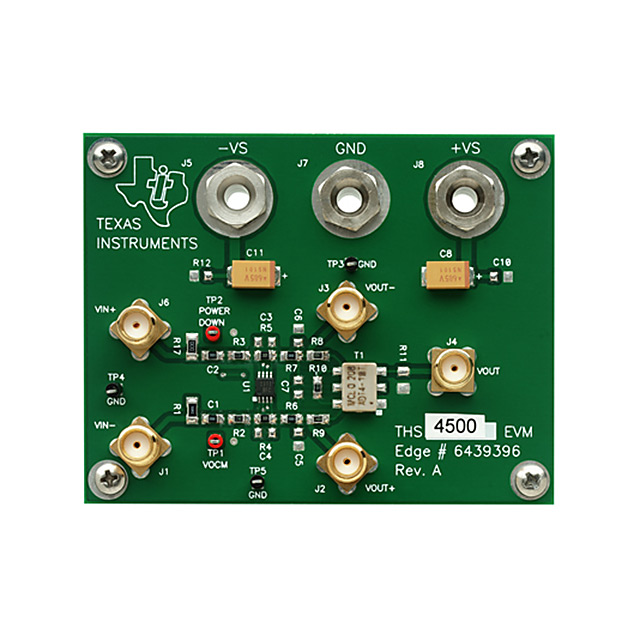

Texas Instruments THS4500EVM			370 MHz	2800 V/µs				Differential				Differential									-2.25 V 4.5 V	7.5 V 15 V	120 mA	THS4500	Fully Populated	Board(s)	1 - Single	23 mA
Texas Instruments THS4502IDGKR	23 mA	4 µA	370 MHz	2800 V/µs	85 °C	-40 °C	300 MHz	Differential	Surface Mount	15 V	1	Differential	1 mV	4.5 V	8-MSOP 8-TSSOP	0.118 in	3 mm
Texas Instruments THS4501CDRG4	23 mA	4 µA	370 MHz	2800 V/µs	70 °C	0 °C	300 MHz	Differential	Surface Mount	15 V	1	Differential	4 mV	4.5 V	8-SOIC			8-SOIC	3.9 mm	0.154 in
Texas Instruments THS4500CDR	23 mA	4 µA	370 MHz	2800 V/µs	70 °C	0 °C	300 MHz	Differential	Surface Mount	15 V	1	Differential	4 mV	4.5 V	8-SOIC			8-SOIC	3.9 mm	0.154 in
