FMX Series

Manufacturer: OptiFuse

Catalog

FUSE AUTO 30A 32VDC AUTO LINK

Part	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Color	Fuse Type	Response Time	Breaking Capacity @ Rated Voltage	Current Rating (Amps)	Package / Case	Mounting Type	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]

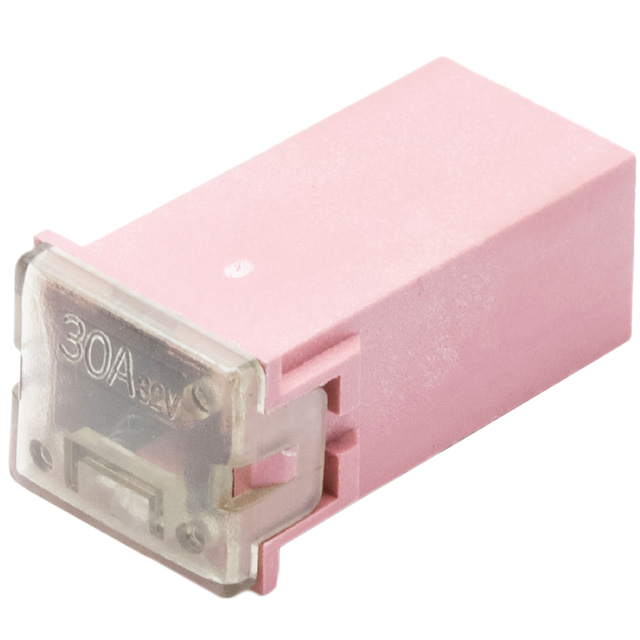

OptiFuse FMX-I-30A	ISO SAE	0.48 in	0.559 "	12.2 mm	27.3 mm	1.075 in	14.2 mm	Pink	Automotive	Fast Blow	1 kA	30 A	Auto Link	Requires Holder	32 V

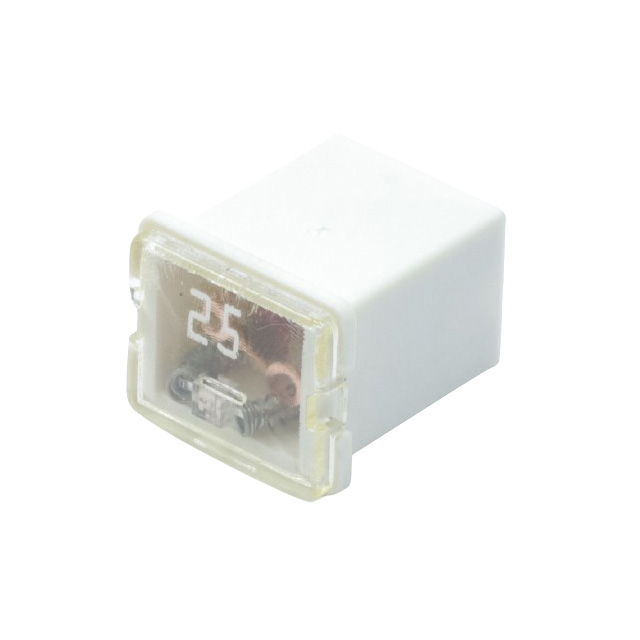

OptiFuse FMX-LP-I-25A	ISO SAE	0.476 in	0.559 "	12.1 mm	16.5 mm	0.65 in	14.2 mm		Automotive	Fast Blow	1 kA	25 A	Auto Link	Requires Holder	32 V

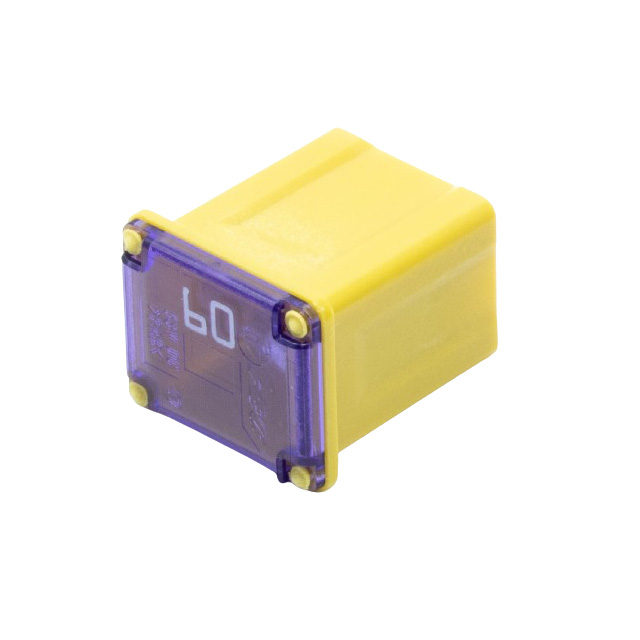

OptiFuse FMX-LP-60A		0.472 "	0.555 in	12 mm	15.9 mm	0.626 "	14.1 mm	Yellow	Automotive	Fast Blow	1 kA	60 A	Auto Link	Requires Holder	58 VDC	125 °C	-40 C

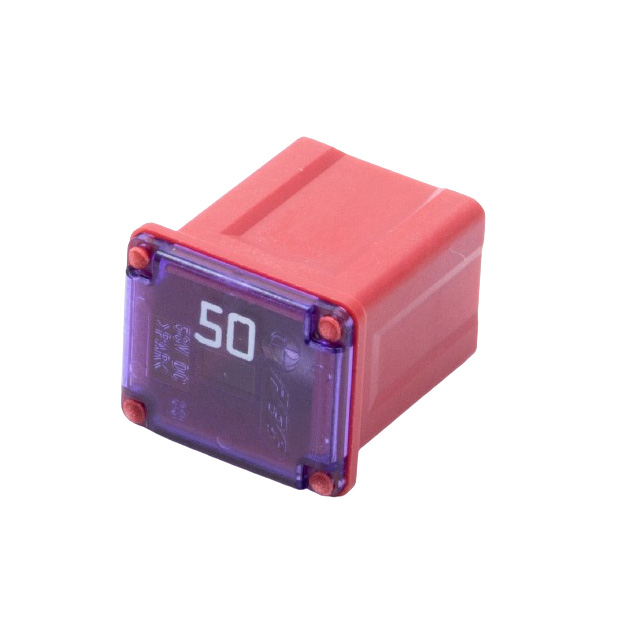

OptiFuse FMX-LP-50A		0.472 "	0.555 in	12 mm	15.9 mm	0.626 "	14.1 mm	Red	Automotive	Fast Blow	1 kA	50 A	Auto Link	Requires Holder	58 VDC	125 °C	-40 C

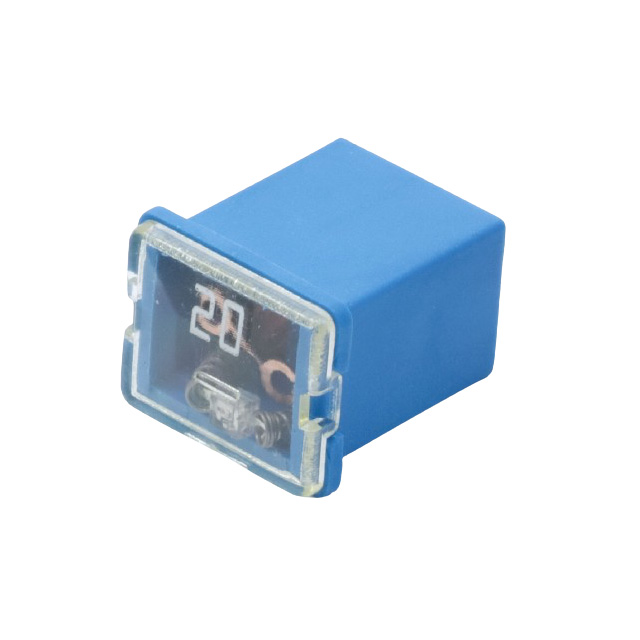

OptiFuse FMX-LP-I-20A	ISO SAE	0.476 in	0.559 "	12.1 mm	16.5 mm	0.65 in	14.2 mm	Light Blue	Automotive	Fast Blow	1 kA	20 A	Auto Link	Requires Holder	32 V

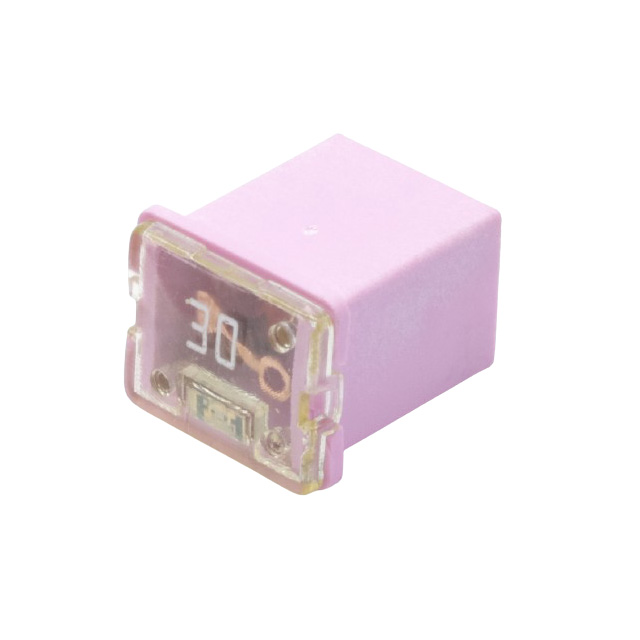

OptiFuse FMX-LP-I-30A	ISO SAE	0.476 in	0.559 "	12.1 mm	16.5 mm	0.65 in	14.2 mm	Pink	Automotive	Fast Blow	1 kA	30 A	Auto Link	Requires Holder	32 V

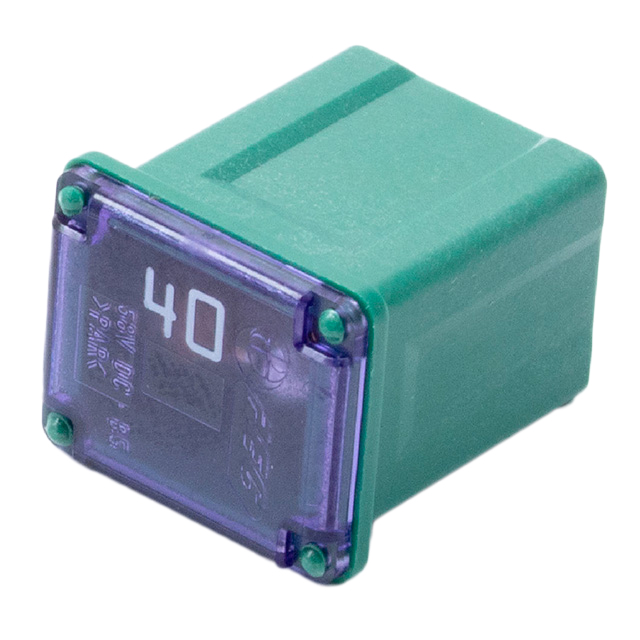

OptiFuse FMX-LP-40A		0.472 "	0.555 in	12 mm	15.9 mm	0.626 "	14.1 mm	Green	Automotive	Fast Blow	1 kA	40 A	Auto Link	Requires Holder	58 VDC	125 °C	-40 C

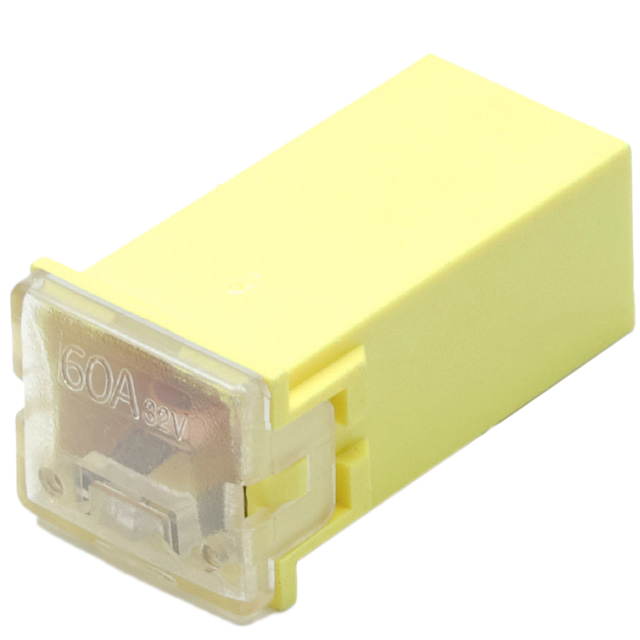

OptiFuse FMX-I-60A	ISO SAE	0.48 in	0.559 "	12.2 mm	27.3 mm	1.075 in	14.2 mm	Yellow	Automotive	Fast Blow	1 kA	60 A	Auto Link	Requires Holder	32 V

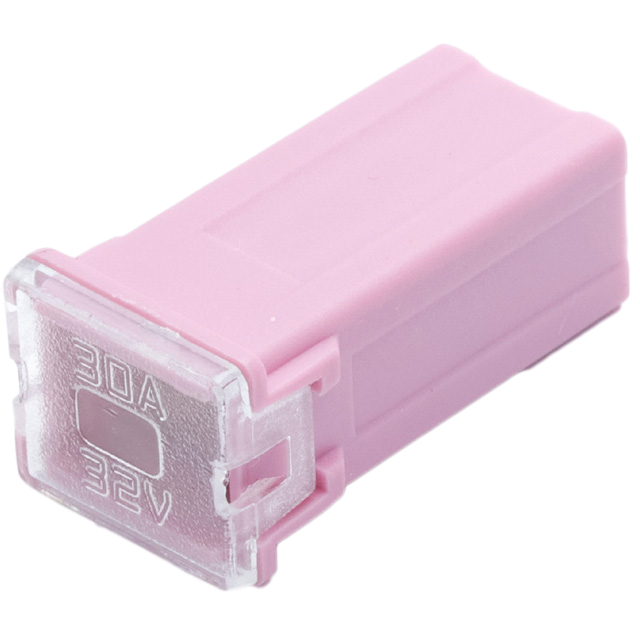

OptiFuse FMX-30A	ISO SAE	0.48 in	0.559 "	12.2 mm	27.3 mm	1.075 in	14.2 mm	Pink	Automotive	Fast Blow	1 kA	30 A	Auto Link	Requires Holder	32 V

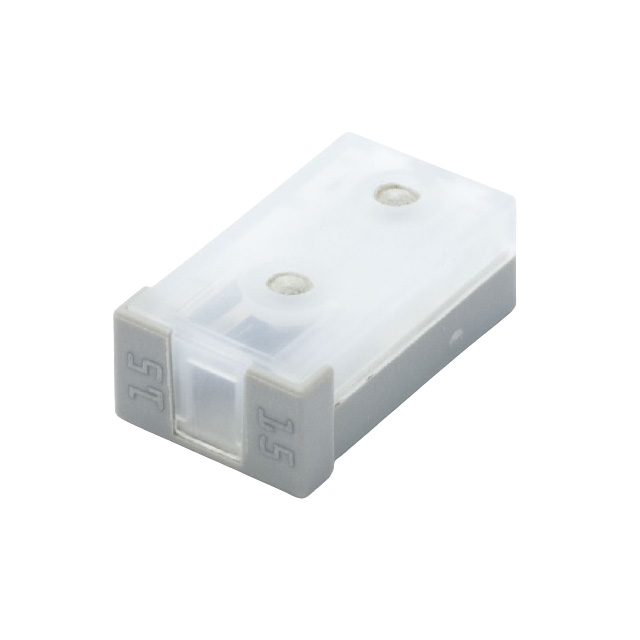

OptiFuse FMX-M-15A		0.59 in	0.42 in	15 mm	6.2 mm	0.24 in	10.7 mm	Gray	Automotive	Fast Blow	1 kA	15 A	Auto Link	Requires Holder	58 VDC
