61698 Series

Catalog

MTK SMT POL HDR

Part	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Contact Type	Insulation Height	Insulation Height	Connector Type	Contact Length - Mating	Contact Length - Mating	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Fastening Type	Number of Positions Loaded	Material Flammability Rating	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Contact Finish - Mating	Contact Finish - Post	Shrouding	Features	Voltage Rating	Number of Rows	Current Rating (Amps)	Mounting Type	Insulation Color	Termination
Amphenol ICC (FCI) 61698-502TR	0.079 in	2 mm	26	Male Pin	1.5 mm	0.059 "	Header	4 mm	0.157 in	Thermoplastic	15 µin	0.38 µm	0.079 in	2 mm	Push-Pull	25	UL94 V-0	Copper Alloy	2.54 µm	100 µin	Square	Palladium-Nickel	Tin	Unshrouded	Pick and Place	200 V	2	2 A	Surface Mount	Black	Solder
Amphenol ICC (FCI) 61698-502T	0.079 in	2 mm	26	Male Pin	1.5 mm	0.059 "	Header	4 mm	0.157 in	Thermoplastic	15 µin	0.38 µm	0.079 in	2 mm	Push-Pull	25	UL94 V-0	Copper Alloy	2.54 µm	100 µin	Square	Palladium-Nickel	Tin	Unshrouded		200 V	2	2 A	Surface Mount	Black	Solder
Amphenol ICC (FCI) 61698-301TC	0.079 in	2 mm	44	Male Pin	1.5 mm	0.059 "	Header	4 mm	0.157 in	Thermoplastic	15 µin	0.38 µm	0.079 in	2 mm	Push-Pull	43	UL94 V-0	Copper Alloy	3.81 Ám	150 Áin	Square	Gold GXT™	Tin-Lead	Unshrouded	Pick and Place	200 V	2	2 A	Surface Mount	Black	Solder

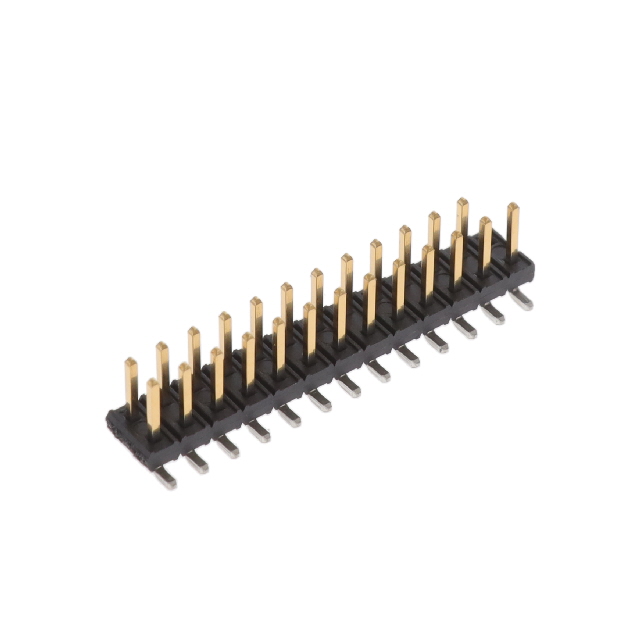

Amphenol ICC (FCI) 61698-302TRLF	0.079 in	2 mm	26	Male Pin	1.5 mm	0.059 "	Header	4 mm	0.157 in	Thermoplastic	15 µin	0.38 µm	0.079 in	2 mm	Push-Pull	25	UL94 V-0	Copper Alloy	2.54 µm	100 µin	Square	Gold GXT™	Tin	Unshrouded	Pick and Place	200 V	2	2 A	Surface Mount	Black	Solder
Amphenol ICC (FCI) 61698-602TCLF	0.079 in	2 mm	26	Male Pin	1.5 mm	0.059 "	Header	4 mm	0.157 in	Thermoplastic	30 Áin	0.76 Ám	0.079 in	2 mm	Push-Pull	25	UL94 V-0	Copper Alloy	2.54 µm	100 µin	Square	Palladium-Nickel	Tin	Unshrouded	Pick and Place	200 V	2	2 A	Surface Mount	Black	Solder
