717-034 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 34POS 0.156

Part	Material - Insulation	Termination Rows	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions [custom]	Read Out	Contact Type	Number of Positions/Bay/Row	Mounting Type	Contact Material	Number of Rows	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Color	Termination	Contact Finish	Gender	Card Type	Card Thickness [Max]	Card Thickness [Min]	Termination Rows [custom]	Number of Positions/Bay/Row [custom]	Number of Rows [custom]
EDAC Inc. 717-034-541-101	Polyester Thermoplastic	1	-40 C	105 ░C	34	Single	Cantilever	34	Through Hole	Copper Alloy	1	3.96 mm	0.156 in	30 Áin	0.76 Ám	Black	Press-Fit Wire Wrap	Gold	Female	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 717-034-545-101	Polyester Thermoplastic	1	-40 C	105 ░C	34	Single	Cantilever	34	Through Hole	Copper Alloy	1	3.96 mm	0.156 in	30 Áin	0.76 Ám	Black	Press-Fit Wire Wrap	Gold	Female	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 717-034-560-201	Polyester Thermoplastic		-40 C	105 ░C	34	Dual	Cantilever Make Before Break		Through Hole	Copper Alloy		3.96 mm	0.156 in	30 Áin	0.76 Ám	Black	Press-Fit	Gold	Female	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	2	17	2

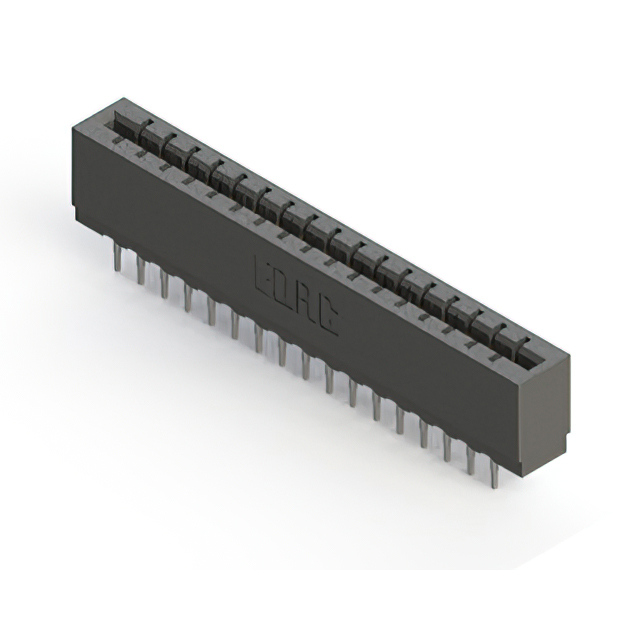

EDAC Inc. 717-034-522-201	Polyester Thermoplastic		-40 C	105 ░C	34	Dual	Cantilever		Through Hole	Copper Alloy		3.96 mm	0.156 in	30 Áin	0.76 Ám	Black	Press-Fit	Gold	Female	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	2	17	2
EDAC Inc. 717-034-541-201	Polyester Thermoplastic		-40 C	105 ░C	34	Dual	Cantilever		Through Hole	Copper Alloy		3.96 mm	0.156 in	30 Áin	0.76 Ám	Black	Press-Fit Wire Wrap	Gold	Female	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	2	17	2

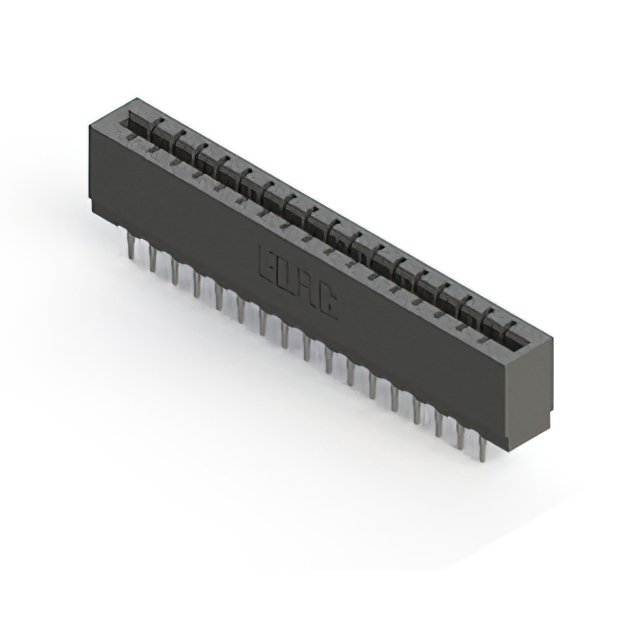

EDAC Inc. 717-034-540-201	Polyester Thermoplastic		-40 C	105 ░C	34	Dual	Cantilever		Through Hole	Copper Alloy		3.96 mm	0.156 in	30 Áin	0.76 Ám	Black	Press-Fit Wire Wrap	Gold	Female	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	2	17	2
EDAC Inc. 717-034-525-201	Polyester Thermoplastic		-40 C	105 ░C	34	Dual	Cantilever		Through Hole	Copper Alloy		3.96 mm	0.156 in	30 Áin	0.76 Ám	Black	Press-Fit	Gold	Female	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	2	17	2

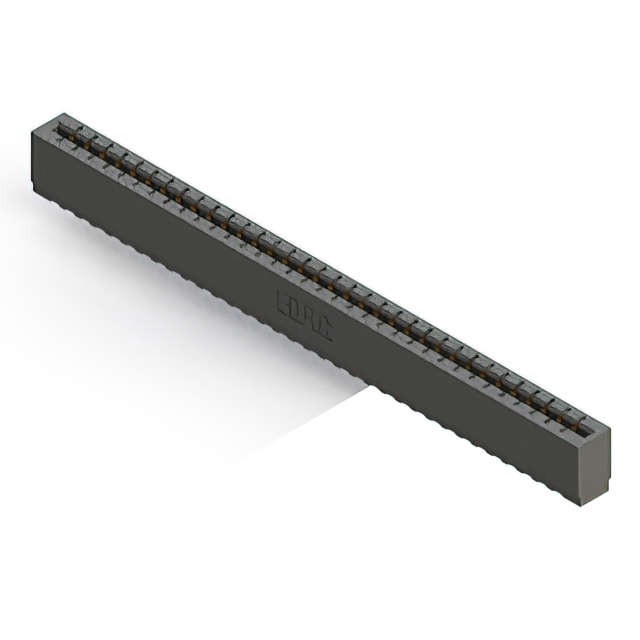

EDAC Inc. 717-034-525-101	Polyester Thermoplastic	1	-40 C	105 ░C	34	Single	Cantilever	34	Through Hole	Copper Alloy	1	3.96 mm	0.156 in	30 Áin	0.76 Ám	Black	Press-Fit	Gold	Female	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 717-034-522-101	Polyester Thermoplastic	1	-40 C	105 ░C	34	Single	Cantilever	34	Through Hole	Copper Alloy	1	3.96 mm	0.156 in	30 Áin	0.76 Ám	Black	Press-Fit	Gold	Female	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 717-034-520-201	Polyester Thermoplastic		-40 C	105 ░C	34	Dual	Cantilever		Through Hole	Copper Alloy		3.96 mm	0.156 in	30 Áin	0.76 Ám	Black	Press-Fit	Gold	Female	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	2	17	2
