HLMP-EH3 Series

Catalog

LED, 5MM, ALINGAP, RED-ORANGE, 30DEG

Part	Viewing Angle	Supplier Device Package	Mounting Type	Current - Test	Color	Wavelength - Peak	Configuration	Voltage - Forward (Vf) (Typ)	Height (Max) [z]	Lens Size	Lens Size	Lens Color	Wavelength - Dominant	Lens Transparency	Package / Case	Millicandela Rating	Lens Style	Height (Max) [Max] [z]
Broadcom Limited HLMP-EH3A-WX0DD	30 °	T-1 3/4	Through Hole	20 mA	Red-Orange	621 nm	Standard	2.1 V	8.91 mm	5 mm	T-1 3/4	Colorless	615 nm	Clear	Radial	7400 mcd	Round with Domed Top
Broadcom Limited HLMP-EH3B-WX0DD	30 °	T-1 3/4	Through Hole	20 mA	Red	621 nm	Standard	2.1 V		5 mm	T-1 3/4	Colorless	615 nm	Clear	Radial	7400 mcd	Round with Domed Top	12.21 mm

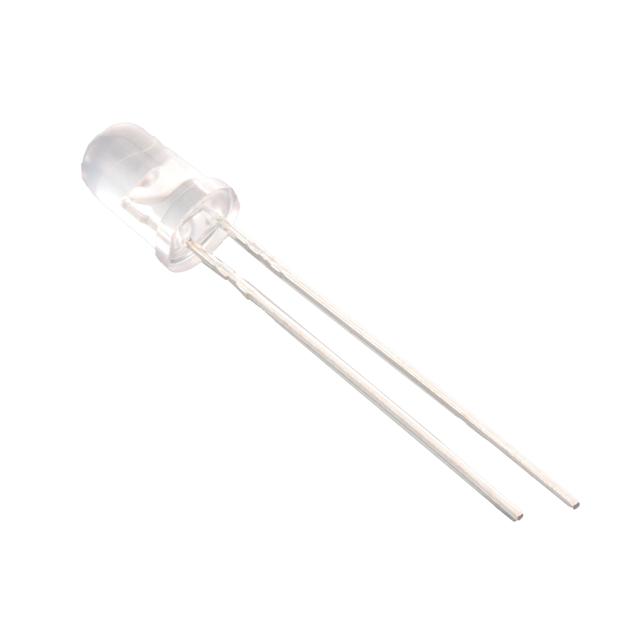

Broadcom Limited HLMP-EH3A-WX000	30 °	T-1 3/4 (5mm)	Through Hole	20 mA	Red-Orange	621 nm		2.1 V	8.91 mm	5 mm	T-1 3/4	Colorless	615 nm	Clear	Radial	7400 mcd	Round with Domed Top
