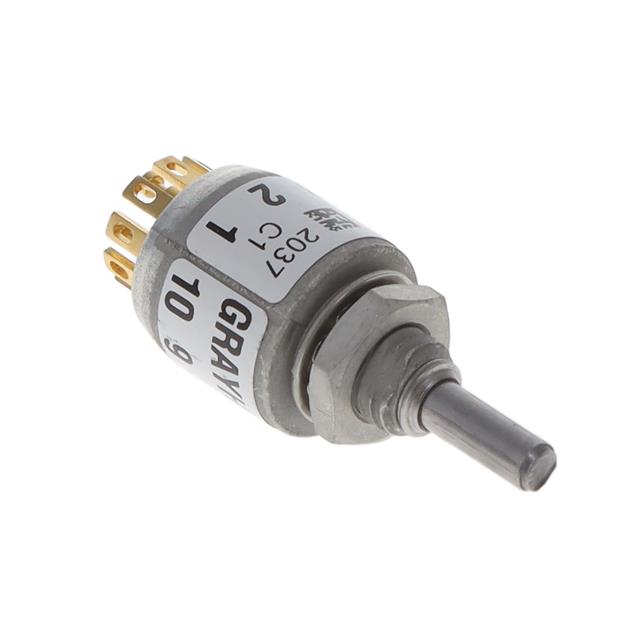

50C36 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SWITCH ROTARY 7POS 150MA 115V
| Part | Number of Decks [custom] | Voltage Rating - DC | Number of Positions | Contact Timing | Actuator Length [x] | Circuit per Deck | Number of Poles per Deck | Voltage Rating - AC | Angle of Throw | Contact Finish | Depth Behind Panel [custom] | Current Rating (Amps) | Index Stops | Termination Style | Actuator Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 1 | 28 V | 7 | Shorting (MBB) | 9.53 mm | SP7T | 1 | 115 V | 36 ° | Gold | 18.77 mm | 150 mA 200 mA | Fixed | Solder Lug | Flatted (3.17mm Dia) | Panel Mount |
 Grayhill Inc. | 1 | 28 V | Shorting (MBB) | 9.53 mm | DP3T | 2 | 115 V | 36 ° | Gold | 18.77 mm | 150 mA 200 mA | Fixed | Solder Lug | Flatted (3.17mm Dia) | Panel Mount | |
Grayhill Inc. | 1 | 28 V | 5 | Non-Shorting (BBM) | 9.53 mm | DP5T | 2 | 115 V | 36 ° | Gold | 18.77 mm | 150 mA 200 mA | Fixed | Solder Lug | Flatted (3.17mm Dia) | Panel Mount |
 Grayhill Inc. | 1 | 28 V | 4 | Shorting (MBB) | 9.53 mm | DP4T | 2 | 115 V | 36 ° | Gold | 18.77 mm | 150 mA 200 mA | Fixed | Solder Lug | Flatted (3.17mm Dia) | Panel Mount |
