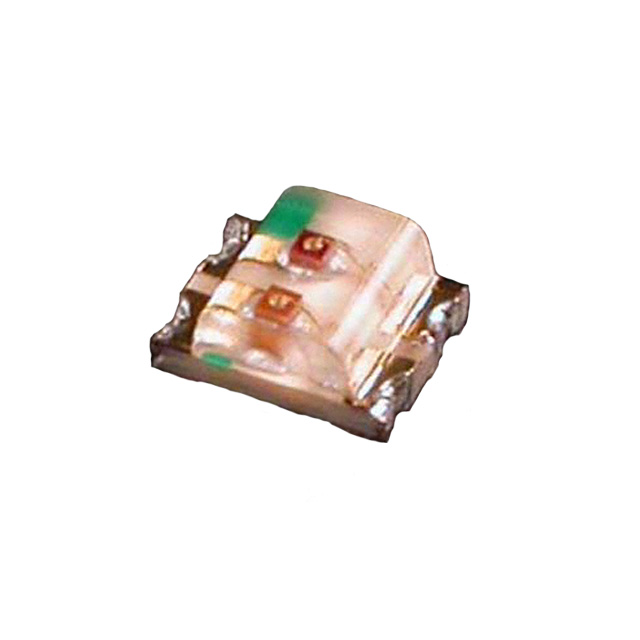

APTB1612 Series

Catalog

LED BLUE/RED CLEAR 4SMD

Part	Current - Test	Height (Max) [z]	Package / Case	Lens Style	Lens Color	Wavelength - Dominant	Supplier Device Package	Color	Lens Transparency	Voltage - Forward (Vf) (Typ)	Lens Size [x]	Lens Size [y]	Viewing Angle	Mounting Type	Configuration	Size / Dimension [y]	Size / Dimension [x]	Millicandela Rating [custom]	Millicandela Rating [custom]	Wavelength - Peak	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Package / Case	Millicandela Rating	Wavelength - Peak	Current - Test	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Dominant	Current - Test [custom]	Current - Test [custom]	Millicandela Rating
Kingbright APTB1612LSURKQBDC	2 mA 2 mA	0.85 mm	4-SMD No Lead	Rectangle with Flat Top	Colorless	465 nm 630 nm	4-SMD	Blue Red	Clear	1.8 V 2.7 V	1.2 mm	1.25 mm	120 °	Surface Mount	Independent	1.25 mm	1.6 mm	9 mcd	12 mcd	460 nm 645 nm
Kingbright APTB1612SYKCGKC-F01	20 mA 20 mA	0.65 mm	0605	Rectangle with Flat Top	Colorless	570 nm 590 nm	Chip LED	Green Yellow	Clear		1.2 mm	1.25 mm	120 °	Surface Mount	Independent	1.25 mm	1.6 mm				2.1 V	2 V	1613 Metric	50 mcd 120 mcd	574nm Green 590nm Yellow
Kingbright APTB1612LSURKSYKC		0.85 mm	4-SMD No Lead	Rectangle with Flat Top	Colorless	590 nm 630 nm	4-SMD	Red Yellow	Clear	1.8 V 1.9 V	1.2 mm	1.25 mm	120 °	Surface Mount	Independent	1.25 mm	1.6 mm							9 mcd 10 mcd		2mA Red 2mA Yellow	645 nm	590 nm
Kingbright APTB1612LSYKCGKC	2 mA 2 mA	0.85 mm	4-SMD No Lead	Rectangle with Flat Top	Colorless	570 nm 590 nm	4-SMD	Green Yellow	Clear	1.9 V 1.9 V	1.2 mm	1.25 mm	120 °	Surface Mount	Independent	1.25 mm	1.6 mm							3 mcd 10 mcd	574nm Green 590nm Yellow
Kingbright APTB1612LVBDSYKJ3C	2 mA 2 mA	0.85 mm	4-SMD No Lead	Rectangle with Flat Top	Colorless		4-SMD	Blue Yellow	Clear	1.9 V 2.7 V	1.2 mm	1.25 mm	120 °	Surface Mount	Independent	1.25 mm	1.6 mm			465 nm 590 nm				20 mcd 35 mcd					470nm Blue 590nm Yellow
Kingbright APTB1612LSURKCGKC	2 mA 2 mA	0.85 mm	4-SMD No Lead	Rectangle with Flat Top	Colorless		4-SMD	Green Red	Clear	1.8 V 1.9 V	1.2 mm	1.25 mm	120 °	Surface Mount	Independent	1.25 mm	1.6 mm			574 nm 645 nm				3 mcd 9 mcd					570nm Green 630nm Red
Kingbright APTB1612ESGC-F01		0.65 mm	0605	Rectangle with Flat Top	Colorless	568 nm 617 nm	Chip LED	Green Red	Clear	2 V 2.2 V	1.2 mm	1.25 mm	120 °	Surface Mount	Independent	1.25 mm	1.6 mm			565 nm 627 nm			1613 Metric	7 mcd 12 mcd						20 mA	20 mA

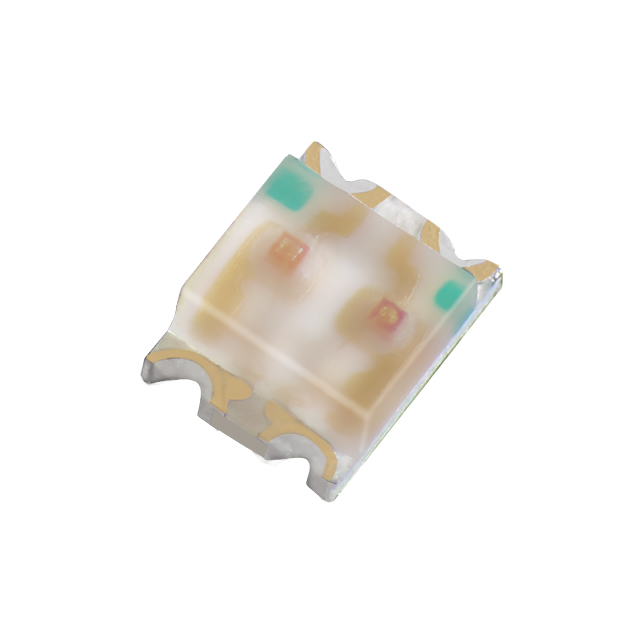

Kingbright APTB1612SEKCGKC		0.85 mm	0605	Rectangle with Flat Top	Colorless	570 nm 601 nm	4-SMD	Green Orange	Clear	2.1 V 2.1 V	1.25 mm	1.1 mm	120 °	Surface Mount	Independent	1.25 mm	1.6 mm			574 nm 610 nm			1613 Metric	50 mcd 240 mcd		20mA Green 20mA Orange
Kingbright APTB1612LVBDSEKJ3C	2 mA 2 mA	0.85 mm	4-SMD No Lead	Rectangle with Flat Top	Colorless		4-SMD	Blue Red	Clear	1.8 V 2.7 V	1.2 mm	1.25 mm	120 °	Surface Mount	Independent	1.25 mm	1.6 mm			465 nm 640 nm									470nm Blue 625nm Red			20mcd Blue 40mcd Red
Kingbright APTB1612LZGKSYKC	2 mA 2 mA	0.85 mm	4-SMD No Lead	Rectangle with Flat Top	Colorless	525 nm 590 nm	4-SMD	Green Yellow	Clear		1.2 mm	1.25 mm	120 °	Surface Mount	Independent	1.25 mm	1.6 mm							10 mcd 50 mcd	515nm Green 590nm Yellow
