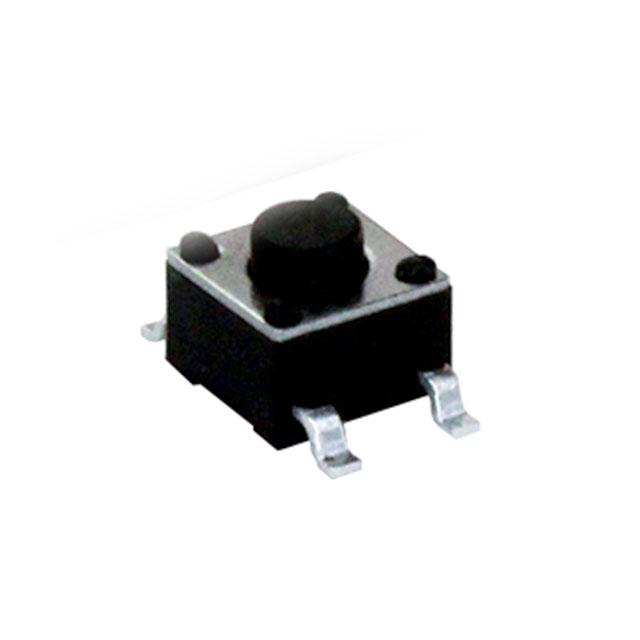

CS11043 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 50V
| Part | Actuator Material | Switch Travel | Switch Function | Actuator Orientation | Actuator Type | Outline [x] | Outline [y] | Actuator Height off PCB, Vertical | Operating Temperature [Max] | Operating Temperature [Min] | Contact Rating @ Voltage | Mounting Type | Circuit | Termination Style | Illumination | Operating Force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | Polyamide (PA46) Nylon 4/6 | 0.25 mm | Off-Mom | Top Actuated | Standard | 4.5 mm | 4.5 mm | 3.8 mm | 85 °C | -40 C | 0.05 A 50 VDC | Surface Mount | SPST-NO | Gull Wing | Non-Illuminated | 180 gf |
 CIT Relay and Switch | Polyamide (PA46) Nylon 4/6 | 0.25 mm | Off-Mom | Top Actuated | Standard | 4.5 mm | 4.5 mm | 3.8 mm | 85 °C | -40 C | 0.05 A 50 VDC | Surface Mount | SPST-NO | Gull Wing | Non-Illuminated | 260 gf |
