TR9KX3750 Series

Catalog

AC/DC DESKTOP ADAPTER 48V 180W

Part	Polarization	Output Connector [diameter]	Output Connector	Output Connector [x]	Current - Output (Max) [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Form	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Input Type	Standard Number	Cord Length	Cord Length	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage - Output	Input Connector	No Load Power Consumption	Efficiency	Region Utilized	Power (Watts)

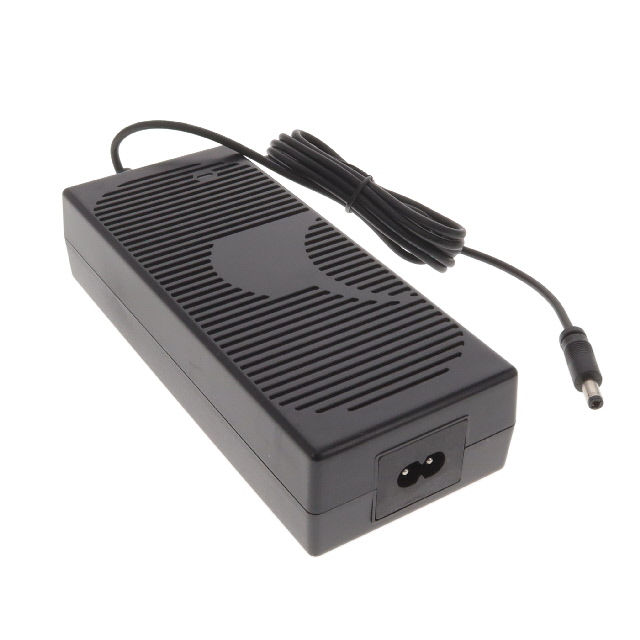

GlobTek, Inc. TR9KX3750LCPIMR6B	Positive Center	2.5 mm 5.5 mm	Barrel Plug	11 mm	3.75 A	264 VAC	90 VAC	CB CCC CE cETLus EAC ETL PSE S-Mark UkrSEPRO VCCI	Desktop (Class II)	6.95 in	176.5 mm	74 mm	2.91 in	40 mm	1.58 in	Cord (Sold Separately)	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	60.2 in	1.53 m	40 °C	-10 °C	Household Appliances ITE (Commercial) Medical	48 V	IEC 320-C8	150 mW	CoC Tier 2 Level VI	International	180 W

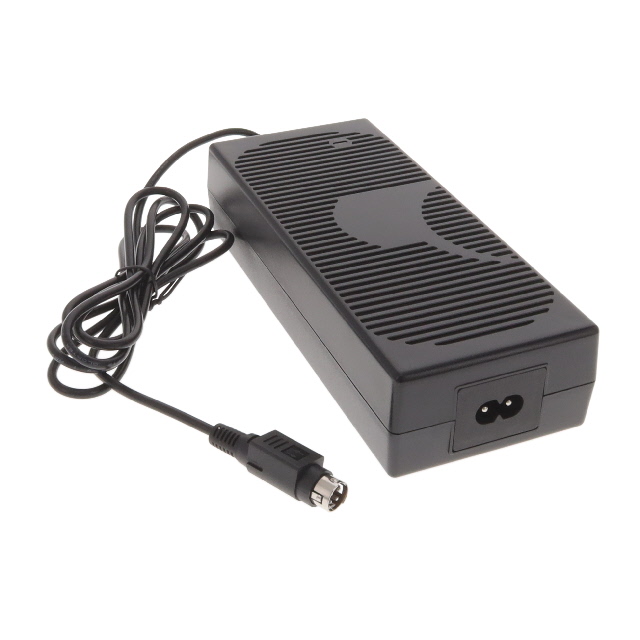

GlobTek, Inc. TR9KX3750YL4IMR6B			Power DIN 4 Pin		3.75 A	264 VAC	90 VAC	CB CCC CE cETLus EAC ETL PSE S-Mark UkrSEPRO VCCI	Desktop (Class II)	6.95 in	176.5 mm	74 mm	2.91 in	40 mm	1.58 in	Cord (Sold Separately)	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	59 in	1.5 m	40 °C	-10 °C	Household Appliances ITE (Commercial) Medical	48 V	IEC 320-C8	150 mW	CoC Tier 2 Level VI	International	180 W
