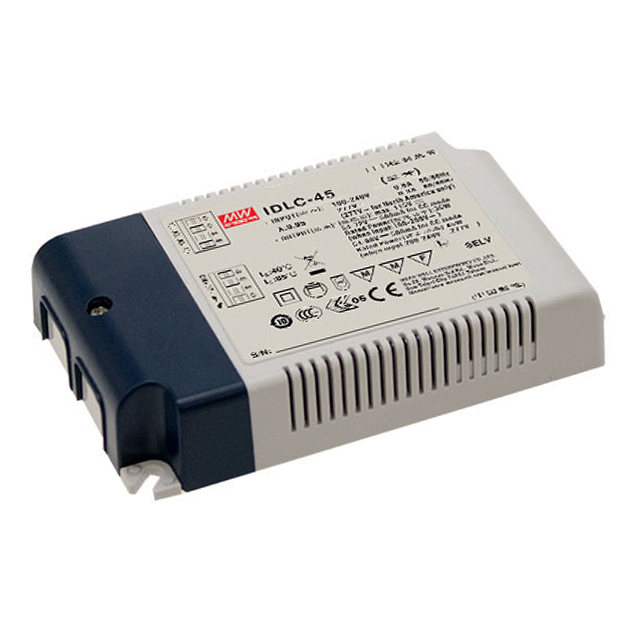

IDLC-45 Series

Catalog

LED DRVR CC AC/DC 57-95V 350MA

Part	Mounting Type	Approval Agency	Voltage - Output [Min]	Voltage - Output [Max]	Number of Outputs	Efficiency	Features	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Current - Output (Max) [Max]	Size / Dimension	Size / Dimension	Power (Watts)	Termination Style	Dimming	Voltage - Isolation	Voltage - Input (Max) [Max]	Topology	Standard Number

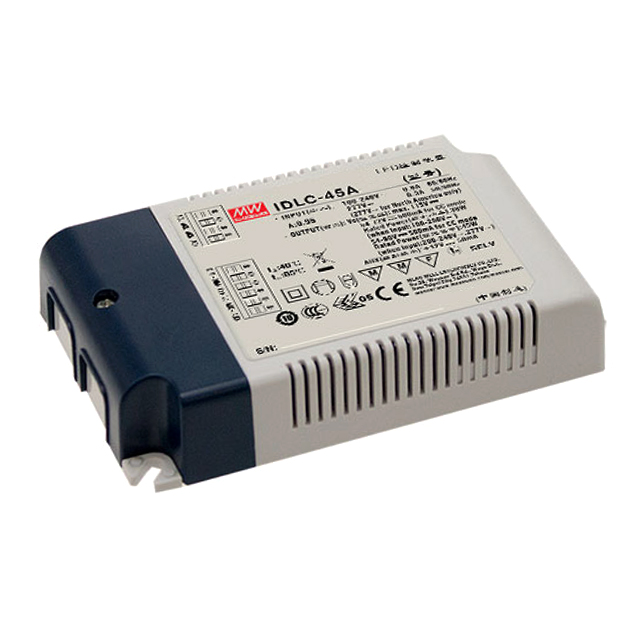

MEAN WELL USA Inc. IDLC-45A-350	Chassis Mount	CB CCC CE cURus ENEC	57 V	95 V	1	86 %	SCP	90 VAC	85 °C	-20 ░C	Constant Current	350 mA	25 mm 75 mm 120 mm	0.98 in 2.95 " 4.72 in	33 W	Terminal Block	Analog PWM	3750 VDC	295 VAC	AC DC Converter
MEAN WELL USA Inc. IDLC-45-1050	Chassis Mount	CB CCC CE cURus ENEC	26 V	43 V	1	84 %	SCP	90 VAC	85 °C	-20 ░C	Constant Current	1.05 A	25 mm 75 mm 120 mm	0.98 in 2.95 " 4.72 in	45 W	Terminal Block	Analog PWM	3750 VDC	295 VAC	AC DC Converter
MEAN WELL USA Inc. IDLC-45-500	Chassis Mount	CB CCC CE cURus ENEC	54 V	90 V	1	85 %	SCP	90 VAC	85 °C	-20 ░C	Constant Current	500 mA	25 mm 75 mm 120 mm	0.98 in 2.95 " 4.72 in	45 W	Terminal Block	Analog PWM	3750 VDC	295 VAC	AC DC Converter

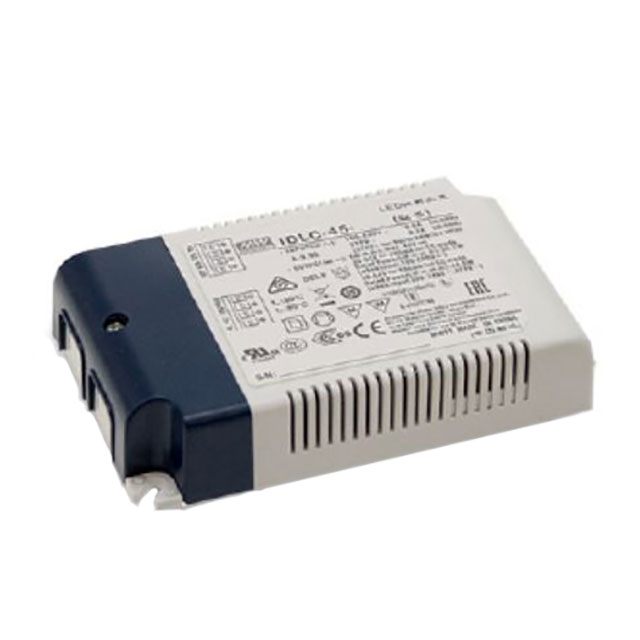

MEAN WELL USA Inc. IDLC-45-700DA	Chassis Mount	CB CCC CE cURus ENEC	19 V	32 VDC	1	83 %	SCP	90 VAC	85 °C	-20 ░C	Constant Current	1.05 A	25 mm 75 mm 120 mm	0.98 in 2.95 " 4.72 in	33 W	Terminal Block	Analog PWM	3750 VDC	295 VAC	AC DC Converter	UL 8750
MEAN WELL USA Inc. IDLC-45A-700	Chassis Mount	CB CCC CE cURus ENEC	38 V	64 V	1	85 %	SCP	90 VAC	85 °C	-20 ░C	Constant Current	700 mA	25 mm 75 mm 120 mm	0.98 in 2.95 " 4.72 in	45 W	Terminal Block	Analog PWM	3750 VDC	295 VAC	AC DC Converter
MEAN WELL USA Inc. IDLC-45A-500	Chassis Mount	CB CCC CE cURus ENEC	54 V	90 V	1	85 %	SCP	90 VAC	85 °C	-20 ░C	Constant Current	500 mA	25 mm 75 mm 120 mm	0.98 in 2.95 " 4.72 in	45 W	Terminal Block	Analog PWM	3750 VDC	295 VAC	AC DC Converter
MEAN WELL USA Inc. IDLC-45-700	Chassis Mount	CB CCC CE cURus ENEC	38 V	64 V	1	85 %	SCP	90 VAC	85 °C	-20 ░C	Constant Current	700 mA	25 mm 75 mm 120 mm	0.98 in 2.95 " 4.72 in	45 W	Terminal Block	Analog PWM	3750 VDC	295 VAC	AC DC Converter
MEAN WELL USA Inc. IDLC-45-1400	Chassis Mount	CB CCC CE cURus ENEC	19 V	32 VDC	1	83 %	SCP	90 VAC	85 °C	-20 ░C	Constant Current	1.4 A	25 mm 75 mm 120 mm	0.98 in 2.95 " 4.72 in	45 W	Terminal Block	Analog PWM	3750 VDC	295 VAC	AC DC Converter
MEAN WELL USA Inc. IDLC-45-1050DA	Chassis Mount	CB CCC CE cURus ENEC	19 V	32 VDC	1	83 %	SCP	90 VAC	85 °C	-20 ░C	Constant Current	1.05 A	25 mm 75 mm 120 mm	0.98 in 2.95 " 4.72 in	33 W	Terminal Block	Analog PWM	3750 VDC	295 VAC	AC DC Converter	UL 8750
