LCD4 Series

Catalog

COPPER COMPRESSION LUG, 2 HOLE, #4 - #3 ROHS COMPLIANT: YES

Part	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Contact Finish	Diameter - Barrel ID	Diameter - Barrel ID	Contact Material	Stud/Tab Size	Width - Outer Edges [y]	Width - Outer Edges [y]	Insulation	Color	Terminal Type	Wire Gauge	Termination	Tab Thickness [custom]	Tab Thickness [custom]	Terminal Style	Length - Overall [x]	Length - Overall [x]	Mounting Type	Diameter - Ring ID	Diameter - Ring ID	Wire Gauge [Min]	Wire Gauge [Max]	Tab Thickness	Tab Thickness	Width - Outer Edges [x]	Width - Outer Edges [x]	Width - Outer Edges	Width - Outer Edges	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Diameter - Ring ID

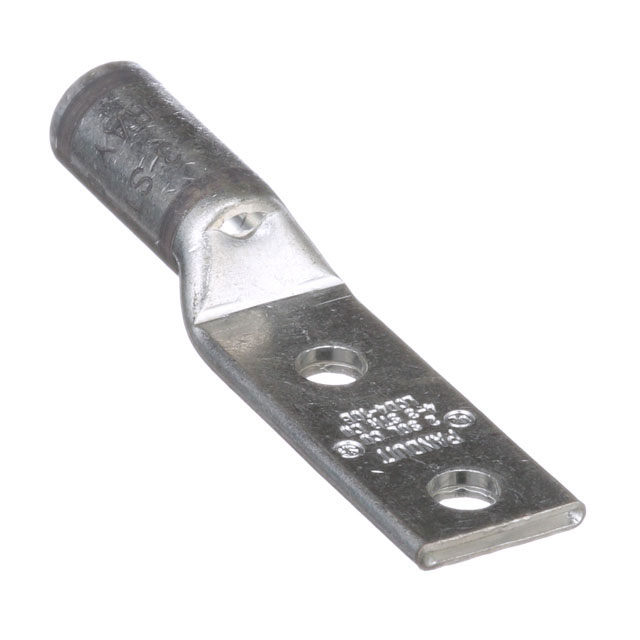

Panduit Corp LCD4-10B-L	5.08 mm	0.2 in	0.38 in	9.65 mm	Electro-Tin	7.11 mm	0.28 in	Copper	10 Stud	0.55 in	13.97 mm	Non-Insulated	Gray	Rectangular Tongue	4 AWG	Barrel Crimp	0.09 in	2.29 mm	Two Stud Holes	2.29 in	58.17 mm	Free Hanging (In-Line)
Panduit Corp LCD4-12H-L			0.38 in	9.65 mm	Electro-Tin	7.11 mm	0.28 in	Copper	0.5 Stud			Non-Insulated	Gray	Rectangular Tongue		Barrel Crimp			Two Stud Holes			Free Hanging (In-Line)	13.46 mm	0.53 in	2 AWG	4 AWG	0.12 in	3.05 mm	19.05 mm	0.75 in
Panduit Corp LCD4-12F-L			0.38 in	9.65 mm	Electro-Tin	7.11 mm	0.28 in	Copper	0.5 Stud			Non-Insulated	Gray	Rectangular Tongue		Barrel Crimp			Two Stud Holes			Free Hanging (In-Line) Right Angle	13.46 mm	0.53 in	2 AWG	4 AWG	0.12 in	3.05 mm	19.05 mm	0.75 in
Panduit Corp LCD4-38DH-L	10.41 mm	0.41 "	0.38 in	9.65 mm	Electro-Tin	7.11 mm	0.28 in	Copper	0.375 Stud			Non-Insulated	Gray	Rectangular Tongue	4 AWG	Barrel Crimp			Two Stud Holes			Free Hanging (In-Line)					0.08 "	2.03 mm			0.62 in	15.75 mm
Panduit Corp LCD4-10A-L	5.08 mm	0.2 in	0.38 in	9.65 mm	Electro-Tin	7.11 mm	0.28 in	Copper	10 Stud	0.55 in	13.97 mm	Non-Insulated	Gray	Rectangular Tongue	4 AWG	Barrel Crimp	0.09 in	2.29 mm	Two Stud Holes	2.17 in	55.12 mm	Free Hanging (In-Line)
Panduit Corp LCD4/0-38DH-X	10.41 mm	0.41 "	0.71 in	18.03 mm	Electro-Tin			Copper	0.375 Stud			Non-Insulated	Purple	Rectangular Tongue	4 aught AWG	Barrel Crimp			Two Stud Holes			Free Hanging (In-Line)					0.14 in	3.56 mm		1.06 in		26.92 mm	0.57 "	14.48 mm

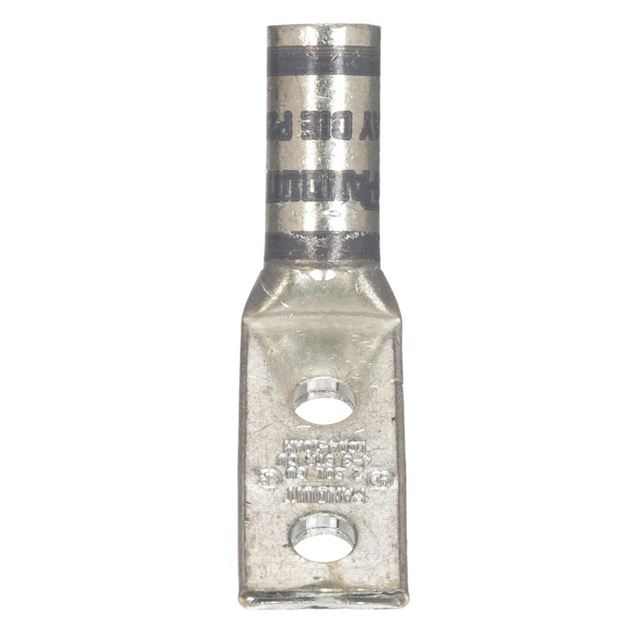

Panduit Corp LCD4-10AH-L	5.08 mm	0.2 in	0.38 in	9.65 mm	Electro-Tin	7.11 mm	0.28 in	Copper	10 Stud	0.55 in	13.97 mm	Non-Insulated	Gray	Rectangular Tongue	4 AWG	Barrel Crimp	0.09 in	2.29 mm	Two Stud Holes			Free Hanging (In-Line)

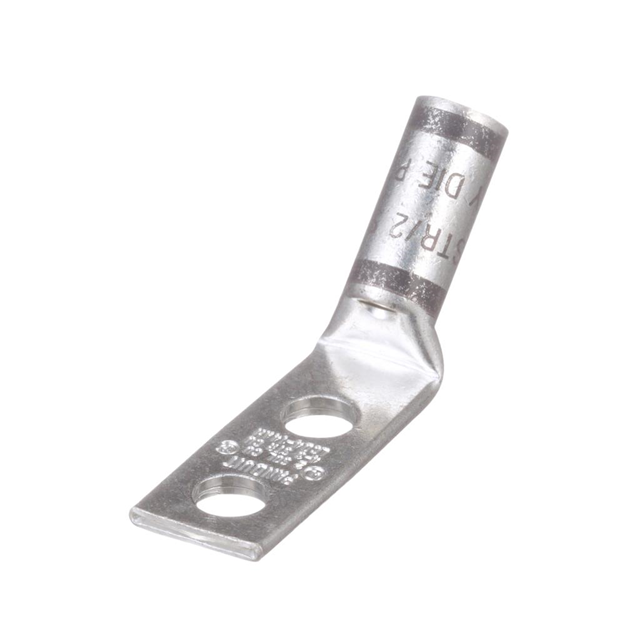

Panduit Corp LCD4-14AH-L			0.38 in	9.65 mm	Electro-Tin	7.11 mm	0.28 in	Copper	0.25 Stud	0.55 in	13.97 mm	Non-Insulated	Gray	Rectangular Tongue	4 AWG	Barrel Crimp	0.09 in	2.29 mm	Two Stud Holes			Free Hanging (In-Line)		6.86 mm											0.27 in

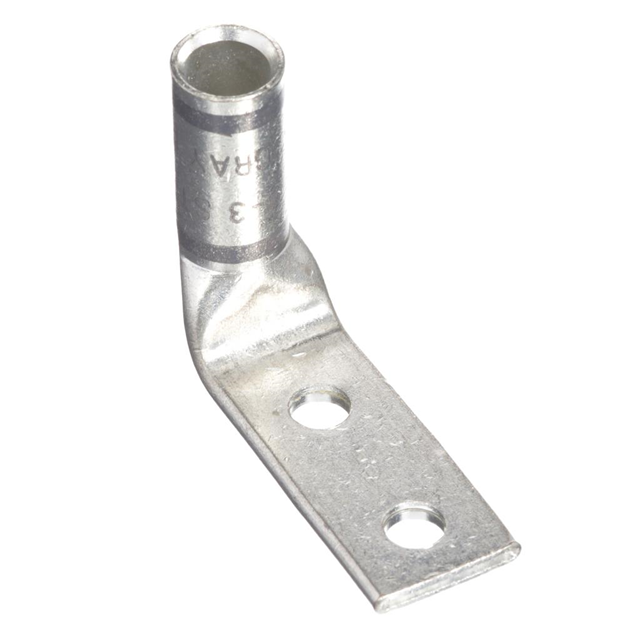

Panduit Corp LCD4-10AF-L	5.08 mm	0.2 in	0.38 in	9.65 mm	Electro-Tin	7.11 mm	0.28 in	Copper	10 Stud	0.55 in	13.97 mm	Non-Insulated	Gray	Rectangular Tongue	4 AWG	Barrel Crimp	0.09 in	2.29 mm	Two Stud Holes			Free Hanging (In-Line) Right Angle
Panduit Corp LCD4/0-38DF-X	10.41 mm	0.41 "	0.71 in	18.03 mm	Electro-Tin			Copper	0.375 Stud			Non-Insulated	Purple	Rectangular Tongue	4 aught AWG	Barrel Crimp			Two Stud Holes			Free Hanging (In-Line) Right Angle					0.14 in	3.56 mm		1.06 in		26.92 mm	0.57 "	14.48 mm
