1571552 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN IC DIP SOCKET 20POS TIN

Part	Termination Post Length	Termination Post Length	Material Flammability Rating	Contact Resistance	Contact Material - Post [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Housing Material	Number of Positions or Pins (Grid)	Termination	Contact Material - Mating	Type	Type	Type	Mounting Type	Features	Pitch - Post	Pitch - Post	Contact Finish - Post	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [y]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Type [custom]	Type [custom]	Number of Positions or Pins (Grid) [custom]	Current Rating (Amps)

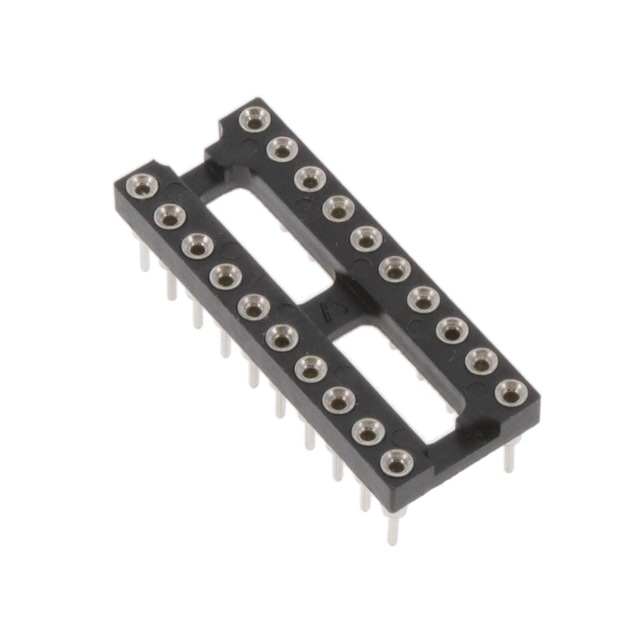

TE Connectivity AMP Connectors 1571552-6	0.125 in	3.18 mm	UL94 V-0	10 mOhm	Copper	-55 C	105 ░C	0.1 "	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	20	Solder	Beryllium Copper	7.62 mm	0.3 in	DIP	Through Hole	Open Frame	0.1 in	2.54 mm	Tin
TE Connectivity AMP Connectors 1-1571552-6	0.125 in	3.18 mm	UL94 V-0	10 mOhm	Copper	-55 C	105 ░C	0.1 "	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	24	Solder	Beryllium Copper	7.62 mm	0.3 in	DIP	Through Hole	Open Frame	0.1 in	2.54 mm	Tin	12	2

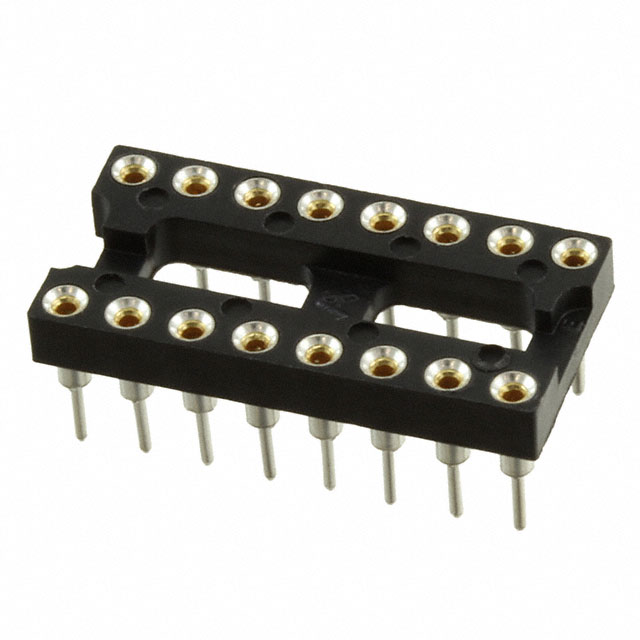

TE Connectivity AMP Connectors 4-1571552-4	0.125 in	3.18 mm	UL94 V-0	10 mOhm	Copper	-55 C	105 ░C	0.1 "	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	16	Solder	Beryllium Copper	7.62 mm	0.3 in	DIP	Through Hole	Open Frame	0.1 in	2.54 mm	Gold			20 µin	0.51 µm	0.51 µm	20 µin	Gold	2	8
TE Connectivity AMP Connectors 5-1571552-4	0.125 in	3.18 mm	UL94 V-0	10 mOhm	Copper	-55 C	105 ░C	0.1 "	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester		Solder	Beryllium Copper			DIP	Through Hole	Open Frame	0.1 in	2.54 mm	Gold	24	2	20 µin	0.51 µm	0.51 µm	20 µin	Gold			15.24 mm	0.6 in	48

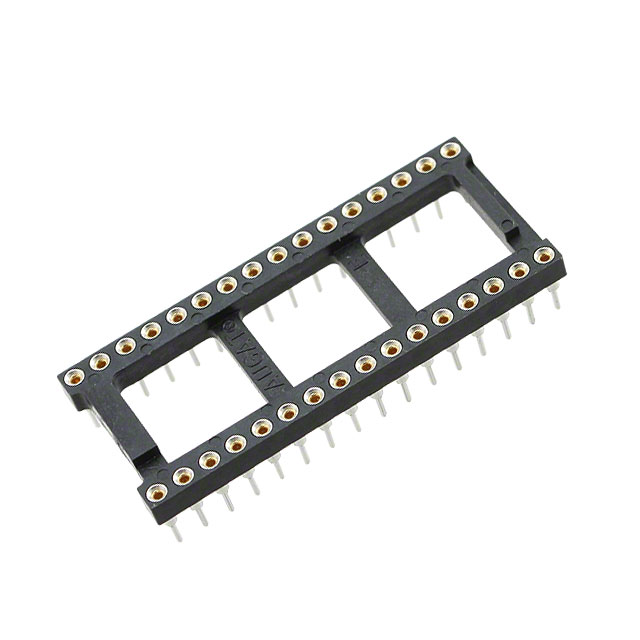

TE Connectivity AMP Connectors 5-1571552-0	0.125 in	3.18 mm	UL94 V-0	10 mOhm	Copper	-55 C	105 ░C	0.1 "	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	32	Solder	Beryllium Copper			DIP	Through Hole	Open Frame	0.1 in	2.54 mm	Gold			20 µin	0.51 µm	0.51 µm	20 µin	Gold			15.24 mm	0.6 in

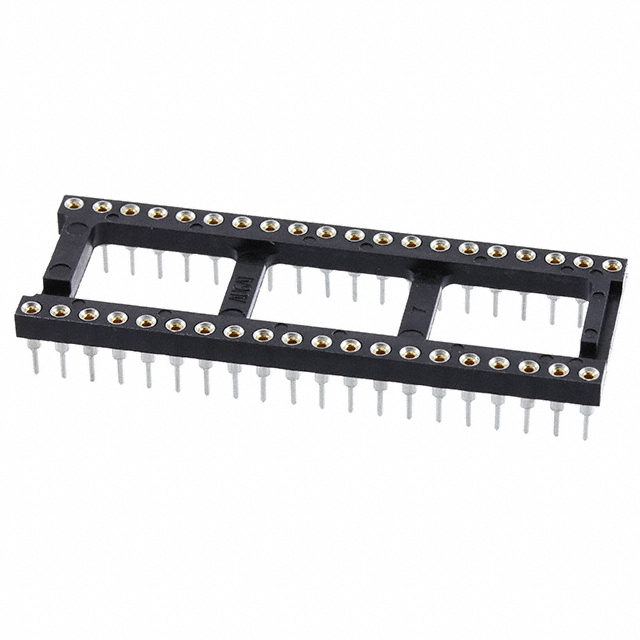

TE Connectivity AMP Connectors 5-1571552-2	0.125 in	3.18 mm	UL94 V-0	10 mOhm	Copper Alloy	-55 C	105 ░C	0.1 "	2.54 mm	Polyester	40	Solder	Copper Alloy			DIP	Through Hole	Open Frame	0.1 in	2.54 mm	Tin-Lead					0.51 µm	20 µin	Gold			15.24 mm	0.6 in		3 A
TE Connectivity AMP Connectors 5-1571552-1	0.125 in	3.18 mm	UL94 V-0	10 mOhm	Copper	-55 C	105 ░C	0.1 "	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	36	Solder	Beryllium Copper			DIP	Through Hole	Open Frame	0.1 in	2.54 mm	Gold			20 µin	0.51 µm	0.51 µm	20 µin	Gold			15.24 mm	0.6 in
