SRD2-1A Series

Catalog

SWITCH ROCKER SPST 21A 125V

Part	Mechanical Life (Cycles)	Electrical Life (Cycles)	Panel Cutout Width	Panel Cutout Shape	Panel Cutout Length	Quick Connect Size (0.250")	Termination Style	Color - Actuator/Cap	Actuator Type	Actuator Marking	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Ingress Protection IP Rating	Ingress Protection Description	Circuit	Switch Function	Voltage Rating - DC	Voltage Rating - AC	Current Rating	Illumination Voltage (Nominal)	Color	Illumination Type

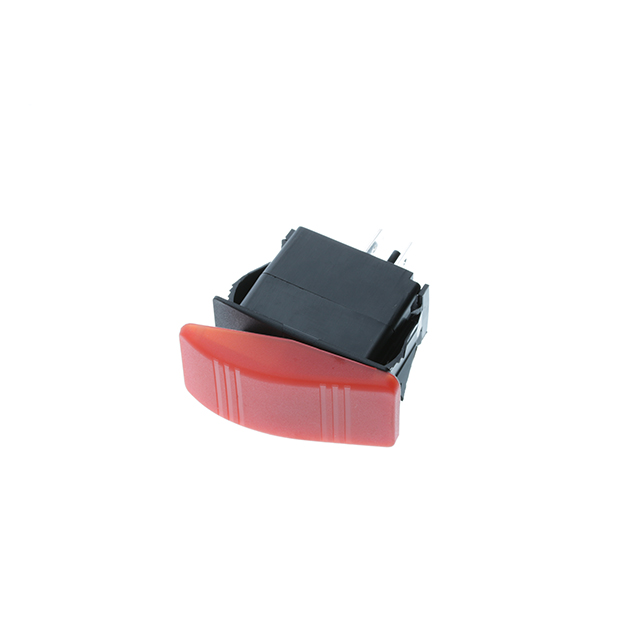

Switch Components SRD2-1A-DC-1-RNN	10000 Cycles	6000 Cycles	21.2 mm	Rectangular	36.8 mm	0.25 in	Quick Connect	Red	Convex (Reverse V)	No Marking	85 °C	-25 °C	Panel Mount Snap-In	IP56	Dust Protected Water Resistant	SPST	On-Off	14 V	125 V	20 A 21 A
Switch Components SRD2-1A-DC-1-BNN	10000 Cycles	6000 Cycles	21.2 mm	Rectangular	36.8 mm	0.25 in	Quick Connect	Black	Convex (Reverse V)	No Marking	85 °C	-25 °C	Panel Mount Snap-In	IP56	Dust Protected Water Resistant	SPST	On-Off	14 V	125 V	20 A 21 A

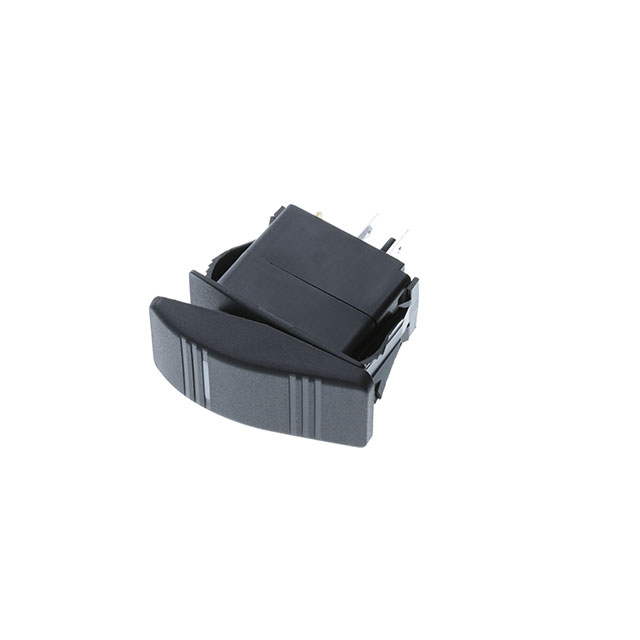

Switch Components SRD2-1A-DC-1-BAN	10000 Cycles	6000 Cycles	21.2 mm	Rectangular	36.8 mm	0.25 in	Quick Connect	Black	Convex (Reverse V) Illuminated	No Marking	85 °C	-25 °C	Panel Mount Snap-In	IP56	Dust Protected Water Resistant	SPST	On-Off	14 V		21 A	14 VAC/DC	Amber	LED

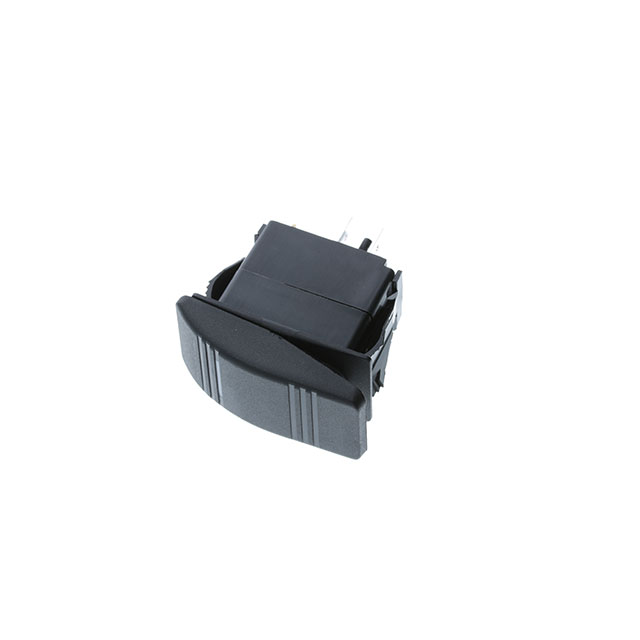

Switch Components SRD2-1A-DC-1-BRN	10000 Cycles	6000 Cycles	21.2 mm	Rectangular	36.8 mm	0.25 in	Quick Connect	Black	Convex (Reverse V) Illuminated	No Marking	85 °C	-25 °C	Panel Mount Snap-In	IP56	Dust Protected Water Resistant	SPST	On-Off	14 V		21 A	14 VAC/DC	Red	LED

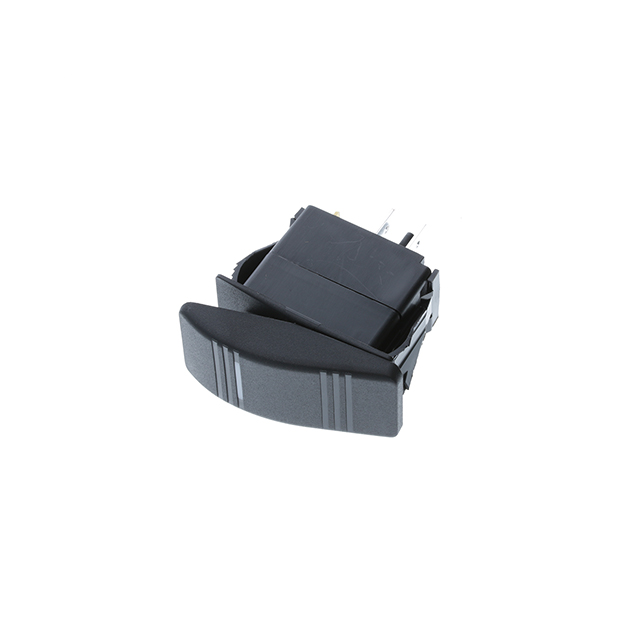

Switch Components SRD2-1A-DC-1-BGN	10000 Cycles	6000 Cycles	21.2 mm	Rectangular	36.8 mm	0.25 in	Quick Connect	Black	Convex (Reverse V) Illuminated	No Marking	85 °C	-25 °C	Panel Mount Snap-In	IP56	Dust Protected Water Resistant	SPST	On-Off	14 V		21 A	14 VAC/DC	Green	LED
