902012 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

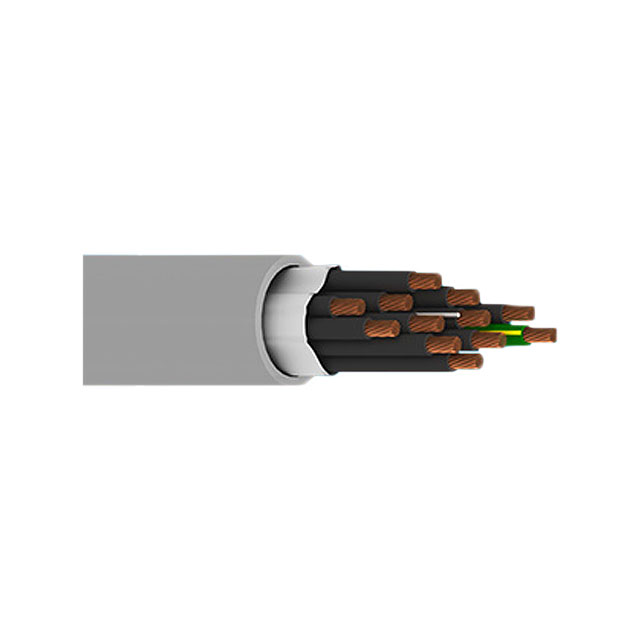

CABLE 12COND 20AWG SLATE FEET
| Part | Spool Size [x] | Spool Size [x] | Number of Conductors | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Voltage | Usage | Length | Wire Gauge | Conductor Insulation | Conductor Insulation | Conductor Insulation | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 304.8 m | 1000 ft | 12 | Thermoplastic Elastomer (TPE) | 11.51 mm | 0.453 in | 1.397 mm | 0.055 in | Multi-Conductor | -30 ░C | 90 °C | 10 | 30 AWG | Copper Bare | 600 V | Industrial | Enter Number of Feet in Order Quantity | 20 AWG | Polyamide (PA) | Nylon | Poly-Vinyl Chloride (PVC) | Slate |
