ANR-7.5 Series
Manufacturer: OptiFuse
Beta
⌘K

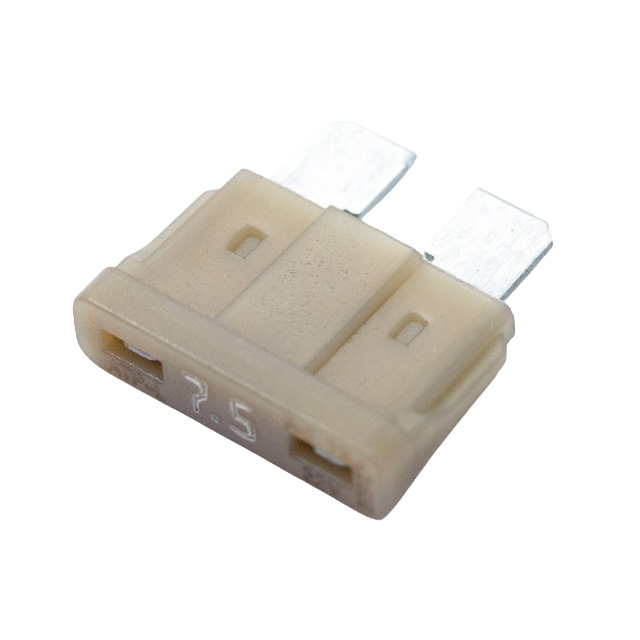

FUSE AUTO 7.5A 32VDC BLADE
| Part | Approval Agency | Voltage Rating - DC | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Fuse Type | Color | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Breaking Capacity @ Rated Voltage | Package / Case | Response Time | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 OptiFuse | ISO SAE | 32 V | 0.494 " | 5 mm | 19.3 mm | 12.54 mm | 0.197 " | 0.76 " | Automotive | Brown | 7.5 A | -40 C | 105 ░C | 1 kA | Blade ATO/ATC | Fast Blow | Requires Holder |
