2169791 Series

Catalog

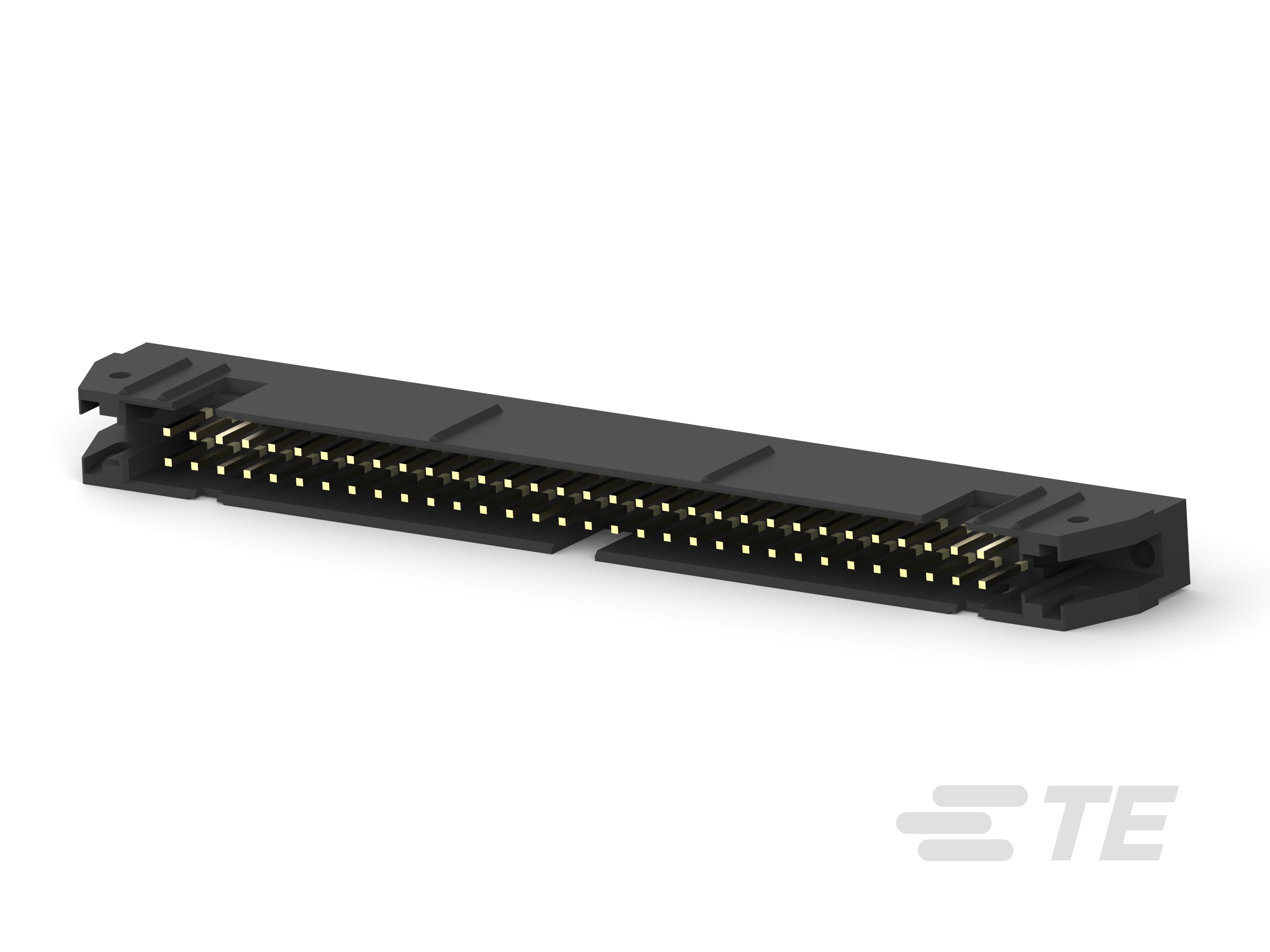

CONN EJECTOR HEADER HDR 44 POS 2.54MM SOLDER ST THRU-HOLE

Part	Contact Finish - Post	Insulation Color	Contact Material	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Connector Type	Voltage Rating	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating [x]	Material Flammability Rating	Insulation Height	Insulation Height	Style	Number of Positions	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Contact Type	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Shrouding	Termination
TE Connectivity Raychem Cable Protection 2169791-1	Tin	Black	Phosphor Bronze	0.1 in	2.54 mm	21	17.86 mm	0.703 in	2.54 mm	0.1 in	Through Hole	30 Áin	0.76 Ám	2	Header	250 VAC	1 A	6.1 mm	0.24 in	UL94 V-0	0.549 in	13.94 mm	Board to Cable/Wire	44	Push-Pull	2.54 µm	100 µin	Gold or Gold-Palladium	Male Pin	Square	-65 ░C	105 ░C	4.42 mm	0.174 in	Shrouded - 4 Wall	Press-Fit Solder
