5152C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

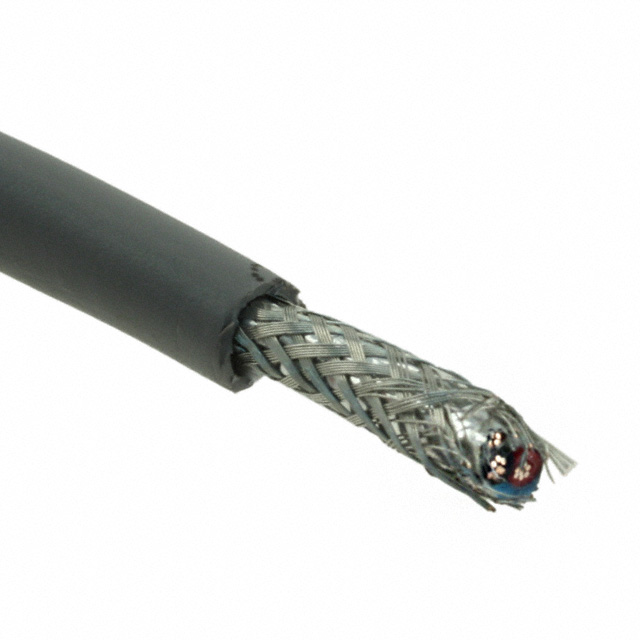

CABLE 2COND 20AWG BLK SHLD 1000'
| Part | Shield Material | Shield Coverage | Conductor Insulation | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Cable Type | Jacket (Insulation) Material | Usage | Shield Type | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | Poly-Vinyl Chloride (PVC) | Biological Compatibility Drain Wire Rip Cord | 0.813 mm | 0.032 in | 304.8 m | 1000 ft | 2 | 0.236 " | 5.99 mm | Black | -35 °C | 105 ░C | Copper Tinned | ISO 10993 UL Style 2464 | 28 AWG | 7 | 300 VDC | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Communication Control | Braid Foil | 20 AWG |
 ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | Poly-Vinyl Chloride (PVC) | Biological Compatibility Drain Wire Rip Cord | 0.813 mm | 0.032 in | 2 | 0.236 " | 5.99 mm | Slate | -35 °C | 105 ░C | Copper Tinned | ISO 10993 UL Style 2464 | 28 AWG | 7 | 300 VDC | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Communication Control | Braid Foil | 20 AWG | ||
ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | Poly-Vinyl Chloride (PVC) | Biological Compatibility Drain Wire Rip Cord | 0.813 mm | 0.032 in | 152.4 m | 500 ft | 2 | 0.236 " | 5.99 mm | Slate | -35 °C | 105 ░C | Copper Tinned | ISO 10993 UL Style 2464 | 28 AWG | 7 | 300 VDC | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Communication Control | Braid Foil | 20 AWG |
