A3UL-TBG Series

Manufacturer: Omron Automation and Safety

Catalog

SWITCH PUSHBUTTON DPDT 0.1A 30V

Part	Electrical Life	Mechanical Life	Voltage Rating - DC	Actuator Marking	Current Rating (Amps)	Illumination Type, Color	Panel Cutout Dimensions [diameter]	Mounting Type	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Voltage (Nominal)	Type	Actuator Type	Termination Style	Switch Function	Color - Actuator/Cap	Circuit

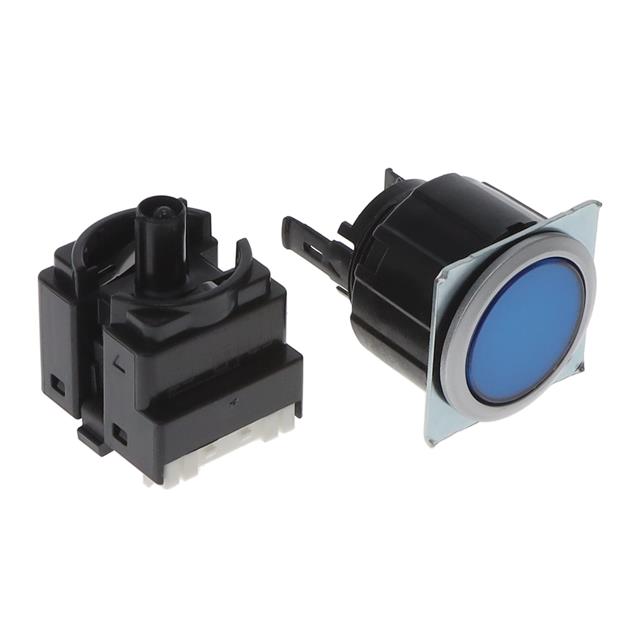

Omron Automation and Safety A3UL-TBG-2A2C-5M	200000 Cycles	1000000 Cycles	30 V	No Marking	100 mA	Green LED	25.2 mm	Panel Mount Front	IP65	55 °C	-20 ░C	12 VDC	Illuminated Standard	Button Flush Round	Connector	On-Mom	Clear	DPDT

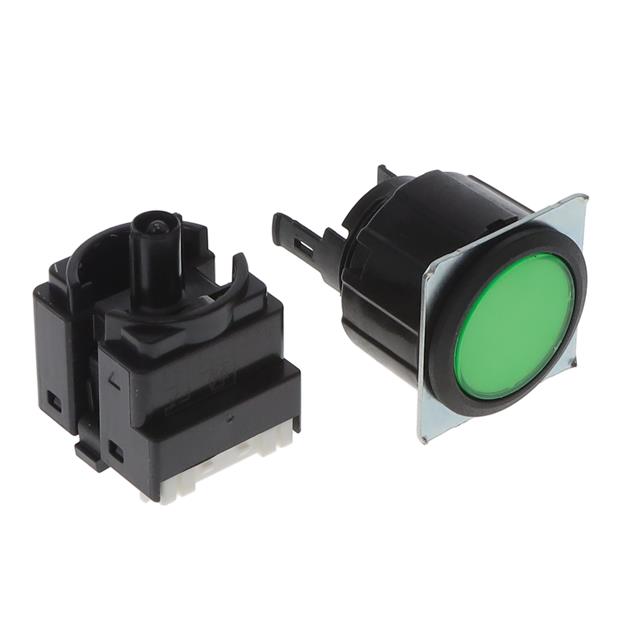

Omron Automation and Safety A3UL-TBG-1A1C-5M	200000 Cycles	1000000 Cycles	30 V	No Marking	100 mA	Green LED	25.2 mm	Panel Mount Front	IP65	55 °C	-20 ░C	5 VDC	Illuminated Standard	Button Flush Round	Connector	On-Mom	Clear	SPDT
Omron Automation and Safety A3UL-TBG-1A2C-M	200000 Cycles	1000000 Cycles	30 V	No Marking	100 mA	Green LED	25.2 mm	Panel Mount Front	IP40	55 °C	-20 ░C	5 VDC	Illuminated Standard	Button Flush Round	Connector	On-Mom	Clear	DPDT
Omron Automation and Safety A3UL-TBG-3A1C-5M	200000 Cycles	1000000 Cycles	30 V	No Marking	100 mA	Green LED	25.2 mm	Panel Mount Front	IP65	55 °C	-20 ░C	24 V	Illuminated Standard	Button Flush Round	Connector	On-Mom	Clear	SPDT
Omron Automation and Safety A3UL-TBG-2A2C-M	200000 Cycles	1000000 Cycles	30 V	No Marking	100 mA	Green LED	25.2 mm	Panel Mount Front	IP40	55 °C	-20 ░C	12 VDC	Illuminated Standard	Button Flush Round	Connector	On-Mom	Clear	DPDT
Omron Automation and Safety A3UL-TBG-3A2C-M	200000 Cycles	1000000 Cycles	30 V	No Marking	100 mA	Green LED	25.2 mm	Panel Mount Front	IP40	55 °C	-20 ░C	24 V	Illuminated Standard	Button Flush Round	Connector	On-Mom	Clear	DPDT

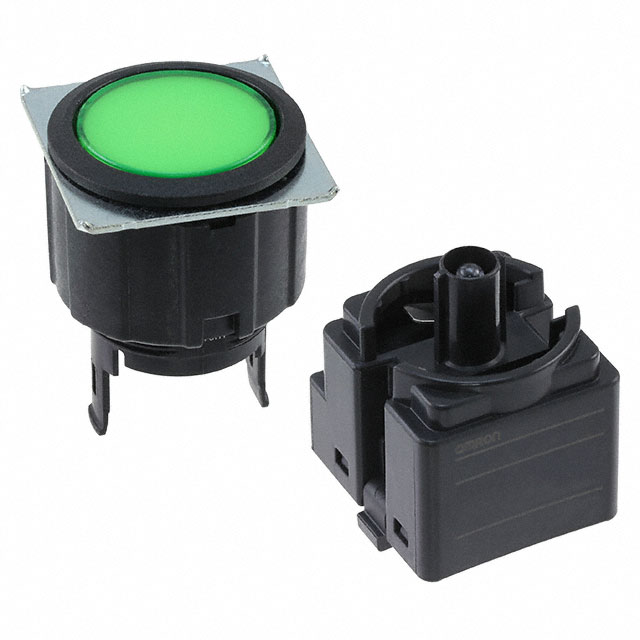

Omron Automation and Safety A3UL-TBG-3A1C-M	200000 Cycles	1000000 Cycles	30 V	No Marking	100 mA	Green LED	25.2 mm	Panel Mount Front	IP40	55 °C	-20 ░C	24 V	Illuminated Standard	Button Flush Round	Connector	On-Mom	Clear	SPDT

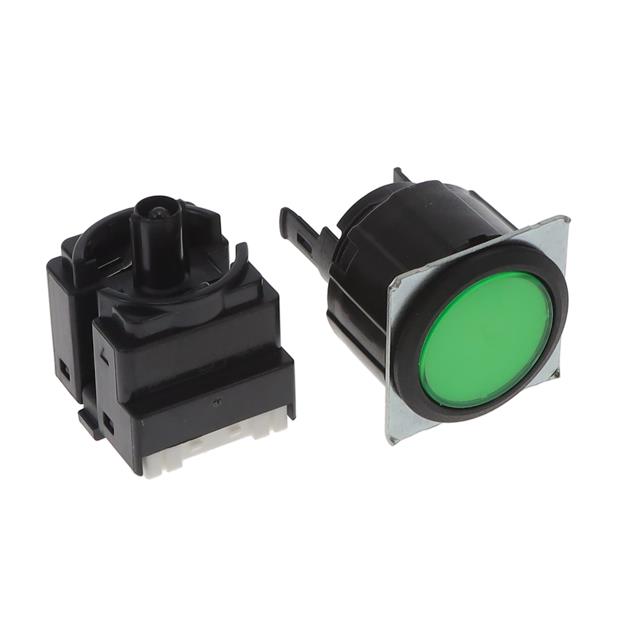

Omron Automation and Safety A3UL-TBG-1A2C-5M	200000 Cycles	1000000 Cycles	30 V	No Marking	100 mA	Green LED	25.2 mm	Panel Mount Front	IP65	55 °C	-20 ░C	5 VDC	Illuminated Standard	Button Flush Round	Connector	On-Mom	Clear	DPDT
