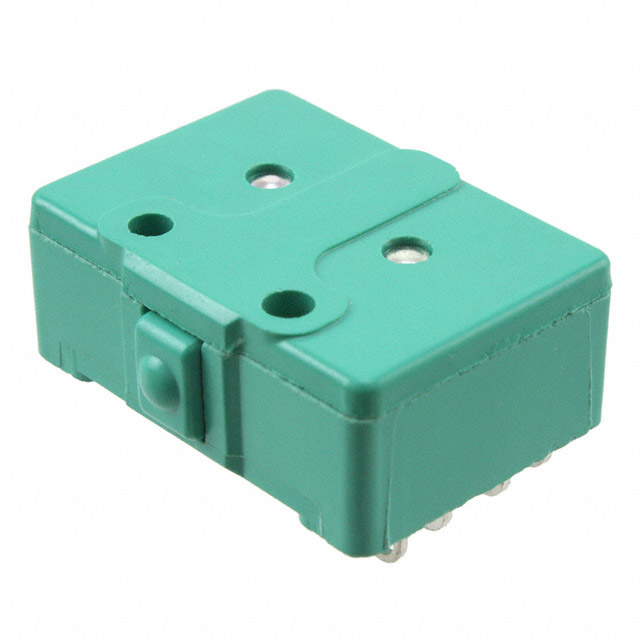

41TB5 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION N.O./N.C. 4PDT PIN PLUNGER 10A 250VAC 372.85VA 10N SCREW MOUNT SOLDER
| Part | Termination Style | Operating Position | Operating Position | Current Rating (Amps) | Mounting Type | Circuit | Switch Function | Release Force | Pretravel | Pretravel | Differential Travel | Differential Travel | Mechanical Life | Overtravel [custom] | Overtravel [custom] | Operating Force [Max] | Operating Force [Min] | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | Solder Lug | 4.7 mm | 0.185 in | 10 A | Chassis Mount | DPDT (DB/DM) | On-Mom | 227 gf | 0.07 in | 1.78 mm | 0.025 in | 0.6 mm | 7000000 Cycles | 0.01 " | 0.25 mm | 1021 gf | 567 gf | 125 V | 204 °C | -55 C | Round (Pin Plunger) |
