833-064 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 64POS 0.156

...

Part	Material - Insulation	Termination Rows [custom]	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Termination	Card Type	Gender	Contact Material	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row	Number of Positions	Read Out	Contact Finish	Mounting Type	Color	Pitch	Pitch	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Features
EDAC Inc. 833-064-500-802	Diallyl Phthalate (DAP)	2	2	0.25 Ám	10 Áin	Solder Eyelet(s)	Non Specified - Dual Edge	Female	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	32	64	Dual	Gold	Through Hole	Green	3.96 mm	0.156 in	Cantilever	125 °C	-40 C	3.25 mm	0.128 "

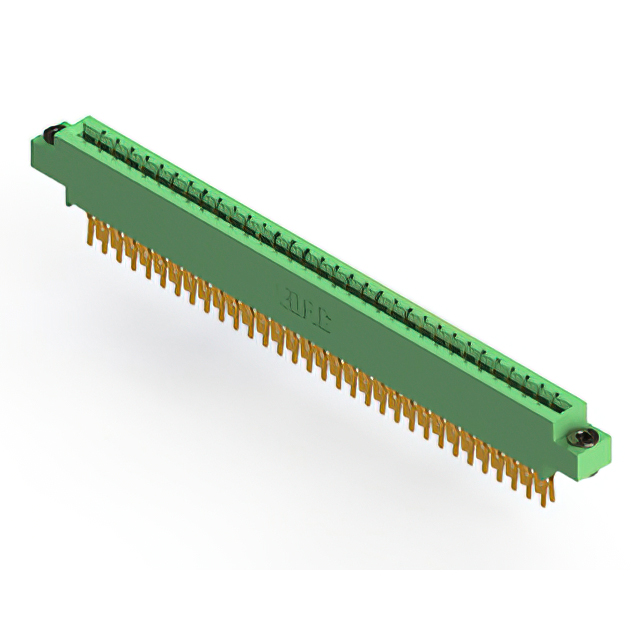

EDAC Inc. 833-064-560-803	Diallyl Phthalate (DAP)	2	2	0.25 Ám	10 Áin	Solder	Non Specified - Dual Edge	Female	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	32	64	Dual	Gold	Board Edge Straddle Mount	Green	3.96 mm	0.156 in	Cantilever	125 °C	-40 C	2.95 mm	0.116 "	Floating Bobbin Top Mount Opening	Card Extender
EDAC Inc. 833-064-544-802	Diallyl Phthalate (DAP)	2	2	0.25 Ám	10 Áin	Wire Wrap	Non Specified - Dual Edge	Female	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	32	64	Dual	Gold	Through Hole	Green	3.96 mm	0.156 in	Cantilever	125 °C	-40 C	3.25 mm	0.128 "

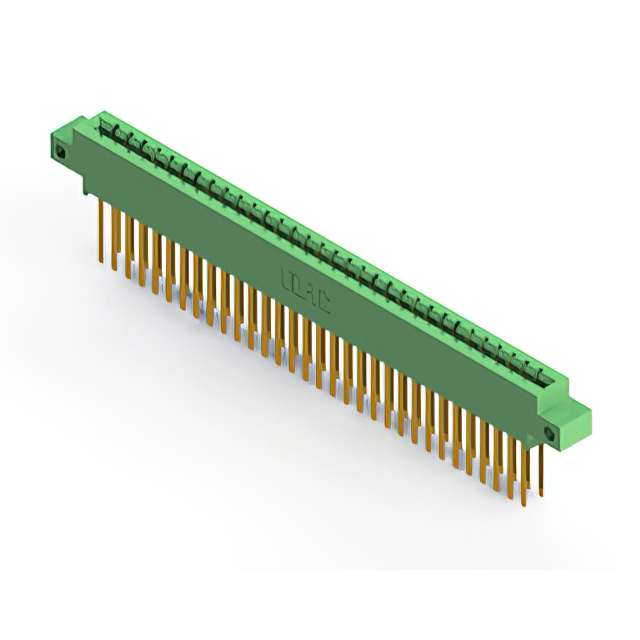

EDAC Inc. 833-064-544-812	Diallyl Phthalate (DAP)	2	2	0.25 Ám	10 Áin	Wire Wrap	Non Specified - Dual Edge	Female	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	32	64	Dual	Gold	Through Hole	Green	3.96 mm	0.156 in	Cantilever	125 °C	-40 C	3.25 mm	0.128 "	Side Mount Opening Unthreaded
EDAC Inc. 833-064-524-808	Diallyl Phthalate (DAP)	2	2	0.25 Ám	10 Áin	Solder	Non Specified - Dual Edge	Female	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	32	64	Dual	Gold	Through Hole	Green	3.96 mm	0.156 in	Cantilever	125 °C	-40 C			4-40 Threaded Insert Top Mount Opening
EDAC Inc. 833-064-556-202	Diallyl Phthalate (DAP)	2	2	0.25 Ám	10 Áin	Solder	Non Specified - Dual Edge	Female	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	32	64	Dual	Gold	Board Edge Straddle Mount	Green	3.96 mm	0.156 in	Cantilever	125 °C	-40 C	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Card Extender
EDAC Inc. 833-064-520-208	Diallyl Phthalate (DAP)	2	2	0.25 Ám	10 Áin	Solder	Non Specified - Dual Edge	Female	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	32	64	Dual	Gold	Through Hole	Green	3.96 mm	0.156 in	Cantilever	125 °C	-40 C			4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 833-064-520-807	Diallyl Phthalate (DAP)	2	2	0.25 Ám	10 Áin	Solder	Non Specified - Dual Edge	Female	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	32	64	Dual	Gold	Through Hole	Green	3.96 mm	0.156 in	Cantilever	125 °C	-40 C			M3 Threaded Insert Top Mount Opening
EDAC Inc. 833-064-523-812	Diallyl Phthalate (DAP)	2	2	0.25 Ám	10 Áin	Solder	Non Specified - Dual Edge	Female	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	32	64	Dual	Gold	Through Hole	Green	3.96 mm	0.156 in	Cantilever	125 °C	-40 C	3.25 mm	0.128 "	Side Mount Opening Unthreaded
EDAC Inc. 833-064-542-208	Diallyl Phthalate (DAP)	2	2	0.25 Ám	10 Áin	Wire Wrap	Non Specified - Dual Edge	Female	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	32	64	Dual	Gold	Through Hole	Green	3.96 mm	0.156 in	Cantilever	125 °C	-40 C			4-40 Flush Mount Threaded Insert Top Opening
