91596 Series

Catalog

CONN RCPT 8POS 0.079 GOLD SMD

Part	Voltage Rating	Material Flammability Rating	Contact Shape	Connector Type	Termination	Contact Finish - Post	Insulation Height	Insulation Height	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Type	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Style	Number of Positions	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Finish - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Material	Mounting Type	Contact Finish Thickness - Post	Features
Amphenol ICC (FCI) 91596-108	200 V	UL94 V-0	Square	Receptacle Bottom Entry	Solder	Tin-Lead	2.3 mm	0.091 in	Push-Pull	-55 °C	125 °C	Beryllium Copper	Female Socket	Black	0.079 in	2 mm	Board to Board Cable	8	2	30 Áin	0.76 Ám	All	Gold	0.079 in	2 mm	Plastic	Surface Mount

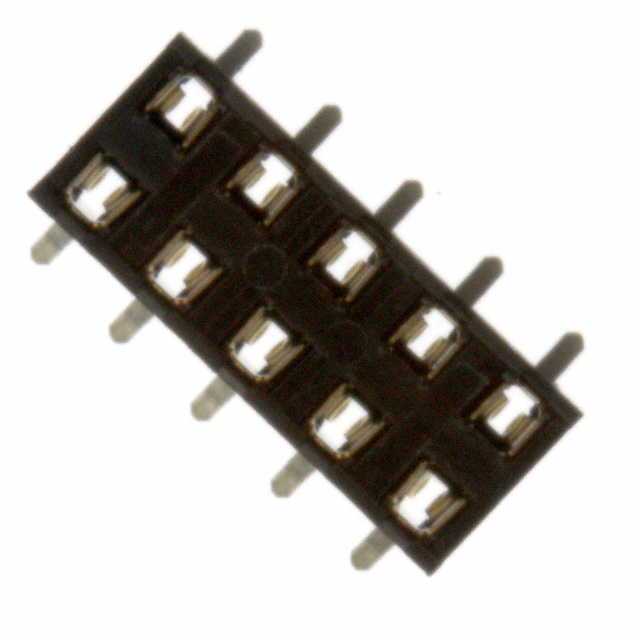

Amphenol ICC (FCI) 91596-110LF	200 V	UL94 V-0	Square	Receptacle Bottom Entry	Solder	Gold	2.3 mm	0.091 in	Push-Pull	-55 °C	125 °C	Beryllium Copper	Female Socket	Black	0.079 in	2 mm	Board to Board Cable	10	2	30 Áin	0.76 Ám	All	Gold	0.079 in	2 mm	Plastic	Surface Mount	Flash
Amphenol ICC (FCI) 91596-128	200 V	UL94 V-0	Square	Receptacle Bottom Entry	Solder	Tin-Lead	2.3 mm	0.091 in	Push-Pull	-55 °C	125 °C	Beryllium Copper	Female Socket	Black	0.079 in	2 mm	Board to Board Cable	28	2	30 Áin	0.76 Ám	All	Gold	0.079 in	2 mm	Plastic	Surface Mount
Amphenol ICC (FCI) 91596-326LF	200 V	UL94 V-0	Square	Receptacle Bottom Entry	Solder	Gold	2.3 mm	0.091 in	Push-Pull	-55 °C	125 °C	Beryllium Copper	Female Socket	Black	0.079 in	2 mm	Board to Board Cable	26	2	15 µin	0.38 µm	All	Gold	0.079 in	2 mm	Plastic	Surface Mount	Flash
Amphenol ICC (FCI) 91596-128TRLF	200 V	UL94 V-0	Square	Receptacle Bottom Entry	Solder	Gold	2.3 mm	0.091 in	Push-Pull	-55 °C	125 °C	Beryllium Copper	Female Socket	Black	0.079 in	2 mm	Board to Board Cable	28	2	30 Áin	0.76 Ám	All	Gold	0.079 in	2 mm	Plastic	Surface Mount	Flash	Pick and Place
Amphenol ICC (FCI) 91596-304	200 V	UL94 V-0	Square	Receptacle Bottom Entry	Solder	Tin-Lead	2.3 mm	0.091 in	Push-Pull	-55 °C	125 °C	Beryllium Copper	Female Socket	Black	0.079 in	2 mm	Board to Board Cable	4	2	15 µin	0.38 µm	All	Gold	0.079 in	2 mm	Plastic	Surface Mount
Amphenol ICC (FCI) 91596-508LF	200 V	UL94 V-0	Square	Receptacle Bottom Entry	Solder	Gold	2.3 mm	0.091 in	Push-Pull	-55 °C	125 °C	Beryllium Copper	Female Socket	Black	0.079 in	2 mm	Board to Board Cable	8	2	15 µin	0.38 µm	All	Gold GXT™	0.079 in	2 mm	Plastic	Surface Mount	Flash
Amphenol ICC (FCI) 91596-108TR	200 V	UL94 V-0	Square	Receptacle Bottom Entry	Solder	Tin-Lead	2.3 mm	0.091 in	Push-Pull	-55 °C	125 °C	Beryllium Copper	Female Socket	Black	0.079 in	2 mm	Board to Board Cable	8	2	30 Áin	0.76 Ám	All	Gold	0.079 in	2 mm	Plastic	Surface Mount		Pick and Place
Amphenol ICC (FCI) 91596-006TR	200 V	UL94 V-0	Square	Receptacle Bottom Entry	Solder	Tin-Lead	2.3 mm	0.091 in	Push-Pull	-55 °C	125 °C	Beryllium Copper	Female Socket	Black	0.079 in	2 mm	Board to Board Cable	6	2	8 Áin	0.203 Ám	All	Gold	0.079 in	2 mm	Plastic	Surface Mount		Pick and Place

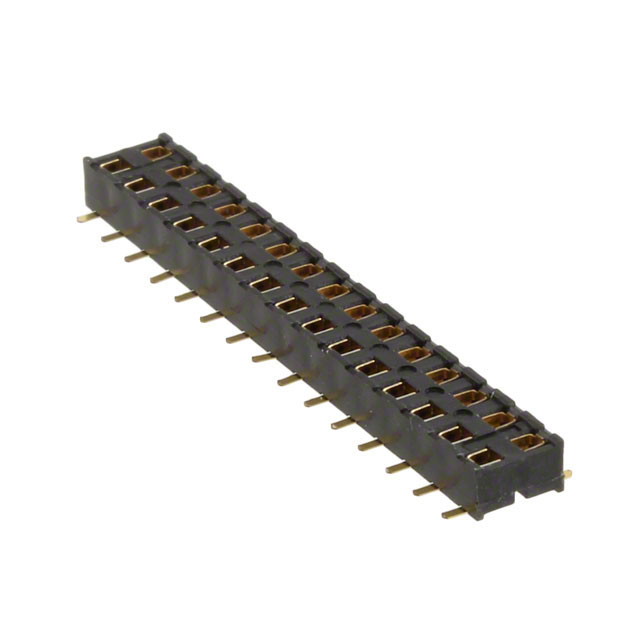

Amphenol ICC (FCI) 91596-130TRLF	200 V	UL94 V-0	Square	Receptacle Bottom Entry	Solder	Gold	2.3 mm	0.091 in	Push-Pull	-55 °C	125 °C	Beryllium Copper	Female Socket	Black	0.079 in	2 mm	Board to Board Cable	30	2	30 Áin	0.76 Ám	All	Gold	0.079 in	2 mm	Plastic	Surface Mount	Flash	Pick and Place
