621-025 Series
Manufacturer: EDAC Inc.
Beta
⌘K

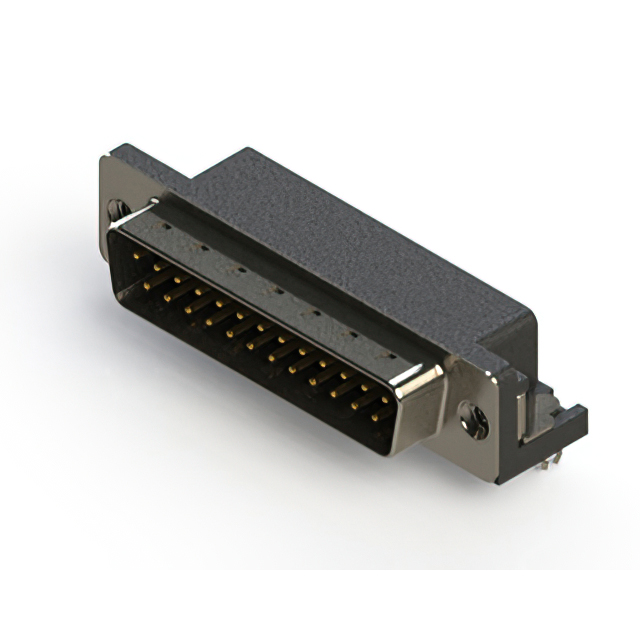

621 SERIES RIGHT ANGLE D-SUB PLU
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Contact Material | Color | Current Rating (Amps) | Material Flammability Rating | Termination | Number of Rows [custom] | Features | Shell Material, Finish | Number of Positions | Backset Spacing | Backset Spacing | Contact Finish | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Connector Style | Contact Type | Flange Feature | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Flange Feature | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

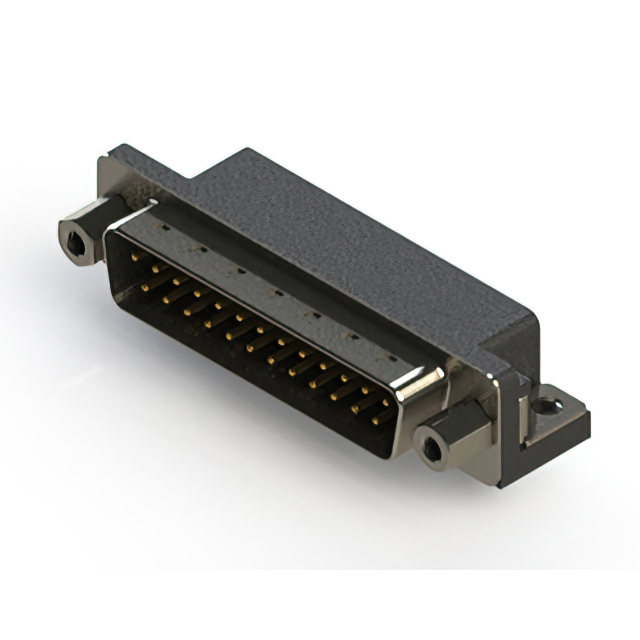

 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Copper Alloy | Black | 3 A | UL94 V-0 | Solder | 2 | Board Lock Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | 25 | 8.08 mm | 0.318 " | Gold | B DB | 3 | D-Sub | Signal | Mating Side Female Screwlock (M3) | Board Edge Right Angle Through Hole | 0.38 µm | 15 µin | Plug Male Pins | ||

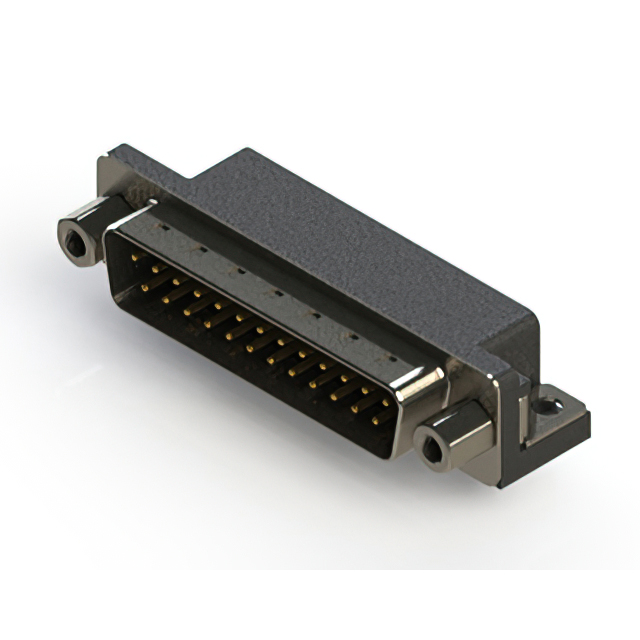

 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Copper Alloy | Black | 3 A | UL94 V-0 | Solder | 2 | Board Lock Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | 25 | 8.08 mm | 0.318 " | Gold | B DB | 3 | D-Sub | Signal | Housing/Shell | Board Edge Right Angle Through Hole | 0.76 Ám | 30 Áin | Plug Male Pins | 4-40 | |

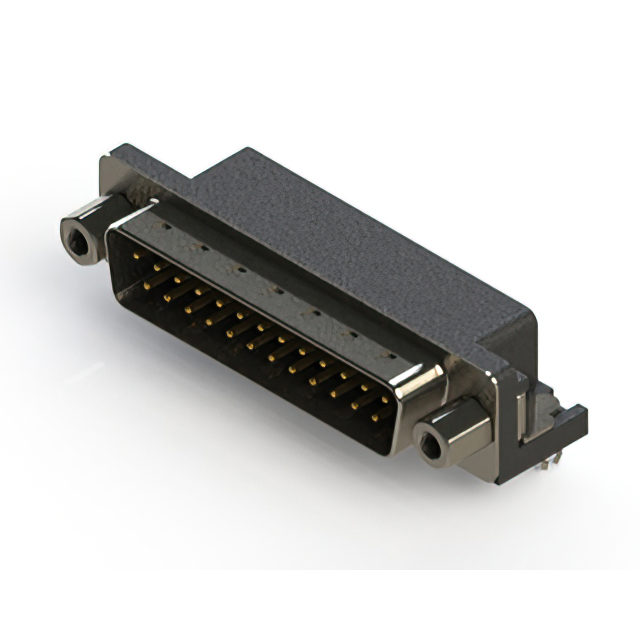

 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Copper Alloy | Black | 3 A | UL94 V-0 | Solder | 2 | Board Lock Filter Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | 25 | 8.08 mm | 0.318 " | Gold | B DB | 3 | D-Sub | Signal | Housing/Shell (M3) | Board Edge Right Angle Through Hole | 0.76 Ám | 30 Áin | Plug Male Pins | ||

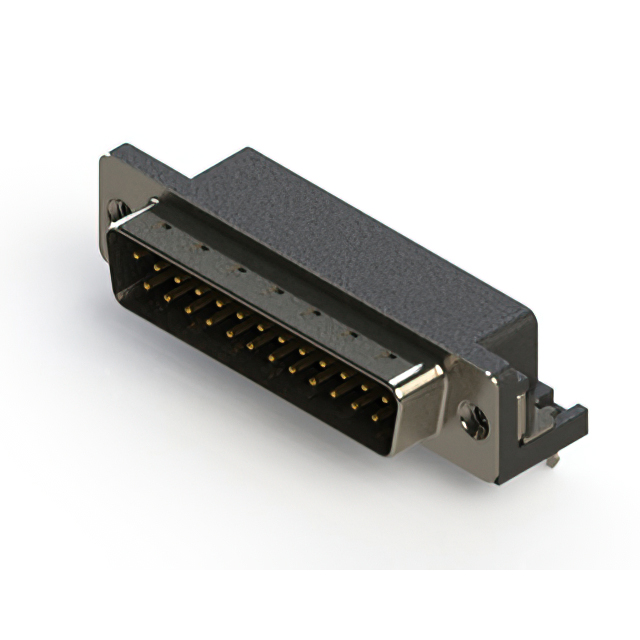

 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | 3 A | UL94 V-0 | Solder | 2 | Board Lock Filter Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | 25 | 8.08 mm | 0.318 " | Gold | B DB | 3 | D-Sub | Signal | 4-40 | Board Edge Right Angle Through Hole | 0.38 µm | 15 µin | Plug Male Pins | ||

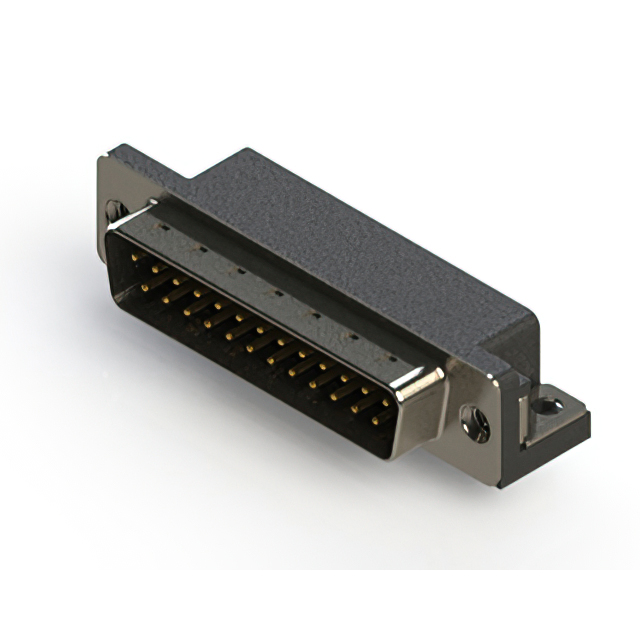

 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | 3 A | UL94 V-0 | Solder | 2 | Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | 25 | 8.08 mm | 0.318 " | Gold | B DB | 3 | D-Sub | Signal | Housing/Shell | Board Edge Right Angle Through Hole | Plug Male Pins | 4-40 | Flash | ||

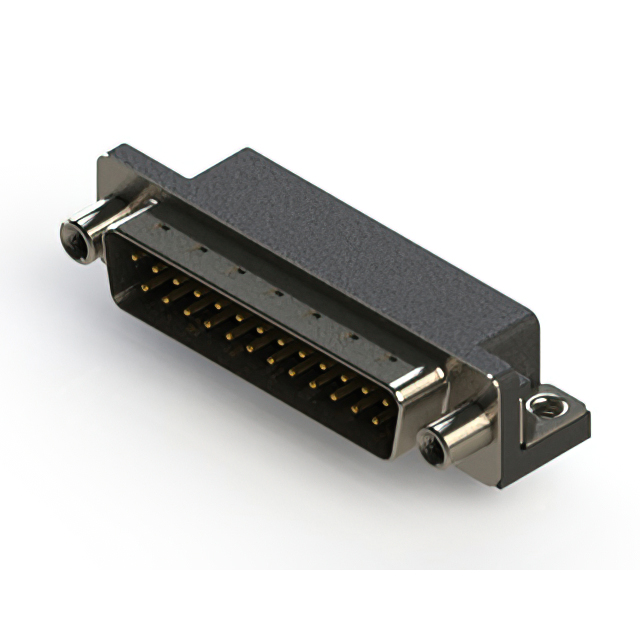

 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | 3 A | UL94 V-0 | Solder | 2 | Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | 25 | 8.08 mm | 0.318 " | Gold | B DB | 3 | D-Sub | Signal | Housing/Shell (Unthreaded) | Board Edge Right Angle Through Hole | Plug Male Pins | Flash | |||

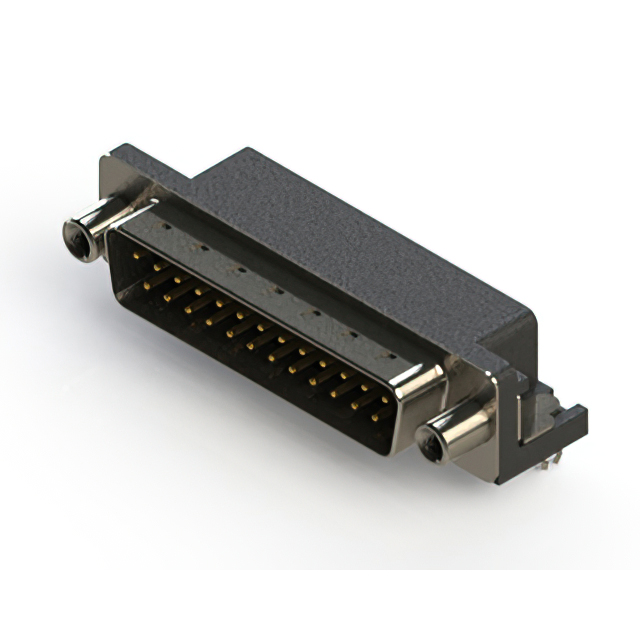

 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | 3 A | UL94 V-0 | Solder | 2 | Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | 25 | 8.08 mm | 0.318 " | Gold | B DB | 3 | D-Sub | Signal | Mating Side Female Screwlock (M3) | Board Edge Right Angle Through Hole | 0.76 Ám | 30 Áin | Plug Male Pins | ||

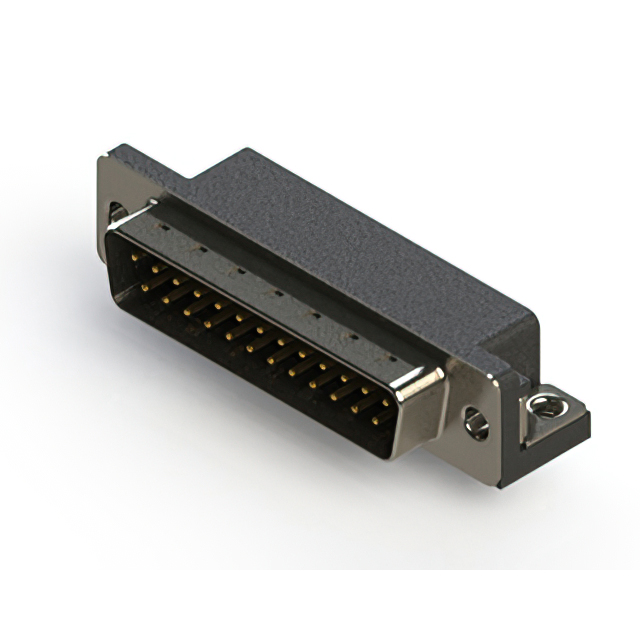

 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Copper Alloy | Black | 3 A | UL94 V-0 | Solder | 2 | Filter Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | 25 | 8.08 mm | 0.318 " | Gold | B DB | 3 | D-Sub | Signal | 4-40 | Board Edge Right Angle Through Hole | 0.38 µm | 15 µin | Plug Male Pins | ||
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | 3 A | UL94 V-0 | Solder | 2 | Filter Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | 25 | 8.08 mm | 0.318 " | Gold | B DB | 3 | D-Sub | Signal | Mating Side Female Screwlock (M3) | Board Edge Right Angle Through Hole | Plug Male Pins | Flash | |||
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | 3 A | UL94 V-0 | Solder | 2 | Filter Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | 25 | 8.08 mm | 0.318 " | Gold | B DB | 3 | D-Sub | Signal | 4-40 Mating Side Female Screwlock | Board Edge Right Angle Through Hole | 0.38 µm | 15 µin | Plug Male Pins |
