LPPB132 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

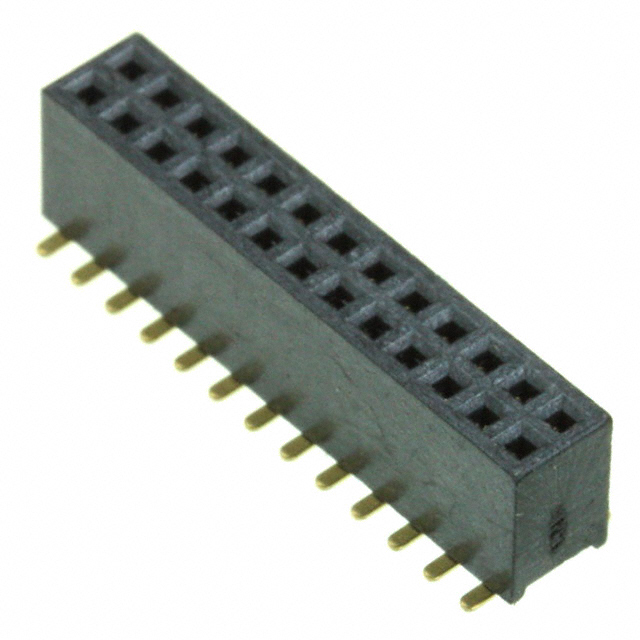

CONN HDR 26POS 0.05 GOLD SMD
| Part | Contact Material | Insulation Material | Contact Finish Thickness - Post | Contact Shape | Mounting Type | Number of Positions Loaded | Contact Finish - Post | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Features | Number of Positions | Insulation Height | Insulation Height | Insulation Color | Number of Rows [custom] | Row Spacing - Mating | Row Spacing - Mating | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Contact Finish Thickness - Mating | Fastening Type | Contact Finish - Mating | Contact Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Flash | Square | Surface Mount | All | Gold | Header Top or Bottom Entry | 125 °C | -40 C | Board Guide | 26 | 4.65 mm | 0.183 in | Black | 2 | 0.05 in | 1.27 mm | 1.27 mm | 0.05 in | UL94 V-0 | Flash | Push-Pull | Gold | Female Socket | Solder |
