325-102 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FML 102POS 0.100
| Part | Material - Insulation | Termination Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Read Out | Card Type | Gender | Number of Positions/Bay/Row [custom] | Contact Material | Card Thickness | Card Thickness | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Pitch | Pitch | Mounting Type | Termination | Number of Positions | Flange Feature | Color | Contact Finish | Number of Rows [custom] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

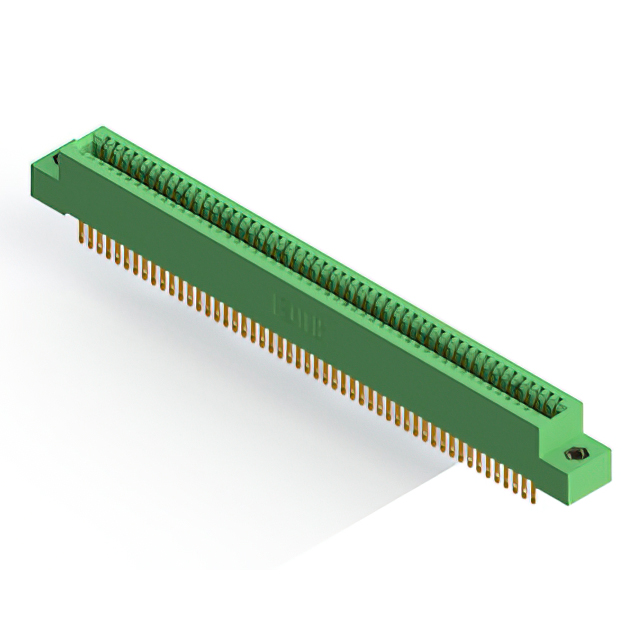

 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 0.25 Ám | 10 Áin | Dual | Non Specified - Dual Edge | Female | 51 | Copper Alloy | 3.18 mm | 0.125 in | Cantilever | -65 ░C | 125 °C | 0.1 " | 2.54 mm | Through Hole | Wire Wrap | 102 | Flush Mount M3 Threaded Insert Top Opening | Green | Gold | 2 | ||

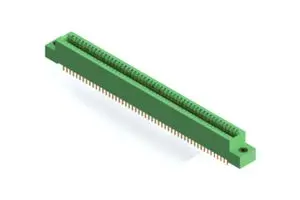

 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 0.25 Ám | 10 Áin | Dual | Non Specified - Dual Edge | Female | 51 | Copper Alloy | 3.18 mm | 0.125 in | Cantilever | -65 ░C | 125 °C | 0.1 " | 2.54 mm | Through Hole | Solder Eyelet(s) | 102 | 4-40 Flush Mount Threaded Insert Top Opening | Green | Gold | 2 | ||
EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 0.25 Ám | 10 Áin | Dual | Non Specified - Dual Edge | Female | 51 | Copper Alloy | 3.18 mm | 0.125 in | Cantilever | -65 ░C | 125 °C | 0.1 " | 2.54 mm | Through Hole | Wire Wrap | 102 | Flush Mount Top Opening Unthreaded | Green | Gold | 2 | 0.16 " | 4.06 mm |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 0.25 Ám | 10 Áin | Dual | Non Specified - Dual Edge | Female | 51 | Copper Alloy | 3.18 mm | 0.125 in | Cantilever | -65 ░C | 125 °C | 0.1 " | 2.54 mm | Through Hole | Solder | 102 | Flush Mount M3 Threaded Insert Top Opening | Green | Gold | 2 | ||

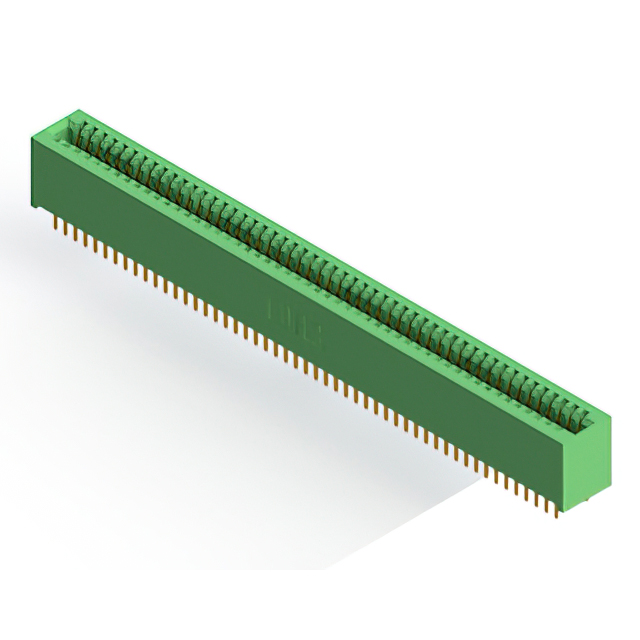

 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 0.25 Ám | 10 Áin | Dual | Non Specified - Dual Edge | Female | 51 | Copper Alloy | 3.18 mm | 0.125 in | Cantilever | -65 ░C | 125 °C | 0.1 " | 2.54 mm | Through Hole | Solder | 102 | Green | Gold | 2 | |||
EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 0.25 Ám | 10 Áin | Dual | Non Specified - Dual Edge | Female | 51 | Copper Alloy | 3.18 mm | 0.125 in | Cantilever | -65 ░C | 125 °C | 0.1 " | 2.54 mm | Through Hole | Wire Wrap | 102 | Green | Gold | 2 | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 0.25 Ám | 10 Áin | Dual | Non Specified - Dual Edge | Female | 51 | Copper Alloy | 3.18 mm | 0.125 in | Cantilever | -65 ░C | 125 °C | 0.1 " | 2.54 mm | Through Hole | Solder | 102 | 4-40 Flush Mount Threaded Insert Top Opening | Green | Gold | 2 |
