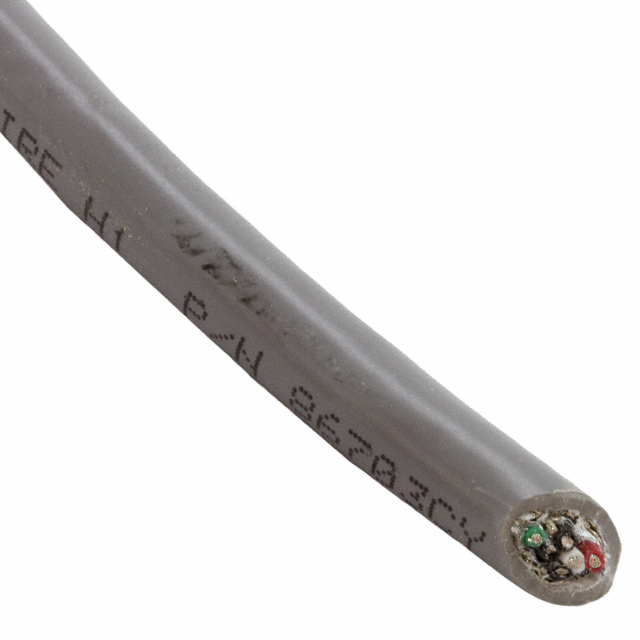

86703CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-PAIR 6COND 22AWG 1000'
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Features | Jacket Color | Number of Conductors | Jacket (Insulation) Material | Length | Length | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Shield Type | Wire Gauge | Conductor Material | Cable Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 85 % 100 % | Aluminum Copper Tinned | 0.301 in | 7.65 mm | ISO 10993 UL Style 2661 | 34 AWG | 19 | Biological Compatibility Drain Wire | Slate | 6 | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | 1.016 mm | 0.04 in | 300 VDC | Braid Foil | 22 AWG | Copper Tinned | Multi-Pair | ||
ALPHA WIRE | 85 % 100 % | Aluminum Copper Tinned | 0.301 in | 7.65 mm | ISO 10993 UL Style 2661 | 34 AWG | 19 | Biological Compatibility Drain Wire | Slate | 6 | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 1.016 mm | 0.04 in | 300 VDC | Braid Foil | 22 AWG | Copper Tinned | Multi-Pair | 100 ft | 30.5 m |
