GF-1123 Series

Catalog

SWITCH SLIDE SPST 11A 125V

Part	Mechanical Life	Switch Travel	Actuator Material	Electrical Life	Actuator Length [x]	Voltage Rating - AC	Actuator Type	Circuit	Contact Timing	Termination Style	Switch Function	Voltage Rating - DC	Mounting Type	Contact Material	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Features

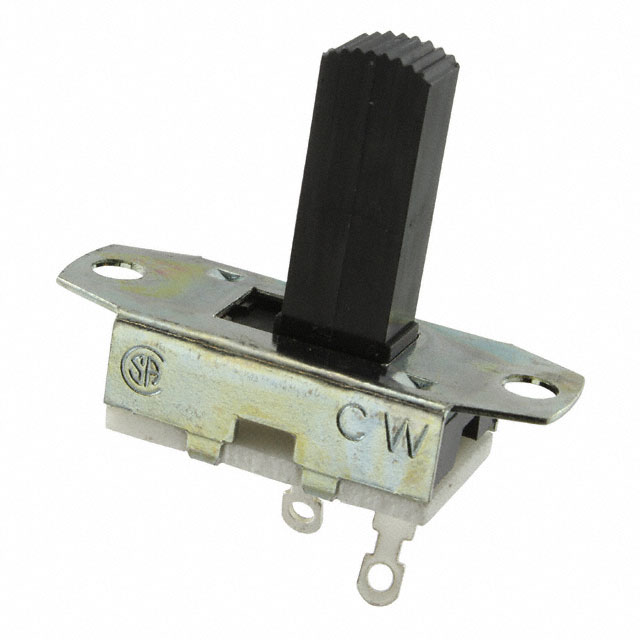

CW Industries GF-1123-0013	10000 Steps	4.01 mm	Nylon 6/6 Polyamide (PA66)	6000 Cycles	19.05 mm	125 V	Standard	SPST	Not Specified	Wire Wrap	On-Off	125 VDC	Panel Mount	Copper	Silver	-10 °C	104 °C	11 A 500 mA
CW Industries GF-1123-0000	10000 Steps	4.01 mm	Nylon 6/6 Polyamide (PA66)	6000 Cycles	8.74 mm	125 V	Standard	SPST	Not Specified	Solder Lug	On-Off	125 VDC	Panel Mount	Copper	Silver	-10 °C	104 °C	11 A 500 mA

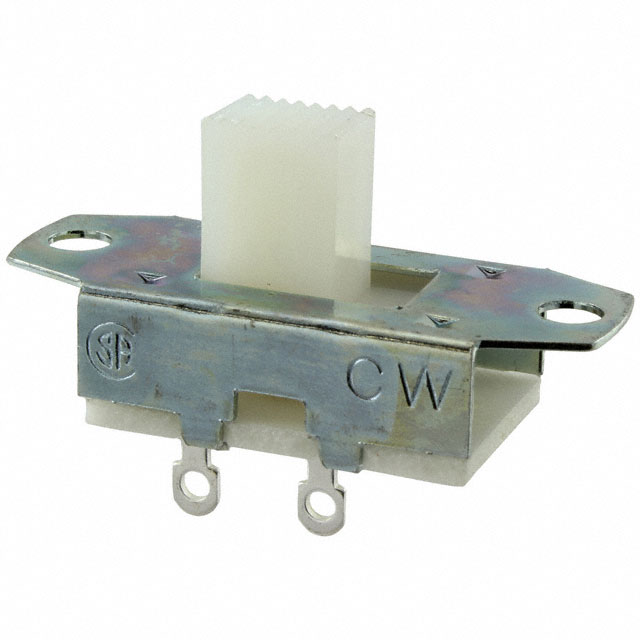

CW Industries GF-1123-0025	10000 Steps	4.01 mm	Nylon 6/6 Polyamide (PA66)	6000 Cycles	8.89 mm	125 V	Standard	SPST	Not Specified	Wire Wrap	On-Off	125 VDC	Panel Mount	Copper	Silver	-10 °C	104 °C	11 A 500 mA	White Actuator

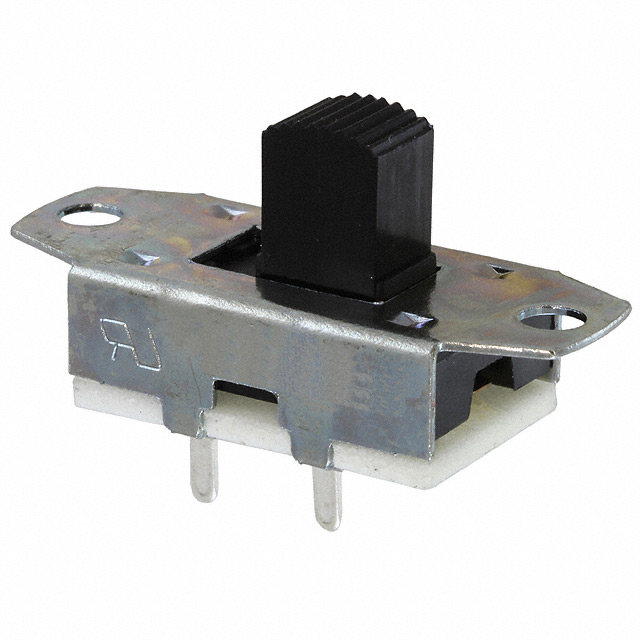

CW Industries GF-1123-1110	10000 Steps	4.01 mm	Nylon 6/6 Polyamide (PA66)	6000 Cycles	8.74 mm	125 V	Standard	SPST	Not Specified	PC Pin	On-Off	125 VDC	Panel Mount	Copper	Silver	-10 °C	104 °C	11 A 500 mA
CW Industries GF-1123-0027	10000 Steps	4.01 mm	Nylon 6/6 Polyamide (PA66)	6000 Cycles	8.89 mm	125 V	Standard	SPST	Not Specified	Wire Wrap	On-Off	125 VDC	Panel Mount	Copper	Silver	-10 °C	104 °C	11 A 500 mA

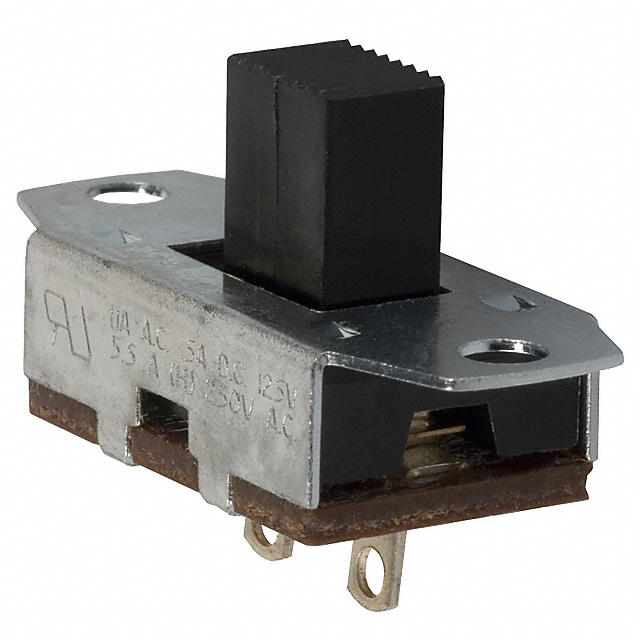

CW Industries GF-1123-0009	10000 Steps	4.01 mm	Nylon 6/6 Polyamide (PA66)	6000 Cycles	8.74 mm	125 V	Standard	SPST	Not Specified	Solder Lug	On-Off	125 VDC	Panel Mount	Copper	Silver	-10 °C	104 °C	11 A 500 mA
