MBR40 Series

Manufacturer: Vishay General Semiconductor - Diodes Division

Catalog

DIODE ARR SCHOTT 15V 20A TO247AC

Part	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Supplier Device Package	Current - Average Rectified (Io) (per Diode)	Voltage - Forward (Vf) (Max) @ If [Max]	Speed	Mounting Type	Technology	Diode Configuration	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If
Vishay General Semiconductor - Diodes Division MBR40L15CW	10 mA	-55 °C	125 °C	TO-247AC	20 A	420 mV	200 mA 500 ns	Through Hole	Schottky	1 Pair Common Cathode	TO-247-3

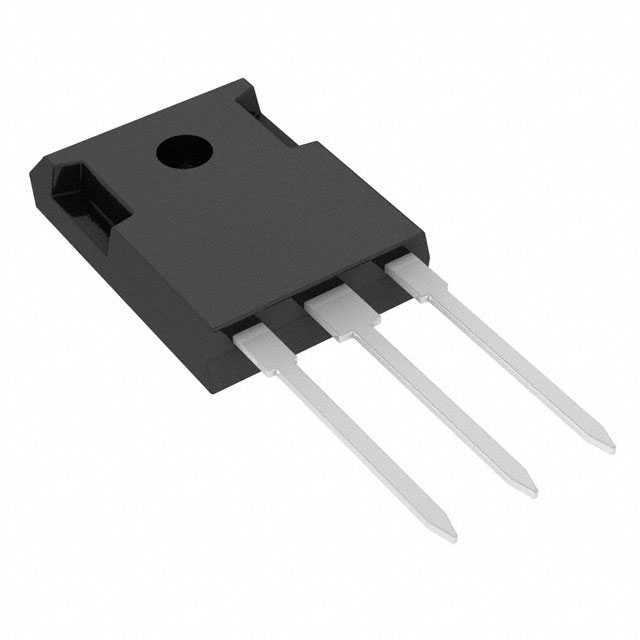

Vishay General Semiconductor - Diodes Division MBR40H45PT-E3/45	150 µA	-65 C	175 ░C	TO-247AD (TO-3P)	40 A	730 mV	200 mA 500 ns	Through Hole	Schottky	1 Pair Common Cathode	SC-65-3 TO-3P-3	45 V
Vishay General Semiconductor - Diodes Division MBR4045WT	1.75 mA	-55 °C	150 °C	TO-247AC	20 A		200 mA 500 ns	Through Hole	Schottky	1 Pair Common Cathode	TO-247-3	45 V	590 mV
Vishay General Semiconductor - Diodes Division MBR4045CT	1 mA	-65 C	150 °C	TO-220-3	20 A		200 mA 500 ns	Through Hole	Schottky	1 Pair Common Cathode	TO-220-3	45 V	600 mV
Vishay General Semiconductor - Diodes Division MBR40H60CT-E3/45	100 µA	-65 C	175 ░C	TO-220-3	20 A		200 mA 500 ns	Through Hole	Schottky	1 Pair Common Cathode	TO-220-3	60 V	680 mV

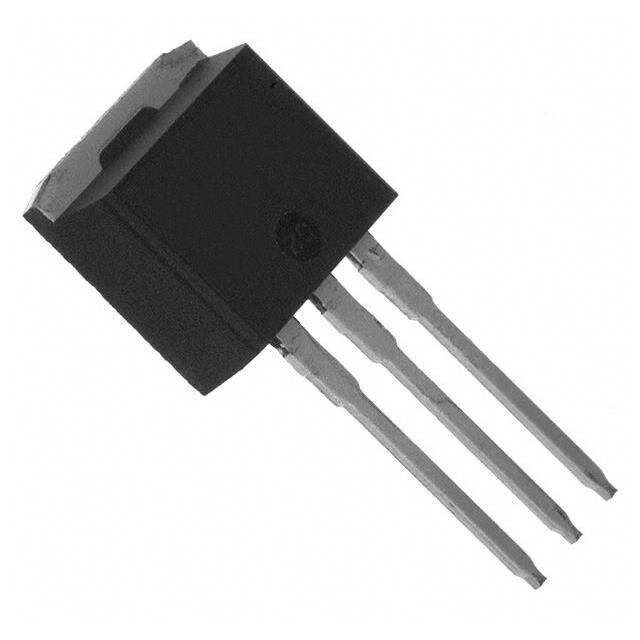

Vishay General Semiconductor - Diodes Division MBR4045CT-1	1 mA	-65 C	150 °C	TO-262-3	20 A		200 mA 500 ns	Through Hole	Schottky	1 Pair Common Cathode	I2PAK TO-262-3 Long Leads TO-262AA	45 V	600 mV
Vishay General Semiconductor - Diodes Division VS-MBR40L15CW-N3	10 mA	-55 °C	125 °C	TO-247AC	20 A	420 mV	200 mA 500 ns	Through Hole	Schottky	1 Pair Common Cathode	TO-247-3
Vishay General Semiconductor - Diodes Division VS-MBR4060WTPBF	1 mA	-55 °C	150 °C	TO-247AC	20 A		200 mA 500 ns	Through Hole	Schottky	1 Pair Common Cathode	TO-247-3	60 V	720 mV
Vishay General Semiconductor - Diodes Division VS-MBR4045CT-1PBF	1 mA	-65 C	150 °C	TO-262-3	20 A		200 mA 500 ns	Through Hole	Schottky	1 Pair Common Cathode	I2PAK TO-262-3 Long Leads TO-262AA	45 V	600 mV
