7H.51.0 Series

Catalog

PTC PANEL HEATER 150W

Part	Voltage - Input [Max]	Voltage - Input [Min]	Specifications	Specifications	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Type

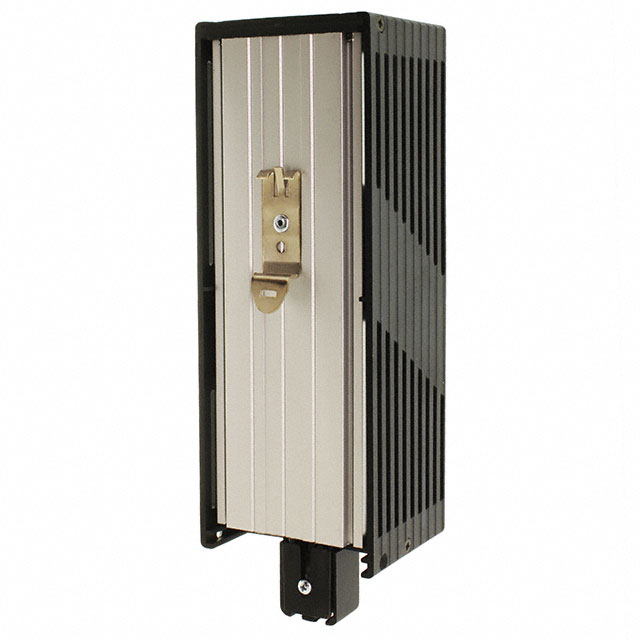

Finder Relays, Inc. 7H.51.0.230.0150	230 VAC	110 VAC	150 W	Heater	2.48 in	63 mm	70 mm	2.76 "	218 mm	8.58 in	Heating Unit

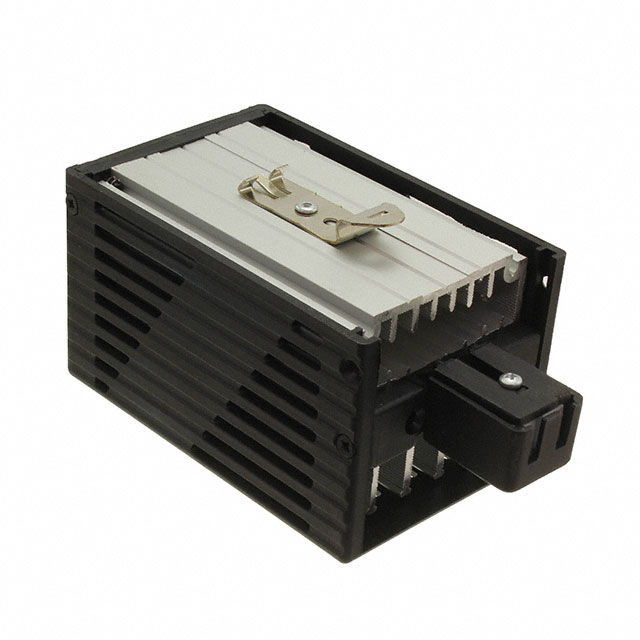

Finder Relays, Inc. 7H.51.0.230.0100	230 VAC	110 VAC	100 W	Heater	2.48 in	63 mm	70 mm	2.76 "	138 mm	5.43 in	Heating Unit
Finder Relays, Inc. 7H.51.0.230.0025	230 VAC	110 VAC	25 W	Heater	1.61 in	41 mm	41 mm	1.61 "	125 mm	4.92 in	Heating Unit

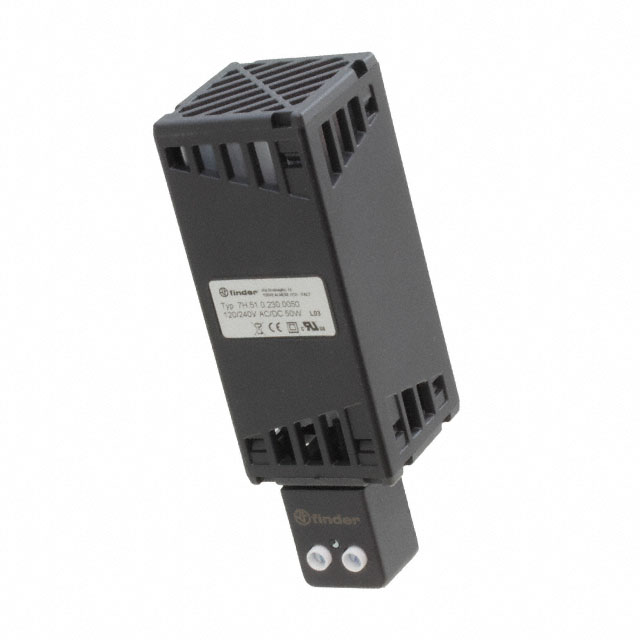

Finder Relays, Inc. 7H.51.0.230.0050	230 VAC	110 VAC	50 W	Heater	1.61 in	41 mm	41 mm	1.61 "	125 mm	4.92 in	Heating Unit
