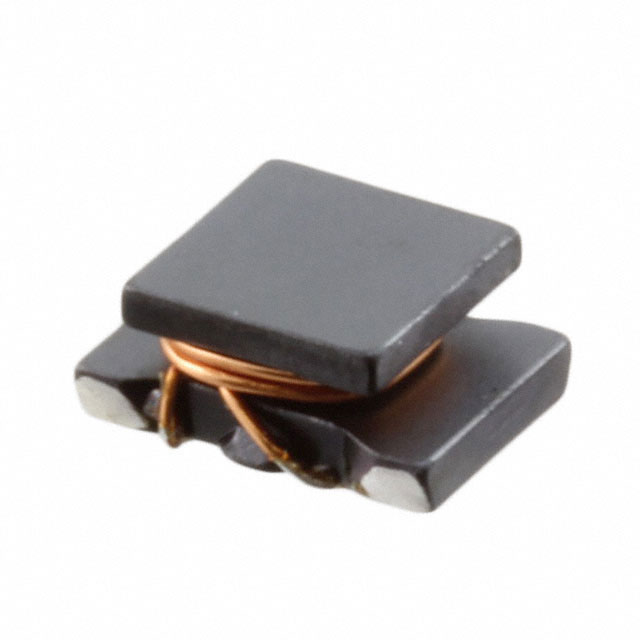

DLW5ATH Series

Catalog

CMC 4A 2LN 45 OHM SMD AEC-Q200

Part	Impedance @ Frequency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Voltage Rating - DC	Ratings	Current Rating (Max) [Max]	Filter Type	Height (Max) [z]	Height (Max) [z]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Lines	DC Resistance (DCR) (Max) [Max]	Mounting Type	DC Resistance (DCR) (Max)
Murata Electronics DLW5ATH450TQ2K	45 Ohms	0.197 in	0.142 "	5 mm	3.6 mm	Horizontal 4 PC Pad	50 VDC	AEC-Q200	4 A	Power Signal Line	0.093 in	2.35 mm	125 °C	-40 C	2	13 mOhm	Surface Mount
Murata Electronics DLW5ATH401TQ2K	400 Ohms	0.197 in	0.142 "	5 mm	3.6 mm	Horizontal 4 PC Pad	50 VDC	AEC-Q200	2 A	Power Signal Line	0.093 in	2.35 mm	125 °C	-40 C	2		Surface Mount	34 mOhm
Murata Electronics DLW5ATH111TQ2K	110 Ohms	0.197 in	0.142 "	5 mm	3.6 mm	Horizontal 4 PC Pad	50 VDC	AEC-Q200	3 A	Power Signal Line	0.093 in	2.35 mm	125 °C	-40 C	2	20 mOhm	Surface Mount
Murata Electronics DLW5ATH500MQ2K	50 Ohms	0.197 in	0.142 "	5 mm	3.6 mm	Horizontal 4 PC Pad	50 VDC	AEC-Q200	4 A	Power Signal Line	0.093 in	2.35 mm	125 °C	-40 C	2	13 mOhm	Surface Mount
Murata Electronics DLW5ATH450TQ2L	45 Ohms	0.197 in	0.142 "	5 mm	3.6 mm	Horizontal 4 PC Pad	50 VDC	AEC-Q200	4 A	Power Signal Line	0.093 in	2.35 mm	125 °C	-40 C	2	13 mOhm	Surface Mount
Murata Electronics DLW5ATH331MQ2L	330 Ohms	0.197 in	0.142 "	5 mm	3.6 mm	Horizontal 4 PC Pad	50 VDC	AEC-Q200	2.5 A	Power Signal Line	0.093 in	2.35 mm	125 °C	-40 C	2	27 mOhm	Surface Mount
Murata Electronics DLW5ATH501MQ2L	500 Ohms	0.197 in	0.142 "	5 mm	3.6 mm	Horizontal 4 PC Pad	50 VDC	AEC-Q200	2 A	Power Signal Line	0.093 in	2.35 mm	125 °C	-40 C	2		Surface Mount	34 mOhm
Murata Electronics DLW5ATH331MQ2K	330 Ohms	0.197 in	0.142 "	5 mm	3.6 mm	Horizontal 4 PC Pad	50 VDC	AEC-Q200	2.5 A	Power Signal Line	0.093 in	2.35 mm	125 °C	-40 C	2	27 mOhm	Surface Mount
Murata Electronics DLW5ATH151MQ2K	150 Ohms	0.197 in	0.142 "	5 mm	3.6 mm	Horizontal 4 PC Pad	50 VDC	AEC-Q200	3 A	Power Signal Line	0.093 in	2.35 mm	125 °C	-40 C	2	20 mOhm	Surface Mount
