ATS-06D Series

Manufacturer: Advanced Thermal Solutions Inc.

Catalog

Catalog

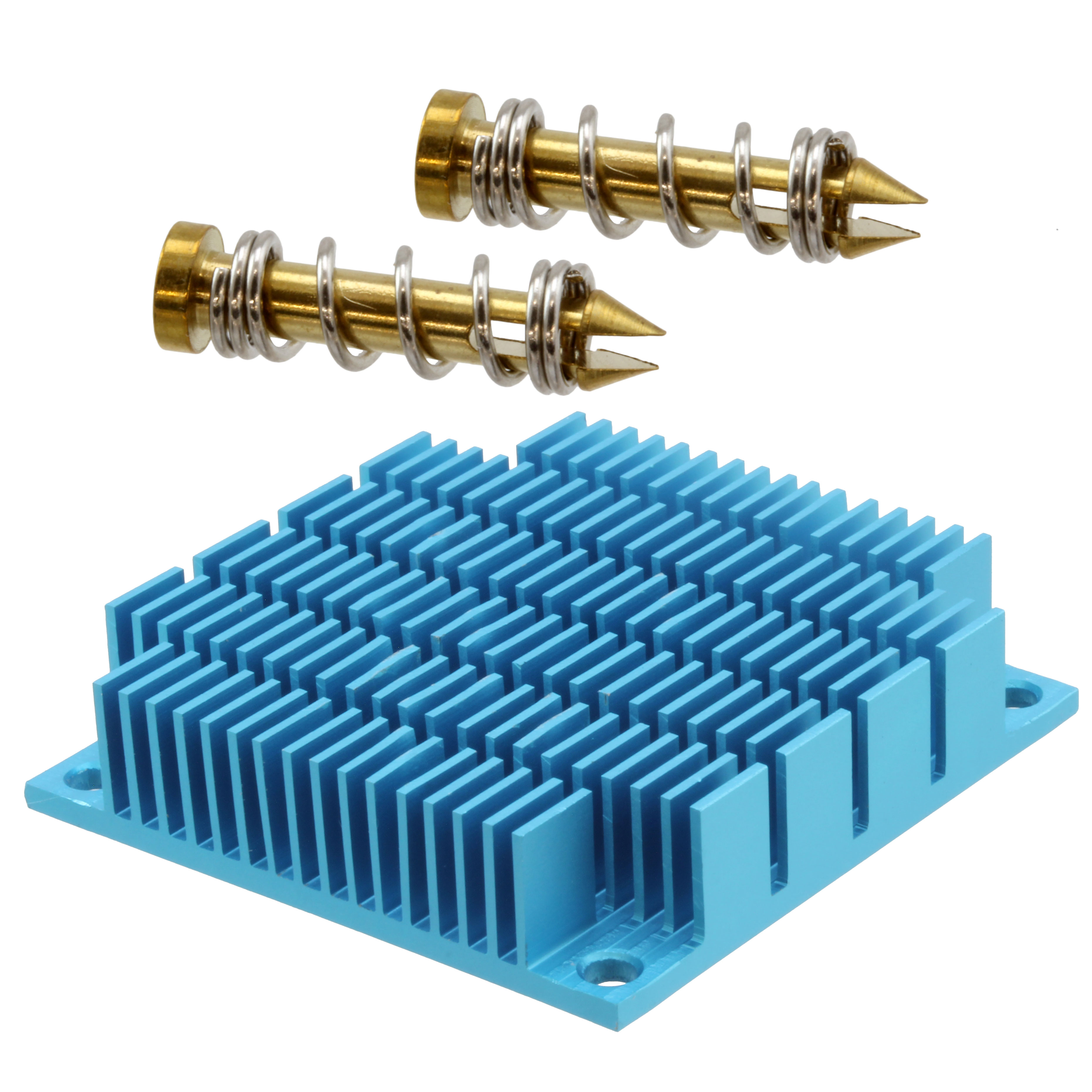

HEATSINK 54X54X25MM XCUT

...

Part	Material Finish	Width [x]	Width [x]	Attachment Method	Fin Height	Fin Height	Shape	Thermal Resistance @ Forced Air Flow	Type	Package Cooled	Material	Length	Length	Fin Height [custom]	Fin Height [custom]	Width [y]	Width [y]	Shape [custom]	Shape [custom]	Length	Length [x]	Length [x]	Fin Height [z]	Fin Height [z]
Advanced Thermal Solutions Inc. ATS-06D-20-C1-R0	Blue Anodized	54 mm	2.126 in	Push Pin	25 mm	0.984 in	Fins Square	7.13 °C/W	Top Mount	ASIC BGA CPU LGA	Aluminum	2.126 in	54 mm
Advanced Thermal Solutions Inc. ATS-06D-17-C1-R0	Blue Anodized	54 mm	2.126 in	Push Pin	12.7 mm	0.5 "	Fins Square	15.42 °C/W	Top Mount	ASIC BGA CPU LGA	Aluminum	2.126 in	54 mm
Advanced Thermal Solutions Inc. ATS-06D-41-C2-R0	Blue Anodized			Push Pin				10.03 °C/W	Top Mount	ASIC BGA CPU LGA	Aluminum		2.28 in	17.78 mm	0.7 in	2.4 "	60.96 mm	Rectangular	Fins	57.9 mm
Advanced Thermal Solutions Inc. ATS-06D-195-C1-R0	Blue Anodized			Push Pin	12 mm	0.472 in	Fins Square	10.88 °C/W	Top Mount	ASIC BGA CPU LGA	Aluminum					1.575 in	40 mm
Advanced Thermal Solutions Inc. ATS-06D-84-C3-R0	Blue Anodized	30 mm	1.181 in	Push Pin			Fins Square	7.19 °C/W	Top Mount	ASIC BGA CPU LGA	Aluminum	1.181 in	0.03 m	35 mm	1.378 in
Advanced Thermal Solutions Inc. ATS-06D-136-C3-R0	Blue Anodized	70 mm	2.756 "	Push Pin	25 mm	0.984 in	Fins Square	2.22 °C/W	Top Mount	ASIC BGA CPU LGA	Aluminum										2.756 in	70 mm
Advanced Thermal Solutions Inc. ATS-06D-45-C1-R0	Blue Anodized	25 mm	0.984 "	Push Pin			Fins Square	14.95 °C/W	Top Mount	ASIC BGA CPU LGA	Aluminum		25 mm								0.984 in		20 mm	0.79 in
Advanced Thermal Solutions Inc. ATS-06D-103-C3-R1	Blue Anodized			Push Pin	9.5 mm	0.374 in	Fins Square	27.78 °C/W	Top Mount	ASIC BGA CPU LGA	Aluminum					1.575 in	40 mm
Advanced Thermal Solutions Inc. ATS-06D-146-C2-R0	Blue Anodized	30 mm	1.181 in	Push Pin			Fins Square		Top Mount	ASIC BGA CPU LGA	Aluminum	1.181 in	0.03 m	35 mm	1.378 in
Advanced Thermal Solutions Inc. ATS-06D-111-C1-R1	Blue Anodized			Push Pin	9.5 mm	0.374 in	Fins Square	26.72 °C/W	Top Mount	ASIC BGA CPU LGA	Aluminum					2.362 in	60 mm				2.362 in	60 mm
