NPPN072 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HDR 14POS 0.079 GOLD PCB

Part	Contact Shape	Insulation Material	Contact Material	Contact Finish Thickness - Post	Contact Finish - Post	Fastening Type	Number of Positions	Contact Finish Thickness - Mating	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Connector Type	Contact Type	Termination	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Insulation Height	Insulation Height	Insulation Color	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Insulation Height	Features	Contact Length - Post [custom]
Sullins Connector Solutions NPPN072AFCN-RC	Square	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Flash	Gold	Push-Pull	14	Flash	2	0.079 "	2 mm	Header	Female Socket	Solder	Gold	2 mm	0.079 in	All	Through Hole	-40 C	105 ░C	UL94 V-0	4.3 mm	0.169 "	Black	2.4 mm	0.094 in

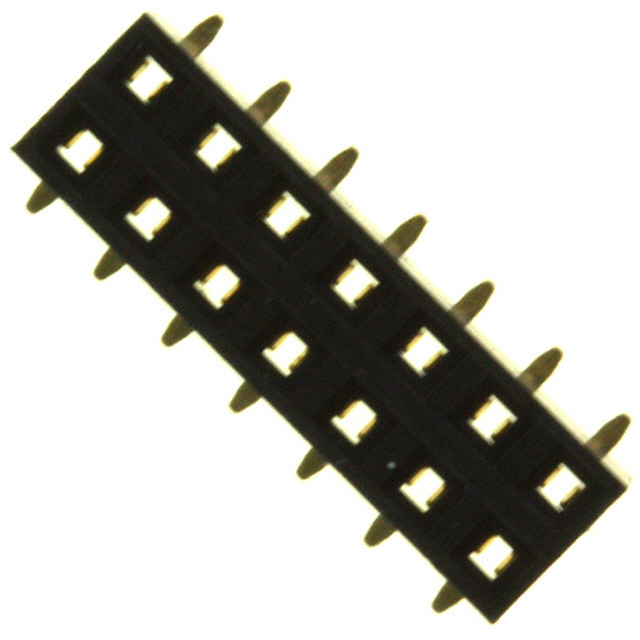

Sullins Connector Solutions NPPN072FFKS-RC	Square	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Flash	Gold	Push-Pull	14	Flash	2	0.079 "	2 mm	Header	Female Socket	Solder	Gold	2 mm	0.079 in	All	Surface Mount	-40 C	105 ░C	UL94 V-0	0.173 in		Black			2 A	4.4 mm

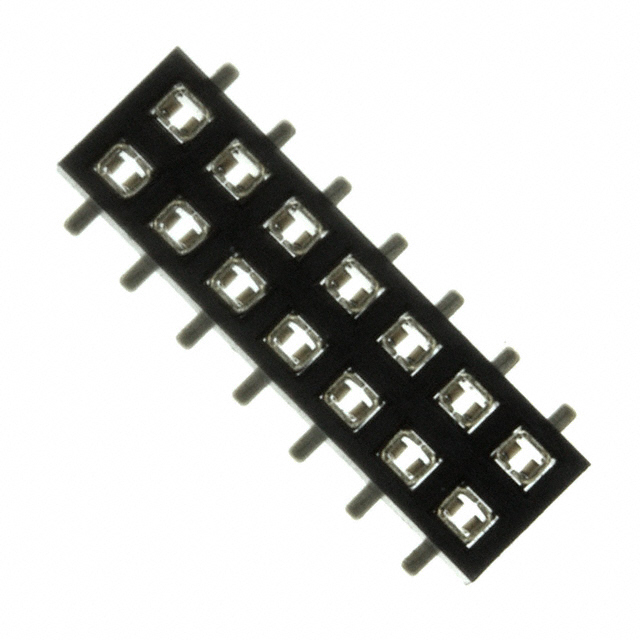

Sullins Connector Solutions NPPN072GHNP-RC	Square	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Flash	Gold	Push-Pull	14	Flash	2	0.079 "	2 mm	Header Bottom Entry	Female Socket	Solder	Gold	2 mm	0.079 in	All	Surface Mount	-40 C	105 ░C	UL94 V-0			Black					Board Guide
Sullins Connector Solutions NPPN072AFEN-RC	Square	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Flash	Gold	Push-Pull	14	Flash	2	0.079 "	2 mm	Header	Female Socket	Solder	Gold	2 mm	0.079 in	All	Through Hole	-40 C	105 ░C	UL94 V-0	4.3 mm	0.169 "	Black	2.79 mm					0.11 in
