PT5024 Series

Catalog

DC DC CONVERTER -12V

Part	Applications	Number of Outputs	Efficiency	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Mounting Type	Current - Output (Max) [Max]	Package / Case	Type	Voltage - Input (Max) [Max]
Texas Instruments PT5024N	ITE (Commercial)	1	75 %	-12 V	85 °C	-20 C	4.75 V	Through Hole	500 mA	3-SIP Module	Non-Isolated PoL Module	7 V
Texas Instruments PT5024A	ITE (Commercial)	1	75 %	-12 V	85 °C	-20 C	4.75 V	Through Hole Right Angle	500 mA	3-SIP Module	Non-Isolated PoL Module	7 V
Texas Instruments PT5024L	ITE (Commercial)	1	75 %	-12 V	85 °C	-20 C	4.75 V	Surface Mount	500 mA	3-SMD Module	Non-Isolated PoL Module	7 V

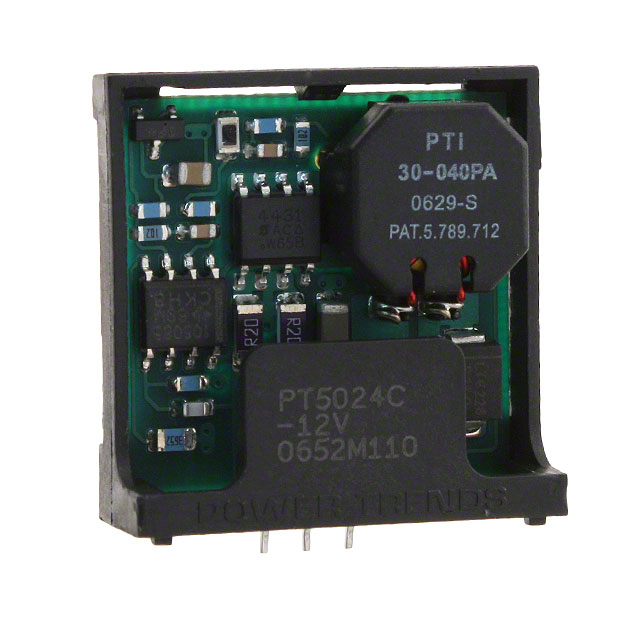

Texas Instruments PT5024C	ITE (Commercial)	1	75 %	-12 V	85 °C	-20 C	4.75 V	Surface Mount	500 mA	3-SMD Module	Non-Isolated PoL Module	7 V
